DBA Front XP Brake Kit for Toyota GT86 / GR86 / Subaru BRZ 2012+ DBA4650S-1491XP

DBA4650S-1491XP - Brake Kit (2x DBA 4650S + DB1491XP)

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 set per axle

Technical Information

DISCS

Diameter [mm]: 294

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 58

Minimum Thickness [mm]: 22

Thickness [mm]: 24

Height [mm]: 57

Pitch Circle [mm]: 100

Stage: Stage 4

ECE R90 number: E11*90R02/06*60536*00

Total Weight [kg]: 7.79

PADS

Width [mm]: 137.1

Height [mm]: 56.8

Pad thickness [mm]: 16.8

FMSI: 7830-D929

OEM: 26296-FE020

Axle: Front

ECE R90 Number: E11 R90-02A01584/53213

Total Weight [kg]: 1.86

CONFIRMED APPLICATIONS

SUBARU    BRZ   2012-2022 2.0 200BHP (2012-2022)      Front

SUBARU    BRZ   2012-2022 2.0 200BHP (2012-2022)      Front

SUBARU    Forester    2003-2004 2.5 (2003-2004) Front

SUBARU    Forester    2004-2008 2.5 (2004-2008) Front

SUBARU    Forester    2004-2008 2.5 Turbo (2004-2008) Front

SUBARU    Forester    2008-2013 2.0 TD (2008-2013)     Front

SUBARU    Forester    2013-2018 2.0 150BHP (2013-2018)      Front

SUBARU    Forester    2013-2018 2.0 TD 147BHP (2013-2018) Front

SUBARU    Forester SG5      2002-2003 2.0 Turbo (2002-2003) Front

SUBARU    Forester SG5      2003-2008 2.0 Turbo (2003-2008) Front

SUBARU    Impreza    2007-2008 2.5 Turbo WRX (2007-2008) Front

SUBARU    Impreza    2008-2012 2.5 Turbo WRX-S (2008-2012)      Front

SUBARU    Impreza    2009-2011 2.0 TD (2009-2011)     Front

SUBARU    Impreza    2011-2012 2.0 TD (2011-2012)     Front

SUBARU    Legacy       2003-2009 2.5 165BHP (2003-2009)      Front

SUBARU    Legacy       2003-2009 2.5 165BHP (2003-2009)      Front

SUBARU    Legacy       2007-2009 2.5 173BHP (2007-2009)      Front

SUBARU    Legacy       2009-2014 2.5 167BHP (2009-2014)      Front

SUBARU    Legacy BLD         2008-2010 2.0 TD 150BHP (2008-2010) Front

SUBARU    Legacy BPD        2008-2010 2.0 TD 150BHP (2008-2010) Front

SUBARU    Legacy BRD        2009-2014 2.0 TD 150BHP (2009-2014) Front

SUBARU    Outback    2003-2005 2.5 163BHP (2003-2005)      Front

SUBARU    Outback    2003-2010 3.0 245BHP (2003-2010)      Front

SUBARU    Outback    2006-2009 2.5 173BHP (2006-2009)      Front

SUBARU    Outback    2008-2010 2.0 TD 150BHP (2008-2010) Front

SUBARU    Outback    2009-2014 2.0 150BHP (2009-2014)      Front

SUBARU    Outback    2009-2014 2.0 TD 150BHP (2009-2014) Front

SUBARU    Outback    2009-2014 2.5 165BHP (2009-2014)      Front

SUBARU    XV     2012-2017 1.6 (2012-2017) Front

SUBARU    XV     2012-2017 2.0 (2012-2017) Front

SUBARU    XV     2012-2017 2.0 TD (2012-2017)     Front

TOYOTA    GT86 2012-2022 2.0 200BHP (2012-2022)      Front

TOYOTA    GT86 2012-2022 2.0 200BHP (2012-2022)      Front

Note: These discs fit all GT86 except the Performance Pack Edition with Brembo Brakes and a few rare 2016 Primo models which had 277mm front and 286mm solid rear discs. If this affects you please check your discs sizes.

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

One combo - one manufacturer = no warranty issues

Contents of Kit DBA4650S-1491XP

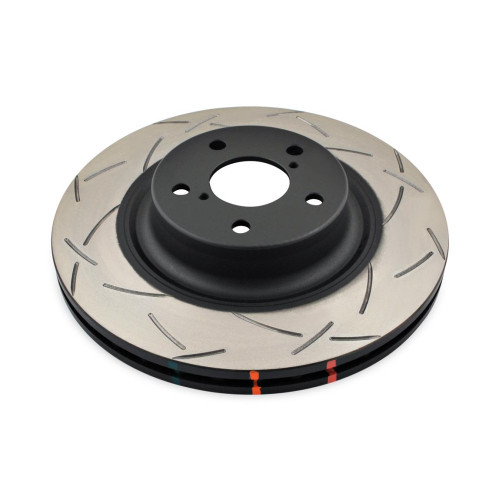

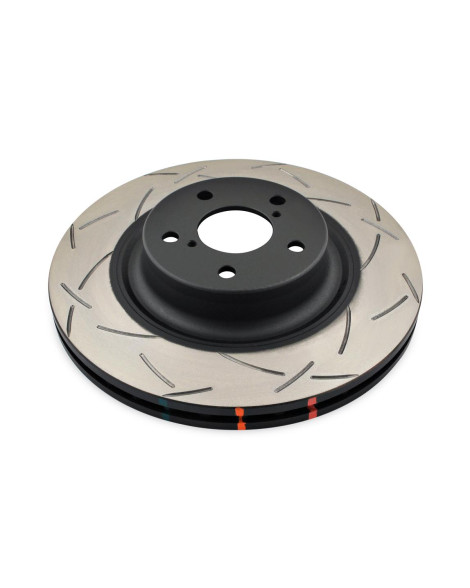

DBA4650S - 4000 series - T3

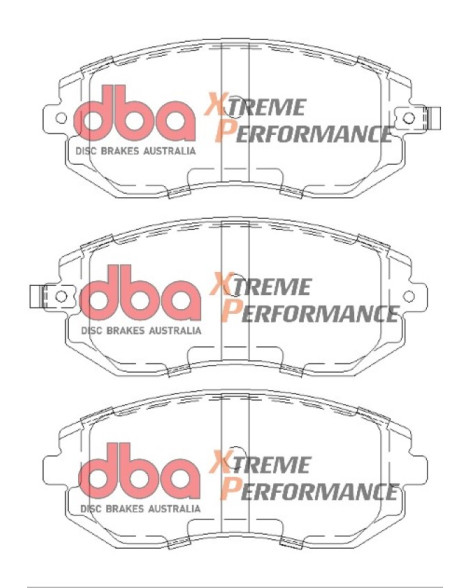

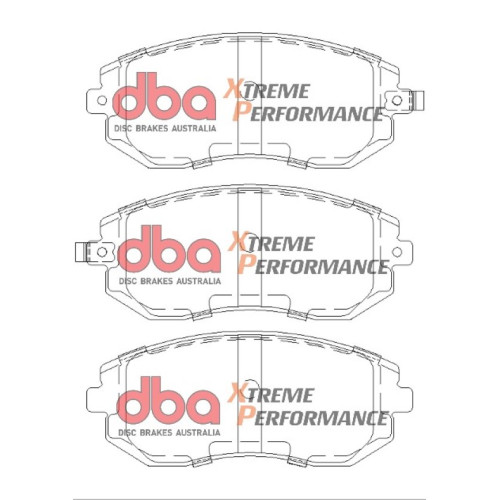

DB1491XP - Brake Pads Xtreme Performance ECE R90 certified | Front Axle

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
