DBA Rear XP Brake Kit for Toyota GT86 / GR86 / Subaru BRZ 2012+ DBA42663S-10-1789XP

DOES NOT FIT CARS WITH AKEBONO REAR CALIPERS.

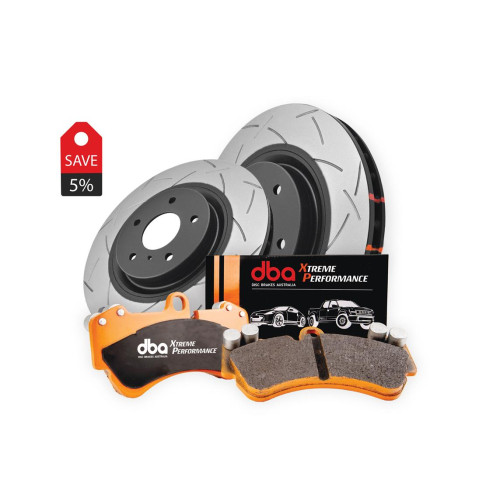

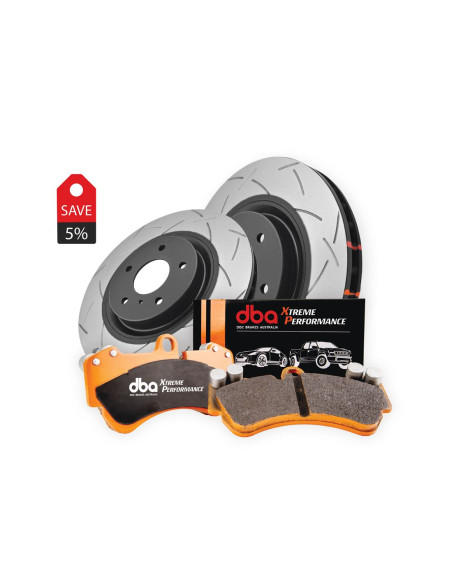

DBA42663S-10-1789XP - Brake Kit (2x DBA 42663S-10 + DB1789XP)

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 set per axle

Technical Information

DISCS

Diameter [mm]: 290

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 58

Minimum Thickness [mm]: 16

Thickness [mm]: 18

Height [mm]: 64

Stage: Stage 4

Total Weight [kg]: 6.38

PADS

Width [mm]: 110.4

Height [mm]: 40

Pad thickness [mm]: 16

FMSI: 8231-D1124

OEM: 26696XA000

Axle: Rear

Total Weight [kg]: 0.93

CONFIRMED APPLICATIONS

SUBARU    BRZ   2012-2022 2.0 200BHP (2012-2022)      Rear

TOYOTA    GT86 2012-2022 2.0 200BHP (2012-2022)      Rear

Note: These discs fit all GT86 except the Performance Pack Edition with Brembo Brakes and a few rare 2016 Primo models which had 277mm front and 286mm solid rear discs. If this affects you please check your discs sizes.

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

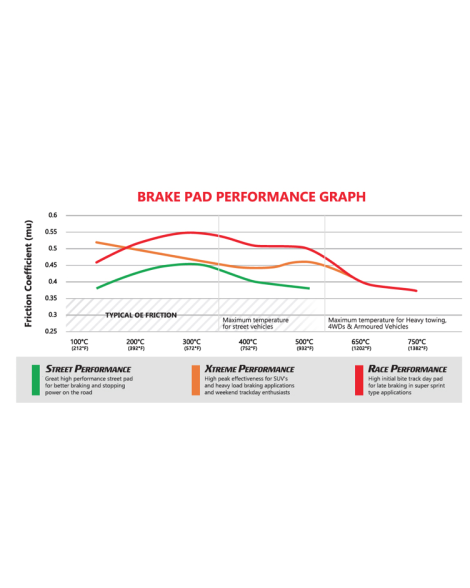

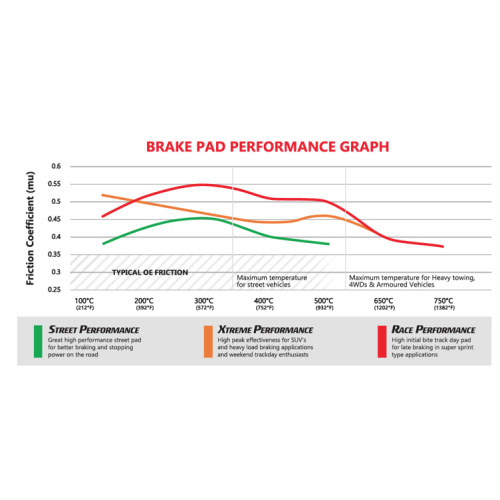

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

One combo - one manufacturer = no warranty issues

Contents of Kit DBA42663S-10-1789XP

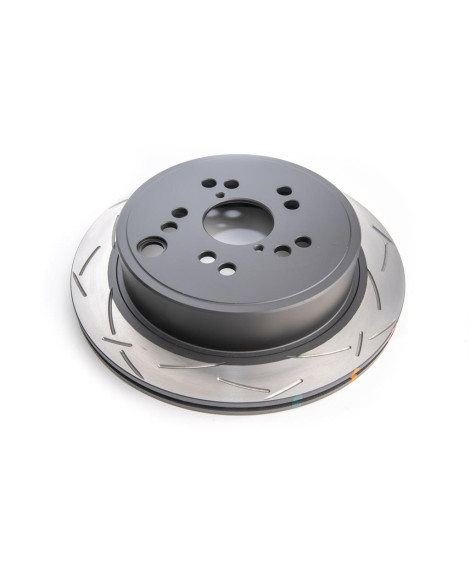

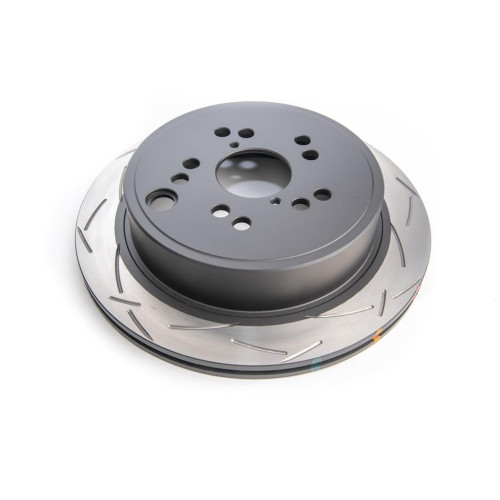

DBA42663S-10 - 4000 series - T3

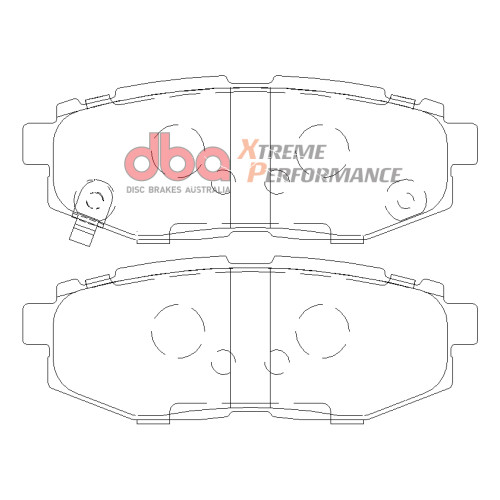

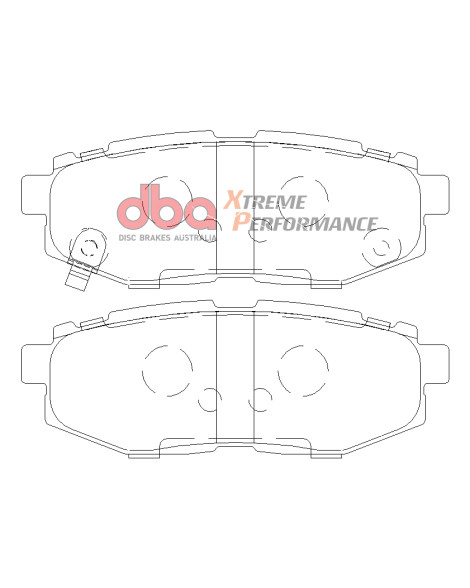

DB1789XP - Brake Pads Xtreme Performance | Rear Axle
