DBA Front XP Brake Kit for Subaru Impreza WRX/STI 02-17 / Forester SG STI 04-08 DBA4654S-10-1678XP

DBA4654S-10-1678XP - Brake Kit (2x DBA 4654S-10 + DB1678XP)

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 set per axle

Technical Information

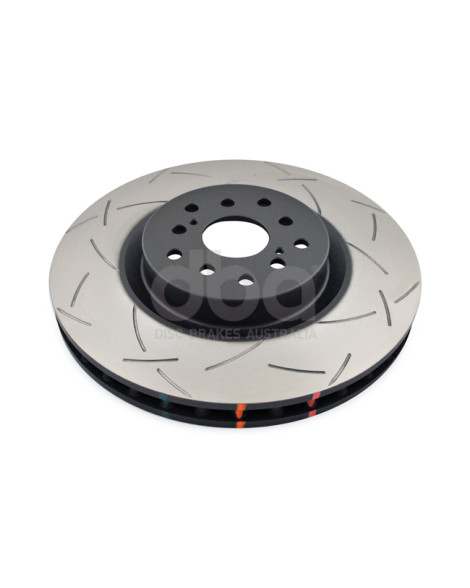

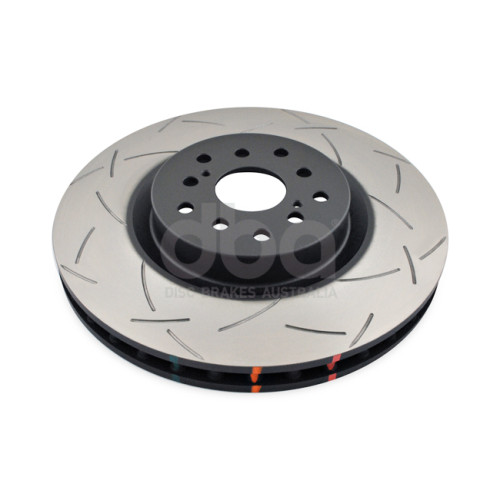

DISCS

Recommended for: Weekend Warriors, Motorsport

Diameter [mm]: 326

Disc Vent: Kangaroo Paw

Number of Holes: 10

Inner Diameter [mm]: 58

Minimum Thickness [mm]: 28

Thickness [mm]: 30

Height [mm]: 53

Pitch Circle [mm]: 100 & 114.3

Stage: Stage 4

ECE R90 number: E11*90R02/06*60533*00

Total Weight [kg]: 10.2

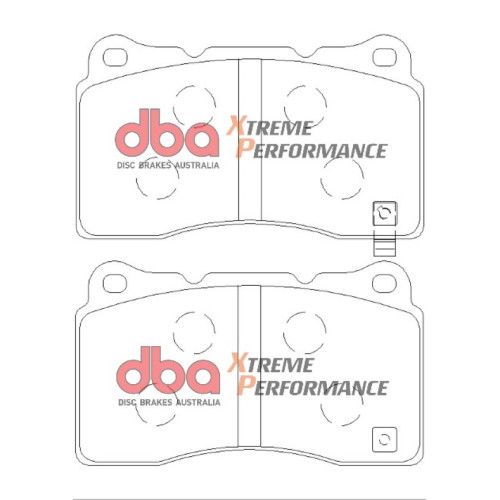

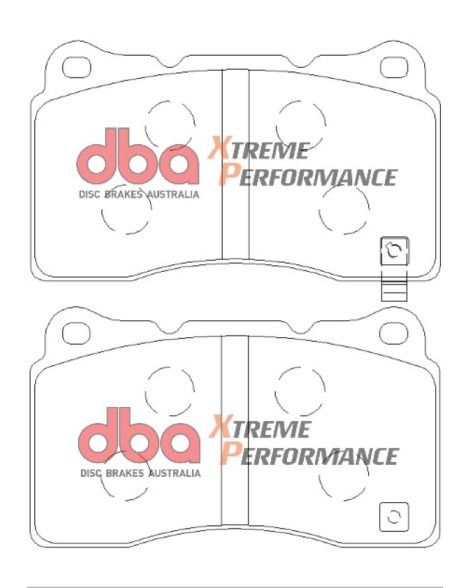

BRAKE PADS

Width [mm]: 131.8

Height [mm]: 77.3

Pad thickness [mm]: 14

FMSI: 7902-D1001

OEM: 26296FE100

Axle: Front

ECE R90 Number: E11 R90-02A01584/49928

Total Weight [kg]: 2.28

CONFIRMED APPLICATIONS

SUBARU    BRZ   2013-         2.0 tS 200BHP (2013-) Front

SUBARU    Forester    2004-2008 2.5 Turbo STi 320BHP (2004-2008)       Front

SUBARU    Impreza    2002-2005 2.0 Turbo WRX STi 100 pcd (2002-2005)          Front

SUBARU    Impreza    2005-2006 2.0 Turbo WRX STi 114 pcd (2005-2006)          Front

SUBARU    Impreza    2006-2007 2.5 Turbo WRX STi (2006-2007)    Front

SUBARU    Impreza    2007-2012 2.5 Turbo WRX STi (2007-2012)    Front

SUBARU    Impreza RB320  2006-2007 2.5 Turbo (2006-2007) Front

SUBARU    WRX STi     2012-2017 2.5 Turbo 300BHP (2012-2017)    Front

TOYOTA    GT86 2018-         2.0 TRD 200BHP (2018-)      Front

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

One combo - one manufacturer = no warranty issues

Contents of Kit DBA4654S-10-1678XP

DBA4654S-10 - 4000 series - T3

DB1678XP - Brake Pads Xtreme Performance ECE R90 certified | Front Axle

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
