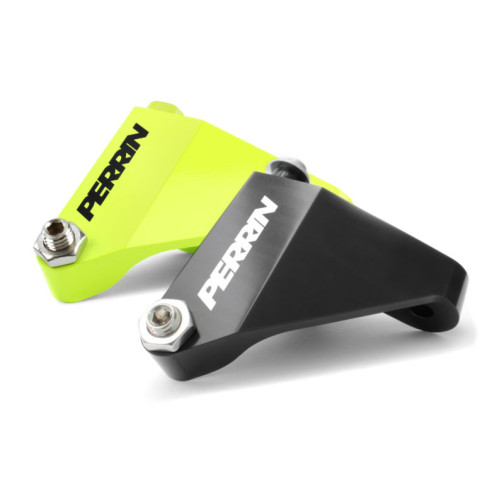

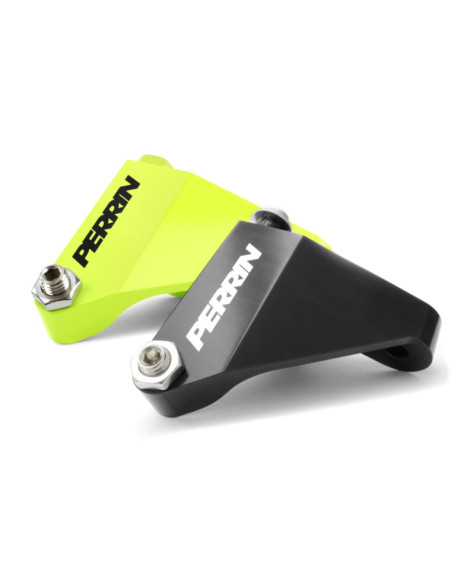

PERRIN PERFORMANCE MASTER CYLINDER SUPPORT FOR 2015+ WRX/STI

The PERRIN Master Cylinder Brace prevents unwanted movement of the master cylinder, allowing for increased brake pedal stiffness and response.

REDUCE FLEX

Your brake pedal is connected to the thin sheet metal firewall which flexes as you apply the brakes. The firewall is not stiff enough to deal with the constant and repeated forces while applying the brakes. The PERRIN Master Cylinder Brace creates a bridge between the firewall, master cylinder, and shock tower, significantly reducing flex in the firewall while braking.

STIFFEN BRAKE PEDAL FEEL

The PERRIN Master Cylinder Brace significantly reduces flex at the firewall, so you get solid brake pedal feel with every application of the brakes. This is very noticeable while under heavy braking and even slowing for a stop sign. The difference can immediately be felt after installation.

CONSTRUCTION

When possible we try to design Master Cylinder Braces in one piece to improve rigidity. The PERRIN Master Cylinder Brace for 2015+ WRX/STI are CNC machined from a large piece of 6061-T6 billet aluminum for extreme stiffness. With stainless steel hardware and an anodized finish, the PERRIN Master Cylinder Brace will look great and last the life of the car, even in the harshest conditions.

DESIGN

The PERRIN Master Cylinder Brace is design to attach strategically to multiple points on the shock tower. This helps reduce flex in the brake master cylider by creating a solid connection between it and the chassis. To further aid in stiffening or tightening up this connection, included is an adjustable screw that allows tension to be preloaded on the master cylinder.

FINISH

Anodized black and neon yellow with a vivid PERRIN logo, the PERRIN Master Cylinder Brace for 2015+ WRX/STI are guaranteed to continue looking great while being used.

IN THE BOX

PSP-BRK-403

(1) PERRIN Master Cylinder Brace

(3) M6 Socket cap screw

(1) M8 Socket cap screw

(1) M8 Fender washer

(1) M12 Socket set cup

(1) M12 Jam nut

(1) M6 Short arm hex key

(1) M5 Short arm hex key

Warranty, instructions, stickers

COMPATIBILITY

PSP-BRK-403

2015-2020 STI - Yes

2015-2020 WRX - Yes

2013-2017 Crosstrek - Yes

2018 Crosstrek - No

2014-2018 Forester - Yes

Right Hand Drive – No
