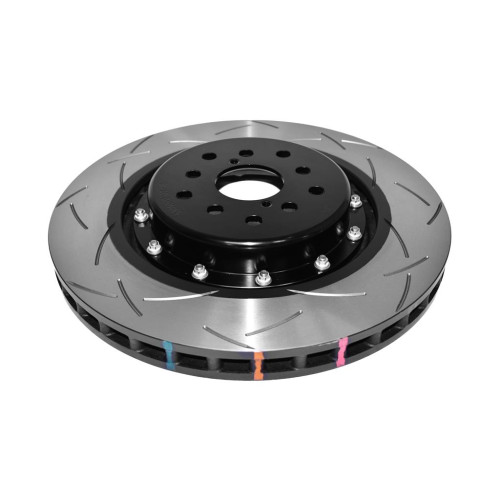

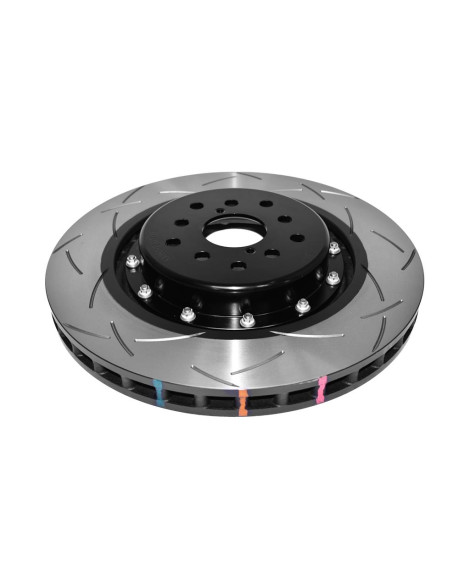

DBA Front 5000 Series 2-Piece Brake Discs Grooved for Subaru Impreza WRX/STI 2.5L 17-21 DBA53050BLKS-10

DBA53050BLKS-10 - 5000 series - T3 Slotted Black Hat

Ideal for high-performance applications

2-piece performance rotor with patented T3 slot design

Hat made from extra lightweight 6061 T6 aircraft aluminium

High machining quality & high carbon alloyed iron

Technical Information

Diameter [mm]: 340

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 58.02

Minimum Thickness [mm]: 28

Thickness [mm]: 30

Height [mm]: 53.00

Stage: Stage 5

ECE R90 number: E11*90R02/06*60512*00

Total Weight [kg]: 9.1

Confirmed Applications

SUBARU WRX Sti 2017-2021 2.5 Turbo 300BHP (2017-2021) Front Brake Caliper: Brembo

"T3 Slot 48 precision CNC machined slots"

Tri-Symmetrical curve slots dampens the vibration harmonics or noise

A quieter, responsive and smoother brake pedal feel

Increased number of out-gassing exit points for brake pad friction gasses to escape through

Increases the consistency and effectiveness of every brake stop

Universal slot design

Eliminates the need for left and right discs

Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Increased surface area resulting in greater heat dissipation

Minimises brake fade and increases braking effectiveness

Increased surface area resulting in greater heat dissipation

Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

DBA_XG150

XG150 High Carbon Alloyed Iron

An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time

Minimises warping and cracking and prolongs the service life of the rotor

Thermal Stability Profiling

Special formulation designed to respond to DBA’s TSP process

Minimises warping and cracking and prolongs the service life of the rotor

Thermographic Temperature Monitoring

Heat paint markings change colour at specific temperature thresholds

Offers the driver a clear indication of peak braking temperatures

When temperature thresholds are exceeded paint markings will permanently change colours

Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims

Paint protection on non-friction areas

Reduces corrosion

Stops any unsightly rust formation

Enhances appearance

Adds value to the product
