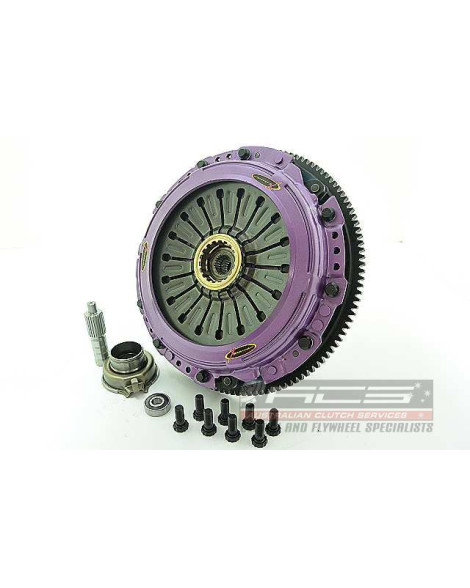

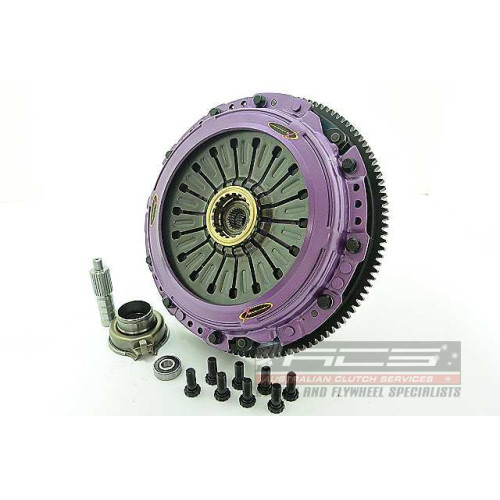

Xtreme Organic Twin Plate Clutch Kit 1020ft/lbs for Subaru Impreza WRX/STI 2000-2021 6-Speed KSU23531-2G

Specifications

Flywheel Step (mm) -19.5

Clutch Disc Diameter (mm) 230

Clutch Disc Spline Count 24

Clutch Disc Spline Diameter (mm) 25.2

Disc Type Solid

Friction Material Organic

Multiplate Twin

Recommended Use Performance Street

Torque (Nm) Inc FOS 1380

Torque (ftlbs) Inc FOS 1020

Spigot Bush/Bearing Included Yes

Aligning Tool Included Yes

Flywheel Included Single Mass

Flywheel Bolts Included Yes

Pressure Plate Bolts Included Yes

Spline Grease Included Yes

Transport Weight (kg) 18.0

Applications

SUBARU Impreza 1998.06-2000.12 2.0 Turbo GT AWD (GC8) EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12)

SUBARU Impreza 1998.06-2000.12 2.0 Turbo GT AWD (GF8) EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12)

SUBARU Impreza 1998.09-2000.09 2.0 AWD (GC8) EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09)

SUBARU Impreza 2000.12-2005.12 2.0 Turbo AWD (GGA) EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12)

SUBARU Impreza 2000.12-2005.12 2.0 WRX Turbo AWD (GDA) 6 speed EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12)

SUBARU Impreza 2001.09-2005.12 2.0 WRX AWD (GGA) EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12)

SUBARU Impreza 2001.11-2005.07 2.0 WRX STi AWD (GDB) EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07)

SUBARU Impreza 2002.12-2006.09 2.0 WRX Turbo AWD (GGA) EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09)

SUBARU Impreza 2004.02-2005.07 2.0 WRX STi AWD EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07)

SUBARU Impreza 2005.09-2007.12 2.5 WRX STi AWD (GDF) EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12)

SUBARU Impreza 2005.09-2007.12 2.5 i WRX STI AWD EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12)

SUBARU Impreza 2005.10-2007.03 2.0 AWD (GDB) EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03)

SUBARU Impreza 2005.10-2007.03 2.5 AWD EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03)

SUBARU Impreza 2005.10-2007.03 2.5 AWD (GDF) EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03)

SUBARU Impreza 2008.01-2013.08 2.5 WRX STI AWD (GRF) EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08)

SUBARU Impreza 2009.05-2010.12 2.5 WRX STI 330S AWD EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12)

SUBARU Impreza 2010-2014 2.5 WRX STI AWD (GVF) EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014)

SUBARU Impreza 2010.04-2013.08 2.5 STI CS400 AWD (GRF) EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08)

SUBARU WRX sedan 2014.06- STi 2.5 AWD EJ257 2457 Petrol 221 kW 301 BHP (2014.06 -)

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

Torque capacity 1200Nm

Kit contains everything you need for a successful installation + accessories

Push type billet alloy cover Low pedal effort

4140 Chromoly pressure & intermediate plates

Chromoly adapter ring

Low inertia

Serviceable components

SFI certified design

VIP Motorsport is a UK & European Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
