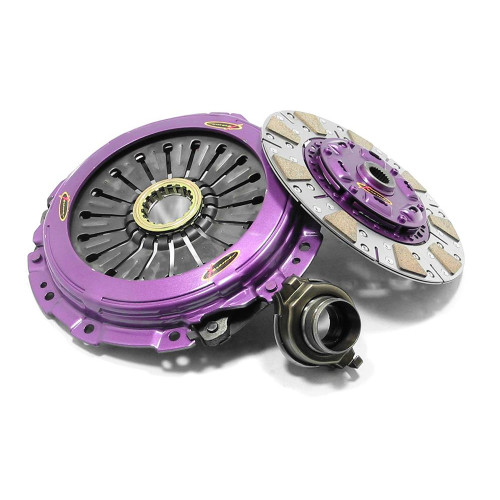

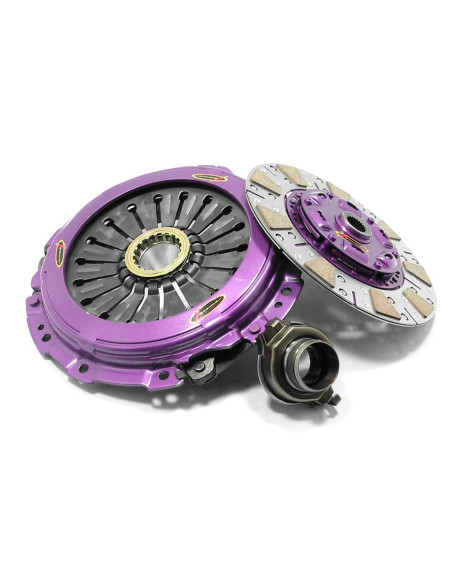

Xtreme Stage 2 Heavy Duty Cushioned Clutch Kit 640ft/lbs for Subaru Impreza WRX/STI 2000-2021 6-Speed KSU24001-1C

Specifications

Flywheel Step (mm) -15

Clutch Disc Diameter (mm) 240

Clutch Disc Spline Count 24

Clutch Disc Spline Diameter (mm) 25.2

Disc Type Sprung

Friction Material Ceramic

Stage 2

Recommended Use Performance Street

Clamping Force % Increase 30%

Torque (Nm) Inc FOS 870

Torque (ftlbs) Inc FOS 640

Spigot Bush/Bearing Included Yes

Aligning Tool Included Yes

Spline Grease Included Yes

Transport Weight (kg) 9.1

Applications

SUBARU Impreza 1998.06-2000.12 2.0 Turbo GT AWD (GC8) EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12)

SUBARU Impreza 1998.06-2000.12 2.0 Turbo GT AWD (GF8) EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12)

SUBARU Impreza 1998.09-2000.09 2.0 AWD (GC8) EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09)

SUBARU Impreza 2000.12-2005.12 2.0 Turbo AWD (GGA) EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12)

SUBARU Impreza 2000.12-2005.12 2.0 WRX Turbo AWD (GDA) 6 speed EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12)

SUBARU Impreza 2001.09-2005.12 2.0 WRX AWD (GGA) EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12)

SUBARU Impreza 2001.11-2005.07 2.0 WRX STi AWD (GDB) EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07)

SUBARU Impreza 2002.12-2006.09 2.0 WRX Turbo AWD (GGA) EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09)

SUBARU Impreza 2004.02-2005.07 2.0 WRX STi AWD EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07)

SUBARU Impreza 2005.09-2007.12 2.5 WRX STi AWD (GDF) EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12)

SUBARU Impreza 2005.09-2007.12 2.5 i WRX STI AWD EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12)

SUBARU Impreza 2005.10-2007.03 2.0 AWD (GDB) EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03)

SUBARU Impreza 2005.10-2007.03 2.5 AWD EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03)

SUBARU Impreza 2005.10-2007.03 2.5 AWD (GDF) EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03)

SUBARU Impreza 2008.01-2013.08 2.5 WRX STI AWD (GRF) EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08)

SUBARU Impreza 2009.05-2010.12 2.5 WRX STI 330S AWD EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12)

SUBARU Impreza 2010-2014 2.5 WRX STI AWD (GVF) EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014)

SUBARU Impreza 2010.04-2013.08 2.5 STI CS400 AWD (GRF) EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08)

SUBARU WRX sedan 2014.06- STi 2.5 AWD EJ257 2457 Petrol 221 kW 301 BHP (2014.06 -)

Xtreme Performance - Cushioned Ceramic kit /-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:

Torque capacity 870Nm

Clamp load 1250Kg 25% Increased over standard

Cushioned Ceramic Friction Disc

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK & European Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
