ACT Clutches SB10-HDG6 - HD-M/Race Sprung 6 Pad

SKU SB10-HDG6

Specifications

Item Description HD-M/Race Sprung 6 Pad

Product Weight (lbs.) 18.5

Torque Capacity (ft/lbs.) 668

Torque Capacity Over OE 88%

Disc Material Ceramic

Clutch Disc Diameter (Inches) 9.4

Clutch Disc Diameter (Millimeters) 240

Input Shaft Diameter (inches) 1

Pressure Plate Type Heavy Duty

Warranty 12 Months (contact us for details)

Includes MonoLoc

SB10-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.

Feel Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts

Life Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life

Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism

Recommended Use Recommended for high horsepower street or race use

ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Vehicle Fitment

Subaru Impreza / WRX STi Version 8 -9 GDB (JDM/Euro) 02-07 Turbo EJ20 240mm 6 Speed

Subaru Impreza WRX STi Hatch GRF/Saloon GVF (JDM/Euro) 08-14 Turbo 2.5L, EJ25 240mm 6 Speed Inc JDM EJ20 Model GRB/GVB

Subaru Impreza STi Saloon VA (JDM/Euro) 15-21 Turbo 2.5L, EJ25 240mm 6 Speed Inc JDM EJ20 Model VAB

Legacy GT Spec. B 07-09 Turbo, 2.5L 6 spd 240mm Must use ACT or factory flywheel for the 04+ WRX STi

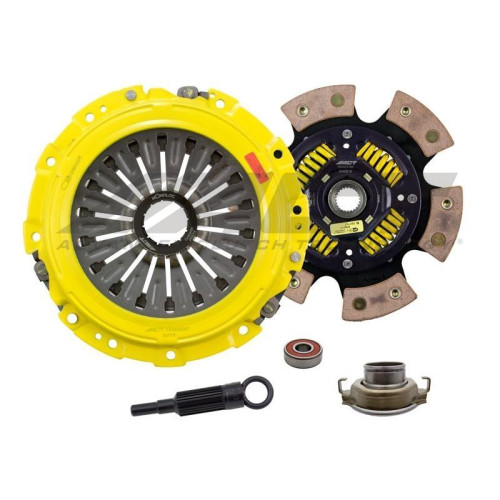

Kit Contents:

6240618 - 6 Pad Sprung Race Disc

AT90 - Alignment Tool

PB1004 - Pilot Bearing

RB601 - Release Bearing

SB019 - Heavy Duty Pressure Plate
