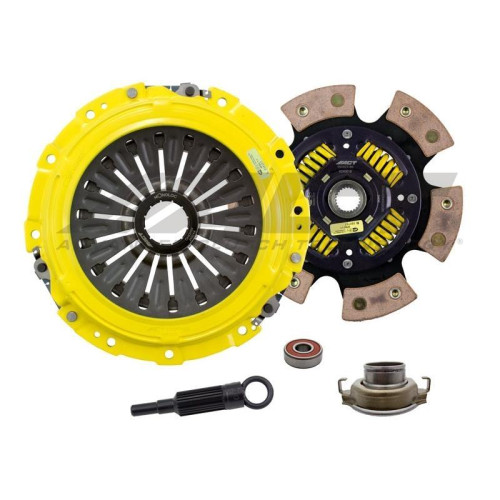

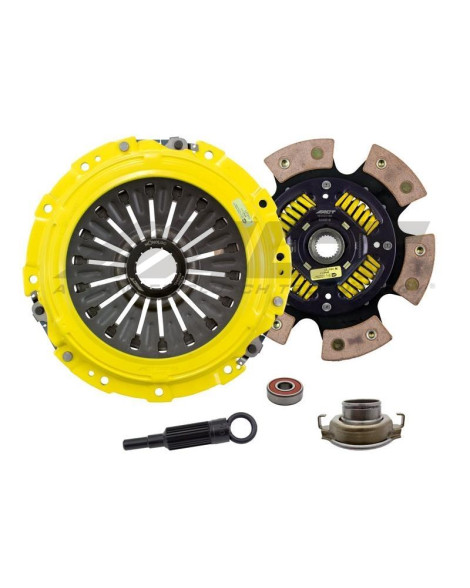

SB10-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts;

Life: Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism;

Recommended Use: Recommended for high horsepower street or race use;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc;

Specifications

Warranty   12 Months

Product Weight (lbs.)  18.5

Disc Type  Sprung Race Disc

Pressure Plate Type    Xtreme

Input Shaft Diameter (Inches)      1

Torque Capacity Over OE     104%

Torque Capacity (ft/lbs.)      755

Disc Diameter (Inches)        9.4

Disc Diameter (mm)    240

Spline Count      24

Disc Material      Ceramic

Pad Quantity      6

ItemCodeDesc    XT-M/Race Sprung 6 Pad

Alignment Tool Included      AT90

Pilot Bearing Included PB1004

Release Bearing Included    RB601

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
