IAG Performance EJ Street Series Oil Pan For 02-14 WRX, 04-21 STI, 05-09 LGT, 04-13 FXT (Black)

SKU: IAG-ENG-2200BK

The IAG Street Series Oil Pan for the Subaru WRX and STI is uniquely designed and CNC machined to suit a wide range of street and track applications.

About Street Series EJ Oil Pan

The cast aluminium oil pan was designed with fitment for a larger variety of popular headers in mind, while still increasing oil capacity up to 30% over OEM.

The design incorporates cooling fins to aid in dissipating heat from the oil as air passes over them. The included oil drain plug is integrated into the lower cooling fins at the absolute bottom of the pan to make sure all the waste oil is removed during maintenance changes. The oil drain plug uses an OEM style crush washer. The oil pan is also threaded with 1/8th inch NPT port to accept many popular oil temperature sensors. 1/8th inch NPT plug is also included in the event that the sensor port is not used.

The upper flange mounting surface is CNC machined for better hardware fitment. The flange features a sealing O-ring for easier installation and removal. The pan is designed to use the included OEM style Viton dipstick o-rings with a unique chamfer to aid in the installation of the dipstick.

About Street Series Oil Pan Baffle

Internally, the pan includes our integrated, stainless steel, Street Series Oil Baffle that is designed to prevent oil inside the pan from sloshing around and creating cavitation, which can lead to oil starvation. The baffle is engineered to be removable for future upgrades and easy cleaning.

This pan is compatible with the PN# IAG-ENG-2087 Oil Control Baffle and Windage Tray, or our new PN# IAG-ENG-2210 Windage Tray.

The pan is designed to work with the IAG and Killer B oil pickup.

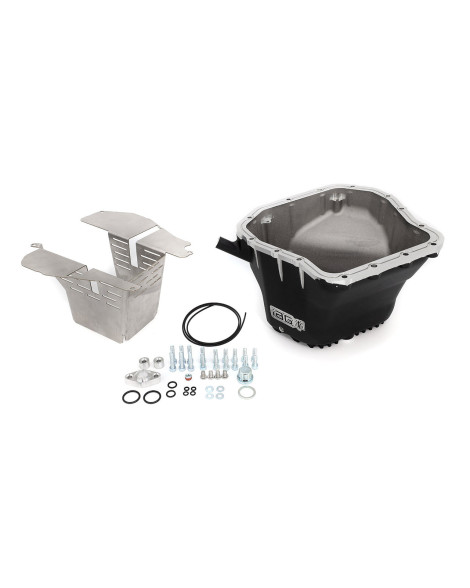

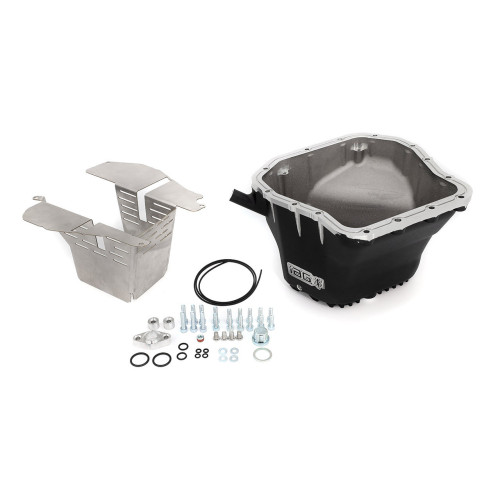

Package Includes:

(x1) IAG Cast Aluminum Oil Pan with Machined Flanges, Cooling Fins & Black Finish

(x1) IAG Street Series Oil Pan Baffle

(x1) Oil Pan Mounting Hardware Pack

(x1) Oil Baffle Hardware Pack

(x1) Oil Pickup Spacer Kit PN#IAG-ENG-2081SP

(x1) M20 Zinc Plated Oil Drain Plug & OEM Style Crush Washer/Gasket

(x1) 1/8" NPT Zinc Plated Plug

(x1) Oil Pan O-ring

(x2) Oil Pan Dipstick Viton OEM Sized O-rings

All necessary hardware required for install

Install Notes

IAG oil pickup spacer (Part# IAG-ENG-2081SP) is included and required when using the IAG oil pickup or Killer B oil pickup.

The pan is designed to work with the IAG and Killer B Oil Pickup.

Does NOT work with the Moroso or OEM Oil Pickup

Model Year & Fitment:

2002-2014 Subaru WRX

2004-2021 Subaru STI

2005-2009 Subaru Legacy GT

2004-2013 Subaru Forester XT

VIP Motorsport is an official UK & European distributor of IAG Performance products. Our stock is directly linked with IAG USA, if the item is out of stock with us it could take up to 2-3 weeks to be received.
