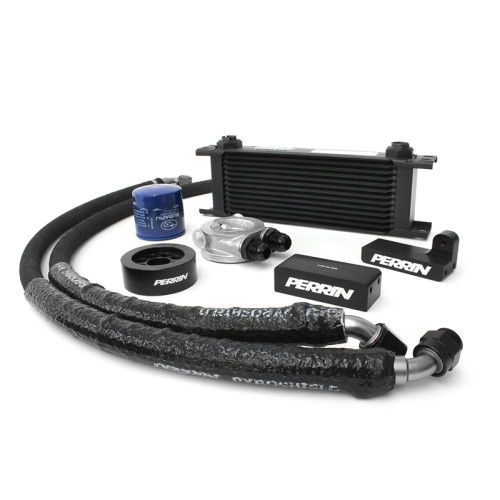

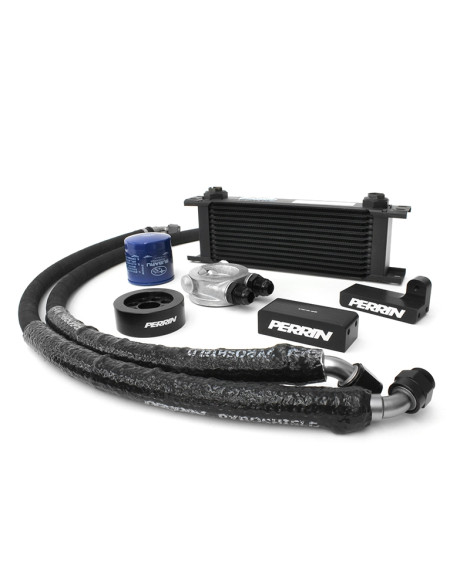

PERRIN PERFORMANCE OIL COOLER KIT FOR WRX & STI

Reduce engine oil temperatures, extend engine life, and keep your horsepower consistent with a PERRIN Oil Cooler.

WHY YOU WANT THIS

In racing conditions engine oil temperature skyrockets. This causes decreased engine performance and reduces the oil's ability to properly lubricate. A well designed engine oil cooling system like the PERRIN Oil Cooler Kit will help keep temperatures within the desired temperature range, thus maintaining performance and prolonging engine life. Most setups can see a drop of approximately 15°-20°F at 7000 RPM.

HEAT EXCHANGER

Each PERRIN oil cooler uses a Setrab core which maximizes heat dissipation without pressure build-up. Oil-ways are interspaced with airway corrugations providing optimum heat transfer, while the oil passages use "turbulators" to break down boundary layer effects in the oil flow.

Setrab Oil Coolers employ an in-line turbulator to gently stir the fluid being cooled, thereby ensuring that the fluid has exposure to the entire internal surface area of the oil cooler with the least pressure lost. The turbulators are fully brazed to the entire internal length of the tube resulting in zero heat transfer barrier and high strength.

INTERGRATED THERMOSTAT

The PERRIN Filter Adapter features an integrated 85°C (185°F) thermostat. This means your oil will reach its optimum temperature of 85°C much faster.

In addition to the OEM oil filter from Subaru, we include a PERRIN spacer which allows for easier installation of the thermostat-filter assembly.

MOUNTING BRACKETS

The PERRIN Oil Cooler comes with custom brackets that allow the oil cooler core to mount directly to existing holes in the OEM core support of your vehicle. Made from CNC machined 6061 T6 aluminum, the brackets look sleek and stylish while blending seamlessly behind your bumper.

PREASSEMBLED HOSES

The PERRIN Oil Cooler kit uses lightweight Aeroquip brand -10 hose that is rated for 250psi and 300°F continuous temperature. Each hose consists of anodized -10 push-lock type aluminum hose ends. These fittings are designed to fit without the need for clamps, but we take the extra step and add a clamp ensuring they will never come apart. Unlike other kits that make you assemble your hoses, PERRIN preassembles them for you!

PERRIN's hoses are made using Industrial grade Pyrojacket. Pyrojacket withstand continuous exposure to 500° F (260°C); up to 2000°F (1090°C) for 15-20 minutes; and up to 3000°F (1650°C) for 15-30 seconds. When exposed to flame, the silicone rubber transforms into a crust, creating a protective SiO2 refractory layer.

SPECS

Oil Cooler Core Dimensions 9" x 4" x 2"

Core Delta PSI 4.0/4.5 PSI

Core BTU/hr Range 19,000-26,000

Additional Oil Required 1 quart

Mounting Brackets 6061 T6 aluminum

Filter Spacer 6061 T6 Aluminum

Oil Cooler Thermostat 85°C Activation Temp

Hose Size -10

Hose Construction AQP elastomer tube, textible braind reinforcement, AQP elastomer cover

PART NUMBERS

PSP-OIL-099 = 2006-2014 WRX

PSP-OIL-100 = 2002-2005 WRX / 2004-2020 STI

PSP-OIL-101 = 2015-2020 WRX

IN THE BOX

PSP-OIL-099

(1) PERRIN Oil Cooler core

(1) PERRIN Oil Filter Sandwich Adapter

(1) PERRIN Oil Filter Spacer

(1) Oil line assembly, short

(1) Oil line assembly, long

(1) Oil cooler core mounting bracket, left

(1) Oil cooler core mounting bracket, right

(1) Threaded extender for sandwich adapter

(2) -10 AN Fitting

(2) Dowty seal fittings

(1) Subaru oil filter

(1) Subaru oil filter adapter

(1) O-ring for oil filter spacer

(1) 14" long 3M tape strip

(1) M6 fender washer

(8) M6 button head socket cap screws

(7) M6 flat washers

(1) 1/2"-1/2" connector

(10) Zip ties

(1) PERRIN License Plate Frame

Warranty, instructions, stickers

PSP-OIL-100

(1) PERRIN Oil Cooler core

(1) PERRIN Oil Filter Sandwich Adapter

(1) PERRIN Oil Filter Spacer

(1) Oil line assembly, short

(1) Oil line assembly, long

(1) Oil cooler core mounting bracket, left

(1) Oil cooler core mounting bracket, right

(2) -10 AN Fitting

(2) Dowty seal fittings

(1) Subaru oil filter

(1) Subaru oil filter adapter

(1) O-ring for oil filter spacer

(1) 14" long 3M tape strip

(1) M6 fender washer

(8) M6 button head socket cap screws

(7) M6 flat washers

(1) 1/2"-1/2" connector

(10) Zip ties

(1) PERRIN License Plate Frame

Warranty, instructions, stickers

PSP-OIL-101

(1) PERRIN Oil Cooler core

(1) PERRIN Oil Filter Sandwich Adapter

(1) PERRIN Oil Filter Spacer

(1) Oil line assembly, short

(1) Oil line assembly, long

(1) Oil cooler core mounting bracket, left

(1) Oil cooler core mounting bracket, right

(1) Threaded extender for sandwich adapter

(2) -10 AN Fitting

(2) Dowty seal fittings

(1) Subaru oil filter

(1) Subaru oil filter adapter

(2) O-rings for oil filter spacer

(1) 14" long 3M tape strip

(2) M6 fender washer

(9) M6 button head socket cap screws

(9) M6 flat washers

(1) 1/2"-3/8" connector

(10) Zip ties

(1) PERRIN License Plate Frame

Warranty, instructions, stickers

COMPATIBILITY

PSP-OIL-099

2008-2014 WRX - Yes

2006-2007 WRX - Yes, requires Subaru Part Number 21328AA140, the coolant crossover pipe

2008-2014 WRX with PERRIN FMIC - Yes

PSP-OIL-100

2002-2005 WRX - Yes, requires Subaru Part Number 21328AA140, the coolant crossover pipe

2004-2007 STI, requires Subaru Part Number 21328AA140, the coolant crossover pipe

2008-2020 STI - Yes

2008-2020 STI with PERRIN FMIC - Yes

PSP-OIL-101

2015-2020 WRX - Yes

2015-2020 WRX with PERRIN FMIC - Yes
