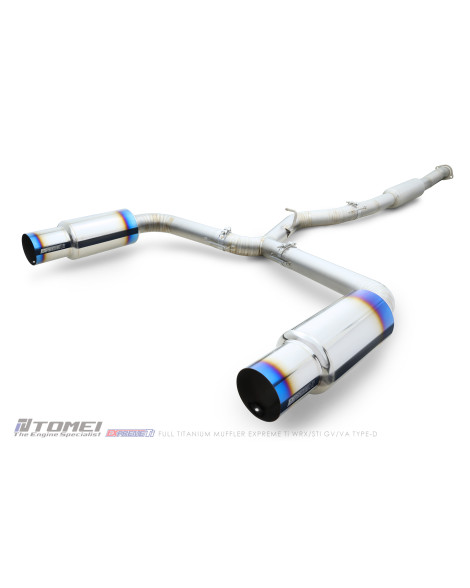

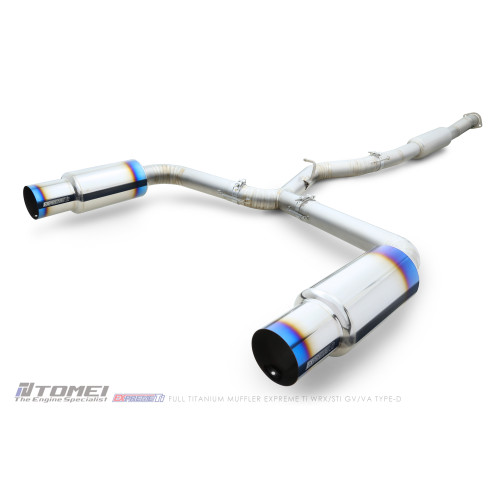

TOMEI FULL TITANIUM MUFFLER EXPREME Ti WRX/STI GV/VA TYPE-D

Part Number TB6090-SB02D

Engine SUBARU EJ20, SUBARU EJ25, SUBARU FA20DIT

Model SUBARU WRX STI

Shipping size 45 x 17 x 17 inch / 114 x 42 x 42 cm

Shipping weight 40.4 lbs / 18.3 kg

Please see installation instructions on the Tomei Website.

Confirmed Applications

SUBARU EJ20/EJ25/FA20DIT

2011-2014 WRX/STI GVB/GVF

2015-2021 WRX/STI VAB/VAG

TB6090-SB02D Specifications

MATERIAL TITANIUM

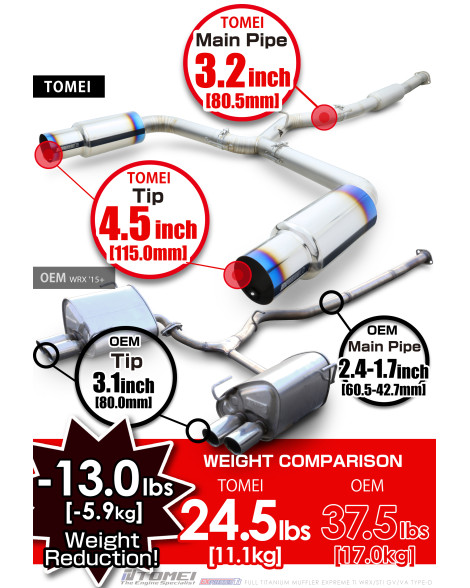

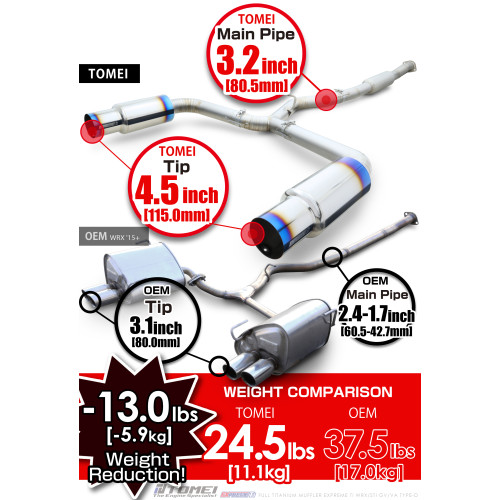

MAIN PIPE DIAMETER 3.2inch [80.5mm]

MAIN PIPE THICKNESS 1.0mm

SILENCER DIAMETER 6.0inch [152.0mm]

SILENCER THICKNESS 1.0mm

SUB SILENCER DIAMTER 4.6inch [118.0mm]

SUB SILENCER THICKNESS 1.0mm

EXIT DIAMETER 4.5inch [115.0mm]

EXIT THICKNESS 1.0mm

FLANGE THICKNESS 8.0mm

WEIGHT 24.5lbs [11.1kg]

SOUND LEVELS TESTED AT 4200RPM

With Sound Reducer ver.2 81db

With Sound Reducer 85db

Without Sound Reducer 91db

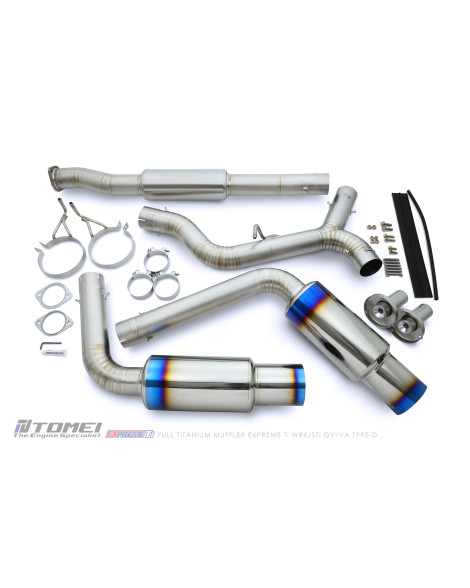

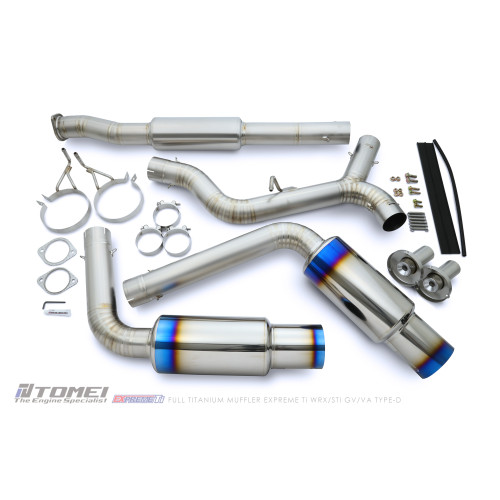

COMPLETE KIT

This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.

VIP Motorsport is an official Distributor of Tomei Exhausts & Products in the UK & Europe. Contact us for a lead time.
