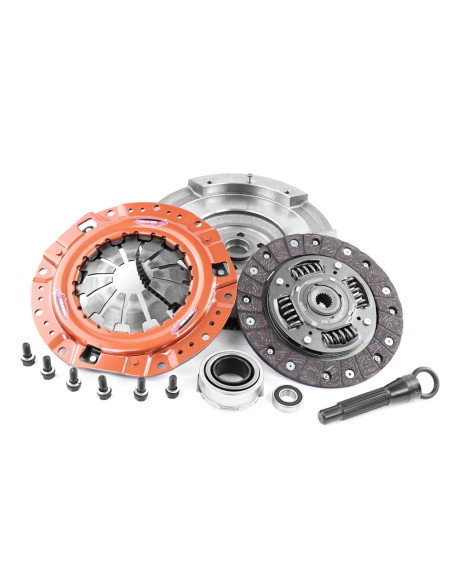

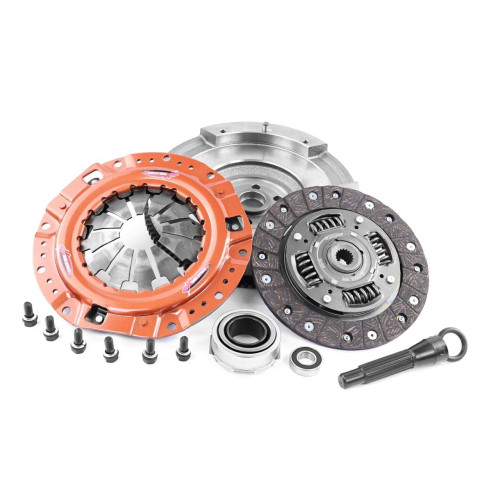

Xtreme Outback Heavy Duty Organic Clutch Kit + Flywheel for Suzuki Jimny 1.5L 2018+ KSZ19520-1A

Confirmed Applications

SUZUKI JIMNY 2018.07- 1.5 K15B 1462 Petrol 75 kW 102 BHP (2018.07 -)

Specifications

Torque (Nm) Inc FOS 230

Torque (Ftlbs) Inc FOS 170

Flywheel Step -18.0mm

Clutch Disc Diameter (mm) 190

Clutch Disc Spline Count 18

Clutch Disc Spline Diameter (mm) 19.3

Recommended for Street Performance, Heavily Loaded or Tow Vehicles

Design Single Plate

Disc Type Sprung

Friction Material Organic

Clamping Force % Increase 35%

Spigot Bush / Bearing Included Yes

Aligning Tool Included Yes

Spline Grease Included Yes

Stage Stage 1

Weight [KG]: 12.6

Flywheel Included Single Mass

Xtreme Outback - Heavy duty sprung organic kit /-1A

Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications:

Torque capacity 230Nm

Clamp load Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Xtreme Outback

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
