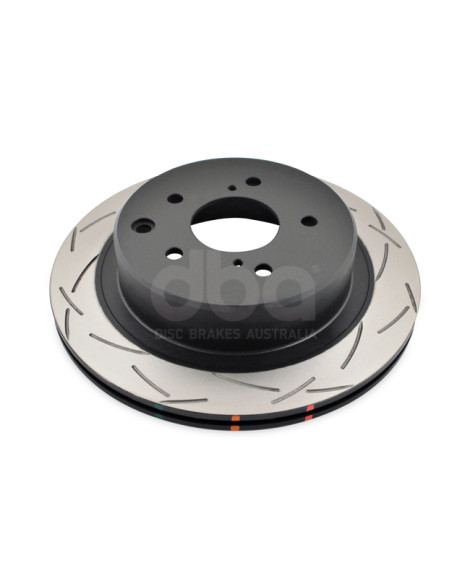

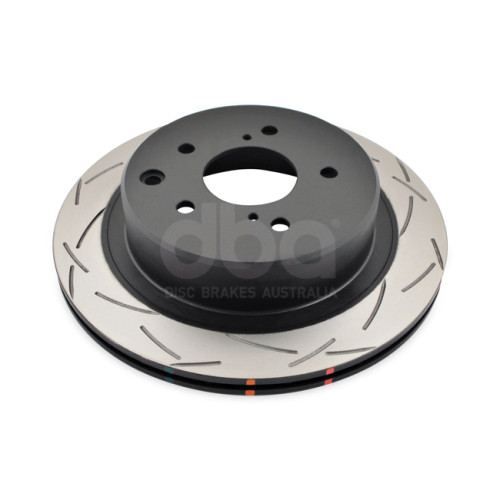

DBA T3 4000 Series Grooved Brake Discs Rear for Nissan R32 GTS/GTST/GTR Skyline 1989-1995 DBA4908S

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 disc per axle (Left or Right)

Diameter [mm]: 297

Disc Vent: Kangaroo Paw

Number of Holes: 5

Inner Diameter [mm]: 68

Minimum Thickness [mm]: 16

Thickness [mm]: 18

Height [mm]: 63

Pitch Circle [mm]: 114.3

Stage: Stage 4

ECE R90 number: E11*90R02/06*60520*00

Total Weight [kg]: 6.75

Compatible Cars

NISSAN 300ZX GZ32 1989-1994 3.0 Not UK (1989-1994) Rear

NISSAN 300ZX GZ32 1994-1998 3.0 Not UK (1994-1998) Rear

NISSAN 300ZX Z32 1990-1994 3.0 Twin Turbo (1990-1994) Rear

NISSAN Skyline (R32) 1989-1994 2.0 Turbo GTS (1989-1994) Rear

NISSAN Skyline (R32) 1989-1994 2.0 Turbo GTS-T (1989-1994) Rear

NISSAN Skyline (R32) 1989-1995 2.6 Twin Turbo GT-R (1989-1995) Rear

NISSAN Skyline (R32) 1991-1994 2.0 Turbo GTS-T (1991-1994) Rear

NISSAN Skyline (R33) 1993-1998 2.5 Turbo GTS-T (1993-1998) Rear

NISSAN Skyline (R34) 1998-2002 2.5 Turbo GT-T (1998-2002) Rear

DBA’s 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA’s revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA’s 4000 Series T3 rotors are recommended for all performance applications from street driving, 4×4 and SUV, light utility vehicles, track days, rally cars and armoured vehicles.

T3 rotors are denoted by the suffix (S) in 4000 Series part numbers.

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
