ACT Clutches NS3-HDG6 - HD/Race Sprung 6 Pad

SKU NS3-HDG6

Specifications

Item Description HD/Race Sprung 6 Pad

Product Weight (lbs.) 19.1

Torque Capacity (ft/lbs.) 525

Torque Capacity Over OE 86%

Disc Material Ceramic

Clutch Disc Diameter (Inches) 9.4

Clutch Disc Diameter (Millimeters) 240

Input Shaft Diameter (inches) 1

Pressure Plate Type Heavy Duty

Warranty 12 Months (contact us for details)

NS3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Feel Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life Moderate friction life, extended by ACT's exclusive diaphragm design

Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommended Use Recommended for high horsepower street or race use

ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Vehicle Fitment

Nissan Skyline R32/R33 (JDM) RB20/RB25 90-98 RWD Push Type Only

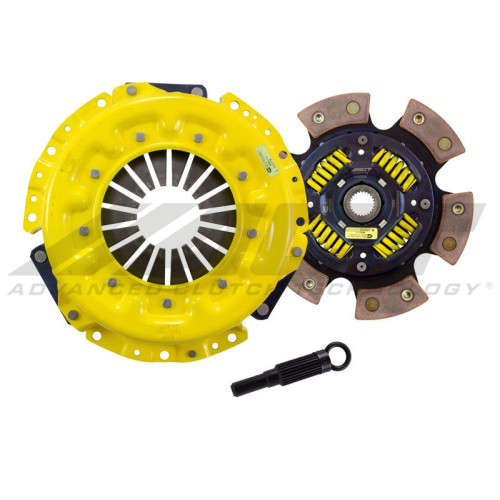

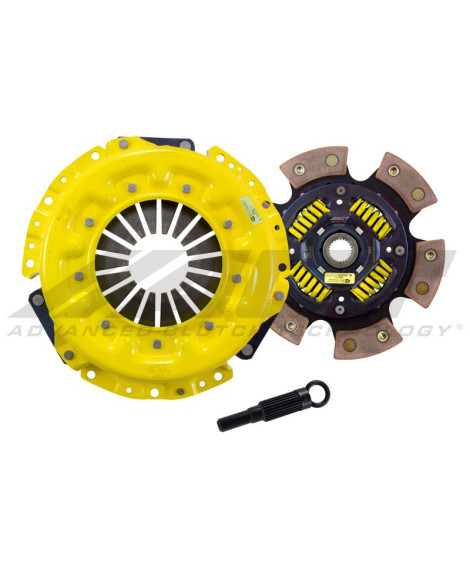

Kit Contents:

6240306 - 6 Pad Sprung Race Disc

AT01 - Alignment Tool

N013 - Heavy Duty Pressure Plate
