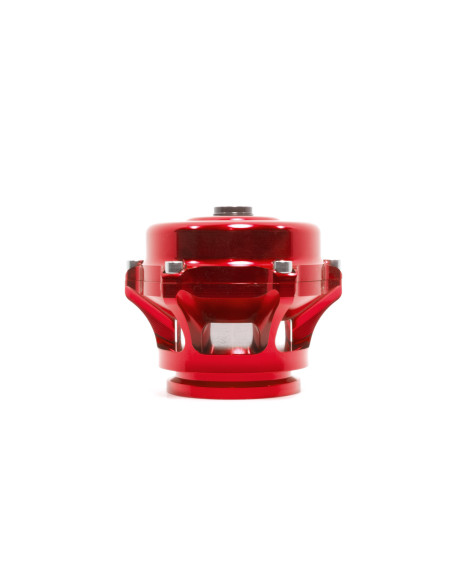

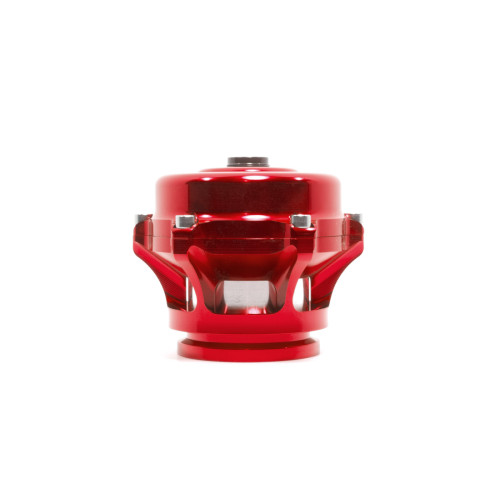

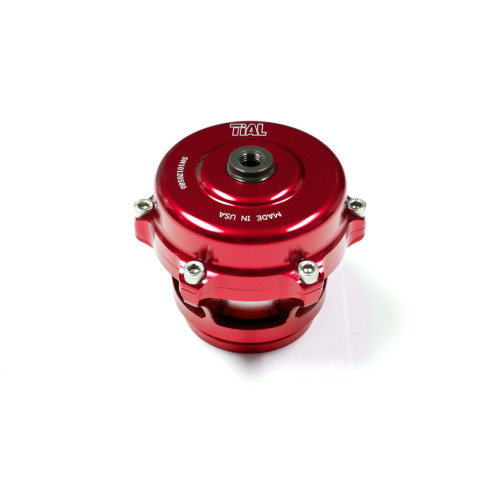

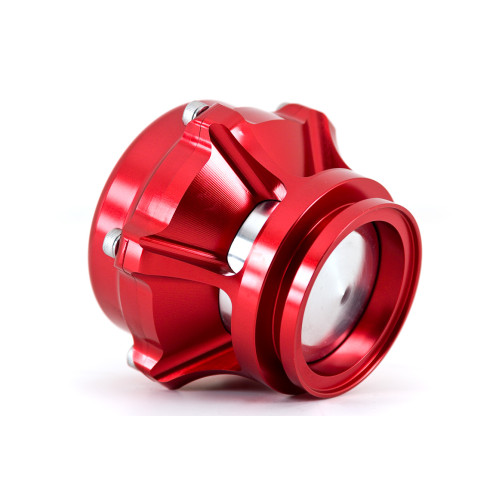

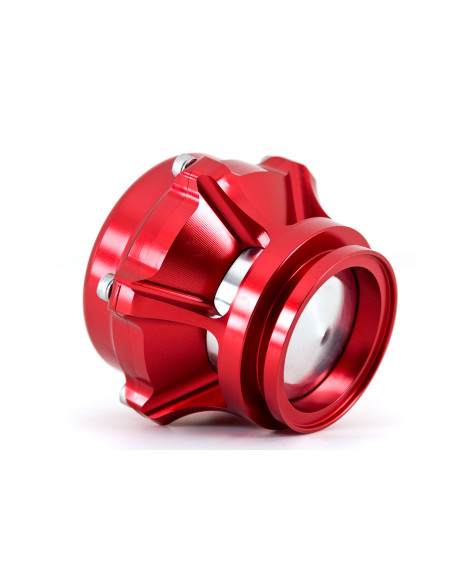

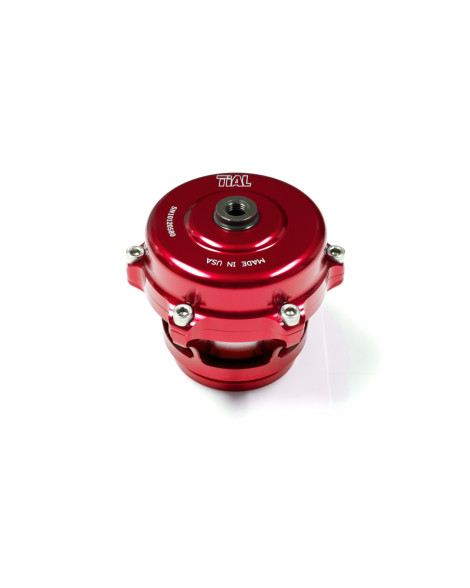

Q is the first revision of the original TiAL BOV. The Q bolts up to any standard TiAL flange, no re-welding.  This is the highest flowing BOV on the market.  It's offered with a variety of springs for different vacuum levels and a special spring specifically for supercharged vehicles.

SPECIFICATIONS

For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98 in (50.5mm) valve.

The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.

The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.

The Blow Off Valve also comes with our own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.

An aluminum or mild steel weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized with a selection of colors.

Through countless hours of R&D we were able to make the same size valve flow a staggering 60% more than the original design - that means 60% more air is blown off per cycle! This is the highest flowing BOV on the market.

Color anodized aluminum options (Silver, Red, Blue, Purple, Black).

A single Q BOV can support up to 1,800hp

-2psi spring for supercharged applications

WHATS IN THE BOX

Included with every Tial Q:

Q Assembly

TiAL Vband Clamp

Vband Weld Flange

TiAL Air Fitting

High Pressure O-ring

AVAILABLE COLORS

Silver

Black

Red

Purple

Blue

TIAL V-BAND CLAMP

TiAL Designed V-Band Clamps are manufactured in house.

CNC machined aluminum clamps ensure a secure and pressure tight fit.

Q BOV                 Option

Flange Materials  - Aluminum

Pipe Size - Flange cut for 2.5" IC pipe

Colours - Black, Blue, Red, Purple, Silver

Spring Pressures - -2psi(S/C), -6psi, -8psi, -10psi, -11psi, -12psi

Thread - M10 x 1.0

VIP Motorsport is a UK & European dealer of TiAL Sport Blow Off Valves. Out stock is directly linked with TiAL USA, if the item is out of stock with us it could take up to two working weeks to be received!
