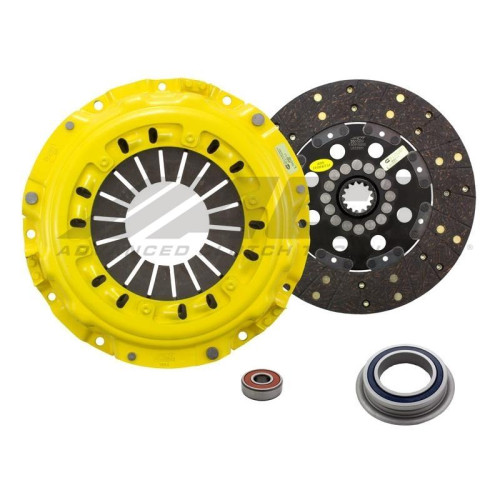

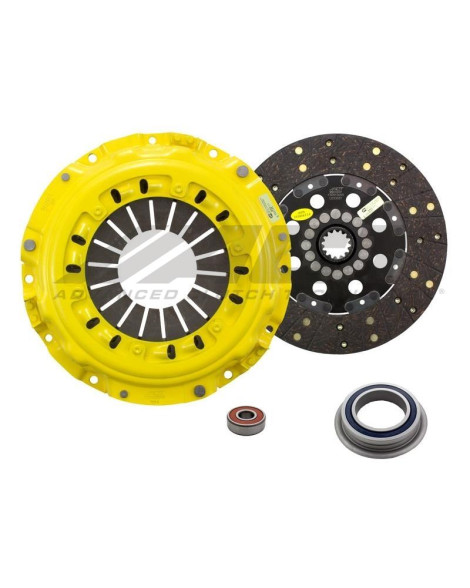

TS4-HDMM kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT modified spring-centered street discs feature premium organic friction material with high copper content for better heat transfer and steel-backed lining for burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. the heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. Modified street discs provide smooth engagement and quiet operation, with increased strength and reliability.

Feel: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle;

Life: Longer friction life, extended by ACT's exclusive diaphragm design;

Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade;

Recommended Use: Recommended for street and occasional race use;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

VIP Motorsport is an official dealer of Advanced Clutch Technology (ACT) Clutches in the UK

Item Description

HD/Modified Street

Product Weight (lbs.)

18.6

Torque Capacity (ft/lbs.)

587

Torque Capacity Over OE

47%

Disc Material

Organic

Friction Surface Diameter (Inches)

9.8

Friction Surface Diameter (mm)

250

Input Shaft Diameter (Inches)

1.25

Spline Count

14

Disc Type

Sprung Street Disc

Pressure Plate Type

Heavy Duty

Warranty

12 Months
