TOMEI B/B TURBOCHARGER KIT ARMS BX7960F EJ SINGLE SCROLL

PART No. TB403A-SB01D

TARGET HP (HP) 400

BEARING TYPE BALL BEARING

INITIAL BOOST SETTING (kgf/cm2) 1.0

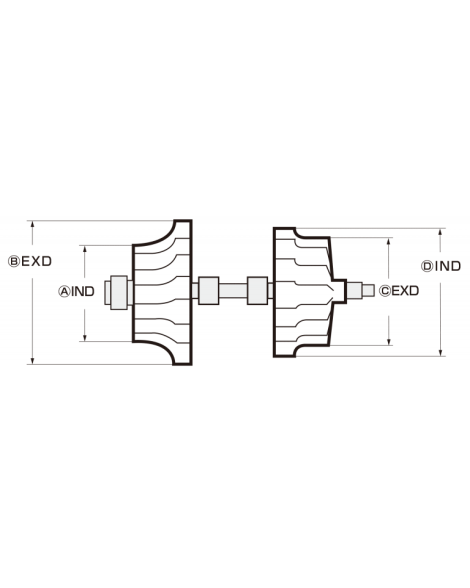

COMPRESSOR WHEEL

ⒶIND(mm) 52.6

ⒷEXD(mm) 68.0

TRIM 60

BLADES 6/6

MATERIAL A2618

PRODUCTION CNC BILLET

TURBINE WHEEL

ⒸEXD(mm) 54.0

ⒹIND(mm) 61.0

TRIM 79

BLADES 9

MATERIAL K418

PRODUCTION CAST

COMPRESSOR HOUSING

IND(mm) 53.46

EXD(mm) 44.2

A/R 0.78

TURBINE HOUSING

IND(mm) 45.0

EXD(mm) EJ

A/R 0.57

CNC Billet Compressor Wheel

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface area for significantly improved airflow and turbo spool.

Multi Rate Billet Actuator

Large capacity, reinforced foraged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.
