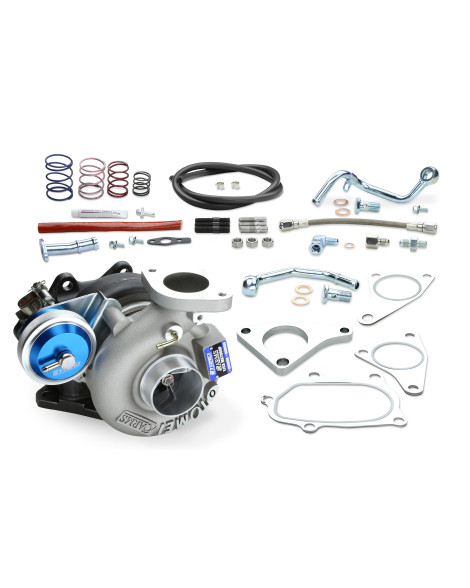

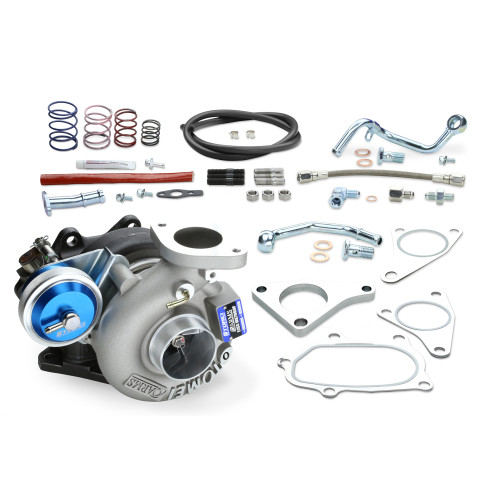

Subaru EJ MX7960F Tomei Turbine Kit

400HP P/N TB401A-SB01D

CNC BILLET COMPRESSOR WHEEL

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with larger surface area for significantly improved airflow and turbo spool.

MULTI RATE BILLET ACTUATOR

Large capacity, reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.

BEARING TYPE  JOURNAL BEARING

INITIAL BOOST SETTING

MX7960F    1.0 kgf/cm2

COMPRESSOR WHEEL

MX7960F

Ⓐ IND(mm)       52.6

Ⓑ EXD(mm)      68.0

TRIM          60

BLADES     6

MATERIAL          A2618

PRODUCTION   CNC BILLET

TURBINE WHEEL

MX7960F

Ⓒ EXD(mm)      54.0

Ⓓ IND(mm)       61.0

TRIM          79

BLADES     11

MATERIAL          K418

PRODUCTION   CAST

COMPRESSOR HOUSING

MX7960F

IND(mm)  53.46

EXD(mm)  44.2

A/R   0.78

TURBINE HOUSING

MX7960F

IND   45.0

EXD  EJ

A/R   0.57

100% BOLT ON

The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.
