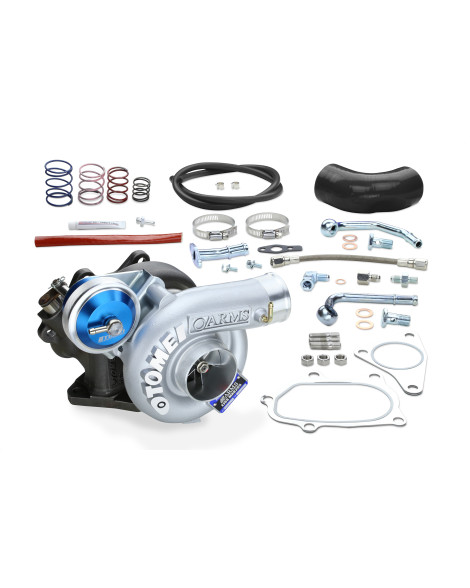

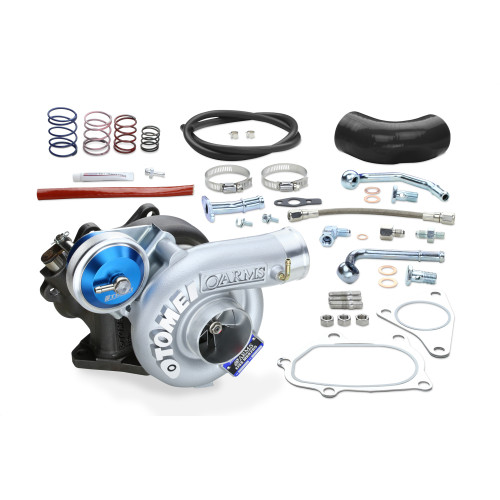

Subaru EJ MX7760 Tomei Turbine Kit

380HP P/N TB401A-SB01A

CNC BILLET COMPRESSOR WHEEL

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with larger surface area for significantly improved airflow and turbo spool.

MULTI RATE BILLET ACTUATOR

Large capacity, reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.

BEARING TYPE  JOURNAL BEARING

INITIAL BOOST SETTING

MX7760     1.0 kgf/cm2

COMPRESSOR WHEEL

MX7760

Ⓐ IND(mm)       52.6

Ⓑ EXD(mm)      68.0

TRIM          60

BLADES     6

MATERIAL          A2618

PRODUCTION   CNC BILLET

TURBINE WHEEL

MX7760

Ⓒ EXD(mm)      49.1

Ⓓ IND(mm)       56.0

TRIM          77

BLADES     12

MATERIAL          K418

PRODUCTION   CAST

COMPRESSOR HOUSING

MX7760

IND(mm)  53.6

EXD(mm)  41.63

A/R   0.78

TURBINE HOUSING

MX7760

IND   45.0

EXD  EJ

A/R   0.57

M7760

Now comes standard with the new Billet Actuator. Retains the response feel of the original stock turbo, but delivers increased power gains even at higher up in the power band range without sacrificing torque.

Previously compatible with GD chassis, it is now compatible with both GR/GV chassis with a newly designed actuator bracket.

The actuator rod has also been newly designed, securing the clearance with the intercooler.

Compressor OUT hose is now included to secure the clearance from the electric throttle position sensor.

100% BOLT ON

The ARMS series turbo kits all come supplied with all the required gaskets and fitting accessories for a true bolt on application out of the box. So it can be installed immediately without the need to hunt for other parts.

VIP Motorsport is an official stockist of Tomei Exhausts & Products in the UK & Europe. Our stock is directly linked with Tomei USA, if the item is out of stock with us it could take up to two working weeks to be received.
