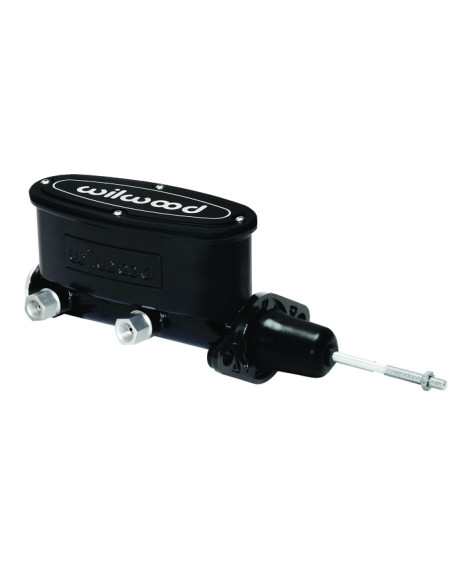

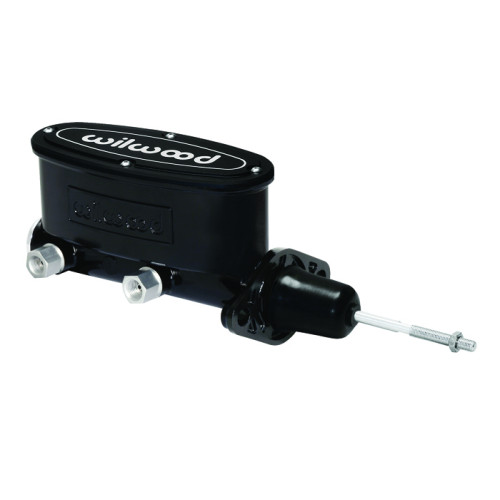

Wilwood 7/8" Aluminium Tandem Master Cylinder Dual Outlet w/ Pushrod Black 260-9439-BK

M/C,TANDEM,7/8 DIE CAST,DUAL OUTLET WILWOOD,BLACK

Aluminium Tandem Master Cylinder w/ Pushrod

Aluminium Tandem Master Cylinder w/ Pushrod - Product Summary

Wilwood’s 7/8" or 15/16" bore Tandem aluminium Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.

Master Cylinder Dimensions

Bore Size 7/8"

Area (in²) 0.600

Stroke 1.10

Master Cylinder Description

Type Tandem Outlet

Outlets 2

Material aluminium

Finish Black E-coat

Reservoir

Res Type Integral

Res Size (oz) 8.0 / 4.8

Res Size(cu in) 14.4 / 8.7

UPC Number

UPC  889545068047

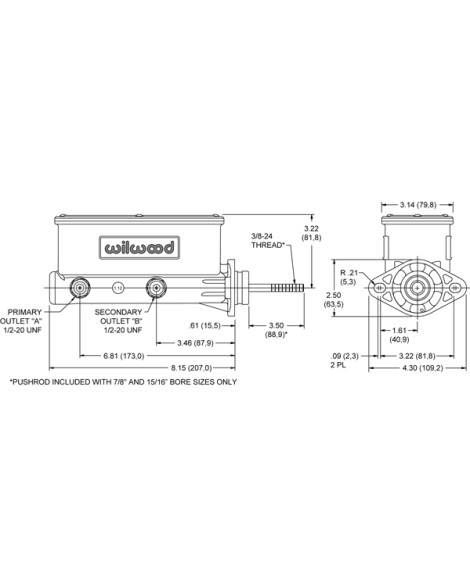

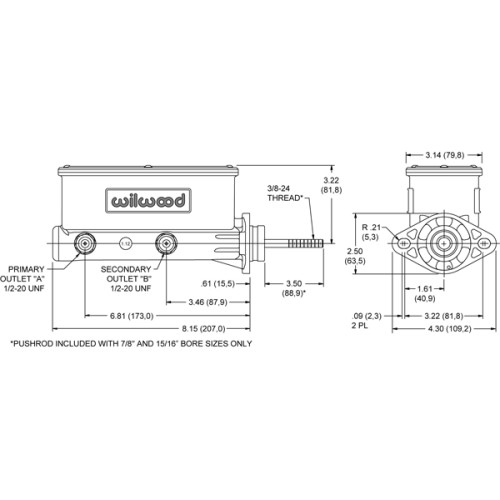

Additional Dimensions

Overall Length(in) 12.26"

Flange to End Length (in) 8.15"

Outlet Size 1 (in) 1/2-20

Outlet Fit 1 (in) 3/8-24 IF or 1/2-20 IF

Outlet Size 2 (in) 1/2-20

Outlet Fit 2 (in) 3/8-24 IF or 9/16-18 IF

VIP Motorsport is a UK Stockist of Wilwood products. Contact us for a lead time.
