Wilwood BP-40 7816-40 Brake Pads (Set of 4 Pads for 2 Calipers) 150-12248K

PAD,7816-40,DP,AXLE SET

High-Temperature Racing Pads

Pad#: 7816

Compound: BP-40

Prod #: 150-12248K

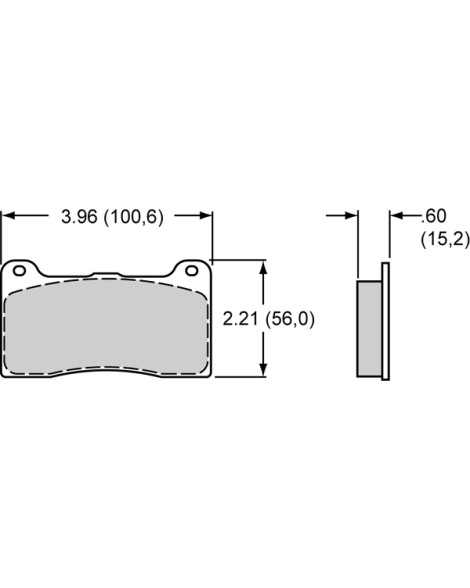

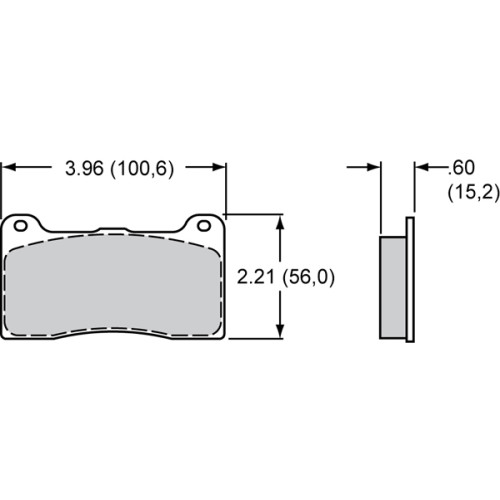

Pad Dimensions

Thickness(in) .60

Area(in²) 6.36

Volume(in³) 3

Bedded N

UPC Number UPC 889545033069

BP-40 Compound

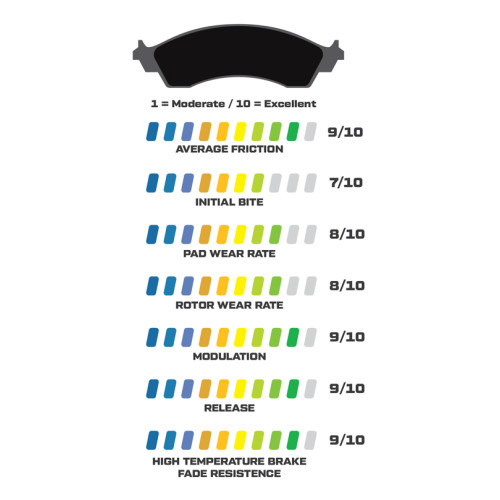

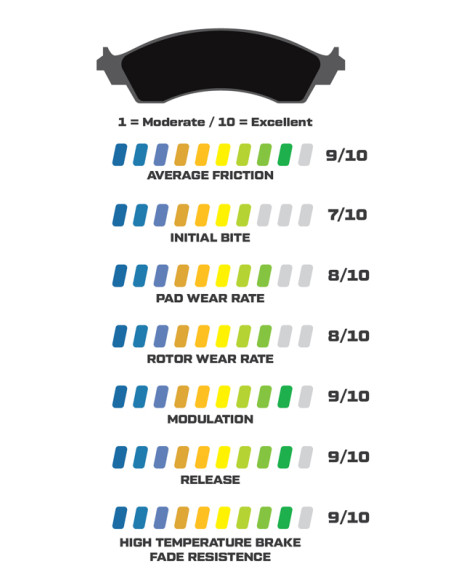

Pad Characteristics

Very high friction pad with aggressive initial response

Immediate low temperature response

Low wear rate during sustained high heat braking

Predictable and linear response with excellent modulation

High heat fade resistance

Pad Applications

Racing only - Not for street use

Road course

Oval pavement

Dirt all classes

Off road

Rotor Material

Steel

Stainless Steel

Iron

Super Alloy

Titanium

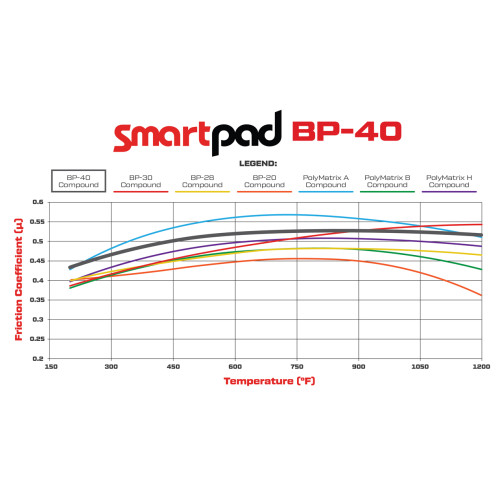

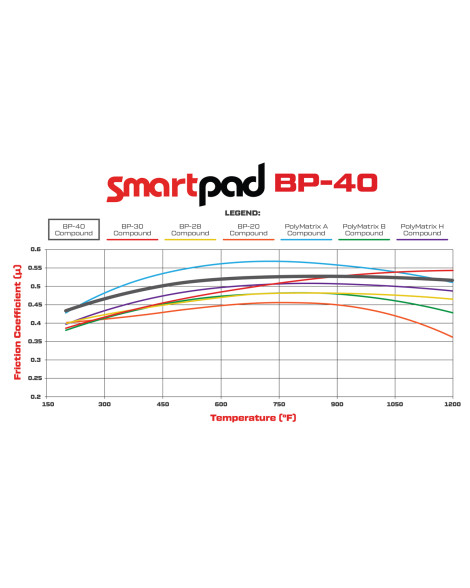

The attached friction data (μ) was recorded through braking cycles from 95 mph to 40 mph at a 0.5g deceleration. Snubs were consecutively done until rotor temperature reached 1300°F. This graph represents average data and is for general trend visualisations only comparing Wilwood pads. Chart data should not be used in comparison with other manufacturer's data. Test conditions, variables, and environment can affect test results.

Temperature range and overall friction value are the primary considerations for pad selection. The pads must maintain the proper amount of friction for stopping power within the temperatures that will be realized on the track. Overall wear rate must also be considered. For most asphalt and road race applications, compounds in the high-temperature range over 1000°F are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on-track performance. If pad fade (friction loss) due to overheating occurs, improved cooling, a heavier rotor, or a higher temperature range pad may become necessary.

See the Wilwood site for compatible calipers.

VIP Motorsport is a UK Stockist of Wilwood products. Contact us for a lead time.
