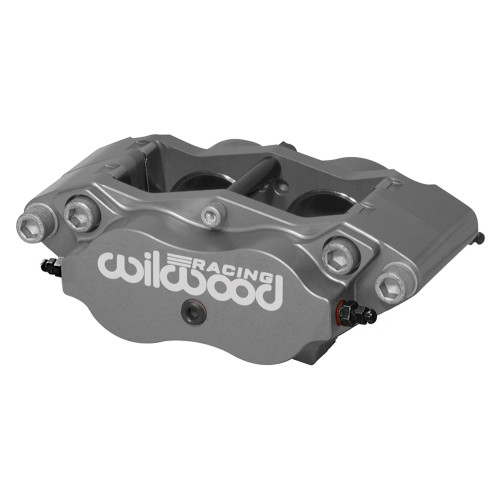

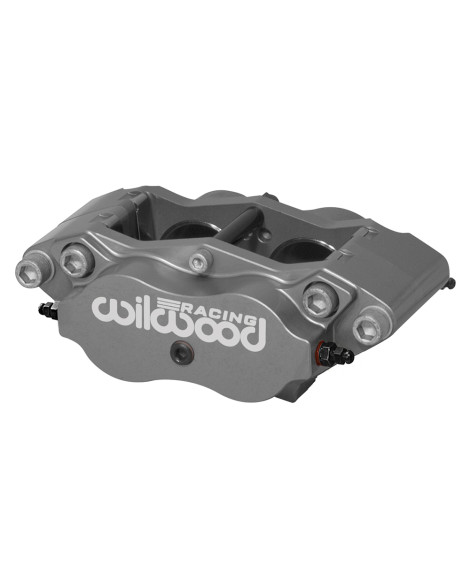

Wilwood Billet Narrow Dynalite Radial Mount Caliper 120-13405-SI

CALIPER,BNDLR,1.75,.38 ROTOR,SPRINT ANO,SIDE INLET, Anodize

Billet Narrow Dynalite Radial Mount

Caliper No: 120-13405-SI

Pistons

Piston Count 4

Piston Area (in²) 4.80

Piston Type Stainless

Dust Boot No

Rotor Dimensions

Rotor Width (in) 0.38

Rotor Diameter(in) 12.19

Pad Dimensions

Pad Area (in²) 6.36

Pad Volume (in³) 3

Duty Rating & Material

Material Billet Aluminium

Weight(Lbs) 3.2

Colours & Finish

Colour Anodize

Finish Type III Anodize

Mounting

Mount Center(in) 4.75

Mount Side Universal

Mount Type Radial

UPC Number UPC 889545080728

120-13405-SI - Product Description

Billet Narrow Dynalite Radial Mount

Wilwood's venerable DynaLite calipers are used in all forms of racing, and the latest Billet Narrow Dynalite Radial Mount (NDLR) series are better than ever. Starting at just 3.20 pounds, this compact and lightweight caliper now incorporates a more rigid radial mount design. Engineered with a spacer-less body specifically for .38”, .810” and 1.00" width rotors and a center bridge bolt adding to overall caliper strength and positive retention of the top-loaded pads. A durable aluminum-oxide ceramic Mil-Spec Type III hard-anodized finish further enhances the durability of the caliper by resisting bore wear and surface abrasion.

Billet NDLR calipers can be directly mounted over studs on a 4.75" center, or used with a radial mount bracket kit in place of a tab-mount caliper. Internal damping springs, internal fluid crossover, controlled retraction in-bore seals, and 3/8” cross bolts for added strength and rigidity all adds up to consistent pedal feel from start to finish. Uses type 7816 brake pads with many Wilwood compound options to fine-tune your driving style and track conditions.

The Billet NDLR caliper is a compact, lightweight, and rugged caliper that provides strong clamping force from four stainless cup pistons. The bodies are fully CNC machined from billet with internal fluid ports that eliminate external fluid tubes. Each caliper is equipped with two corner bleeds and outboard inlets in the correct location for a standard Inboard mount. The bridges are equipped with stainless steel anti-rattle wear plates. These plates reduce bridge wear and provide smooth, rattle free operation of the pads. A center bridge bolt adds overall caliper strength and positive retention of the top loaded pads.

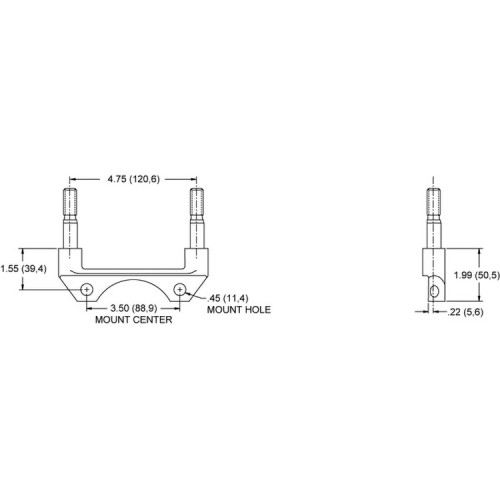

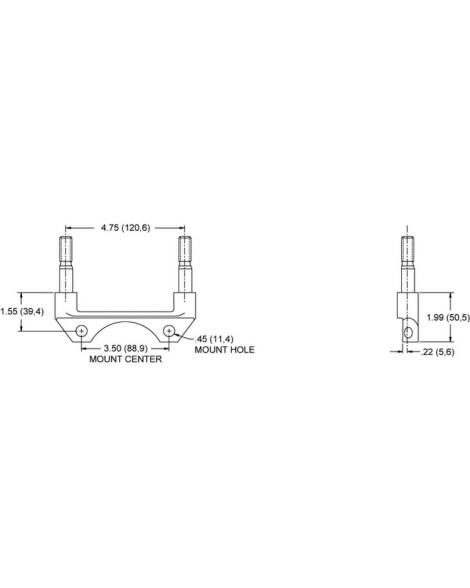

All Billet NDLR calipers are designed for long service using the 0.63” (16,0 mm) thick 7816 style brake pads. These pads are available in many different PolyMatrix compounds to provide the correct brake torque and heat range for any high performance or competition application. Radial mount bracket kits are used to install a radial mount caliper in place of a tab mount caliper. Brackets are available for both Sprint and Midget Inboard and Dirt Late Model applications for various rotor diameters.

Product Specifications

Rotor Compatibility

Rotor Width (in) 0.38

Maximum Rotor Width (in) 0.38

Minimum Rotor Width (in) 0.32

Maximum Rotor Diameter(in) 12.19

Minimum Rotor Diameter(in) 11.75

Brake Pad Specifications

Brake Pad Type 1 7816

Brake Pad Type 2 7216

Brake Pad Type 3 N-A

Total Pad Area (in²) 6.36

Total Pad Volume (in³) 3

Piston Specifications

Piston 1 Bore (in) 1.75

Piston 2 Bore (in) 1.75

Total Piston Area (in²) 4.80

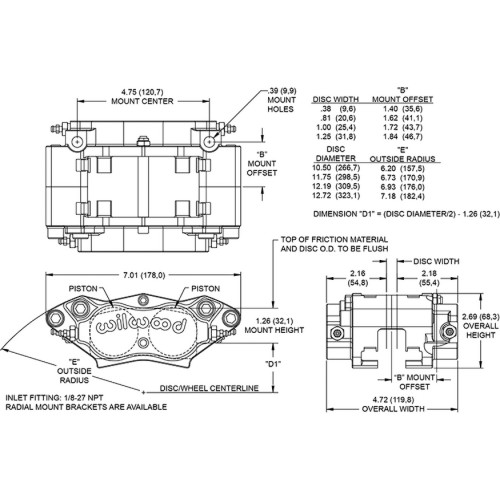

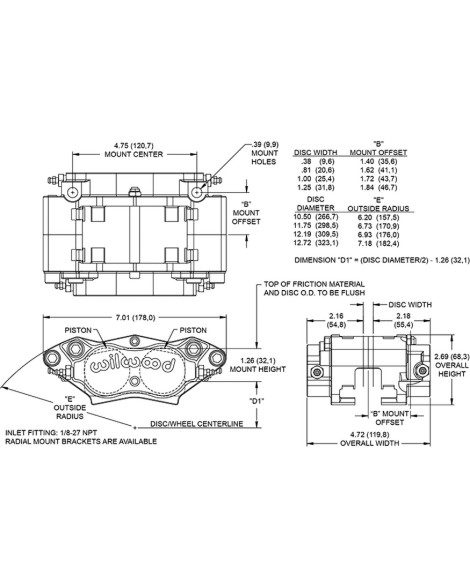

Mounting Specifications

Mount Type Radial

Mount Side Universal

Mount Center(in) 4.75

Mount Hole Size(in) 0.39

Mount Height(in) 1.24

Inlet Thread Size 1/8-27 NPT

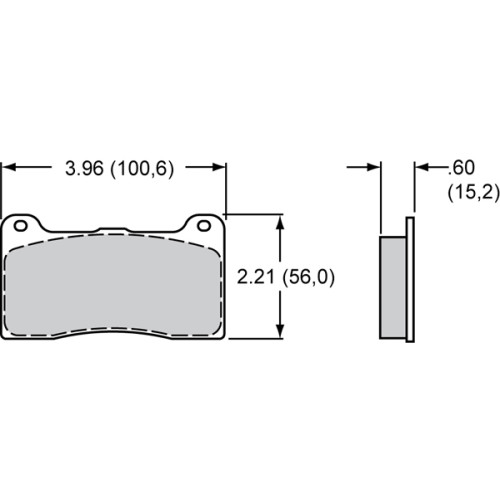

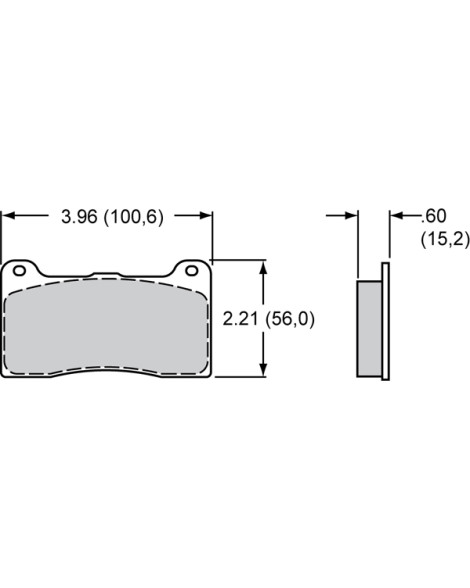

Pad Dimensions & Part Numbers

150-8946K 7816 BP-10

150-20-7816K 7816 BP-20

150-28-7816K 7816 BP-28

150-14776K 7816 BP-30

150-35-7816K 7816 BP-35

150-12248K 7816 BP-40

15B-7264K 7816 PolyMatrix B

Parts & Accessories

O-Ring Kit 130-2655

Replacement Dust Boot N-A

Replacement Piston 1 200-7531

Replacement Piston 2 200-7531

Replacement Piston 3 N-A

Replacement Piston 4 N-A

Cross-Over O-Ring Kit 130-10540

Bridge Bolt Kit 230-9982

Wear Plate L/H 300-5876

Wear Plate R/H 300-5876

Pad Retainer N-A

Bleed Screw Kit 220-0627

Self Bleeder Tube N-A

Cross-Over Tube N-A
