Wilwood Forged Superlite 6 Radial Mount Caliper Left Hand 120-13236

CALIPER,FSL6R,1.62/1.12/1.12,1.25 ROTOR L/H,ANO

Forged Superlite 6 Radial Mount

Caliper No: 120-13236

Pistons

Piston Count 6

Piston Area (in²) 4.04

Piston Type Stainless

Dust Boot No

Rotor Dimensions

Rotor Width (in) 1.25

Rotor Diameter(in) 14.00

Pad Dimensions

Pad Area (in²) 8.2

Pad Volume (in³) 4.9

Duty Rating & Material

Material Forged Aluminium

Weight(Lbs) 5.4

Colours & Finish

Colour Anodize

Finish Type III Anodize

Mounting

Mount Center(in) 5.98

Mount Side Left Hand

Mount Type Radial

UPC Number UPC 889545003116

120-13236 - Product Description

Forged Superlite 6 Radial Mount

The Superlite 6R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL6R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required.

The FSL6R has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow differential bore models to have a left hand and right hand orientation, but no leading or trailing configuration is required. The most noteworthy feature of all the FSL6R caliper models is the exceptional strength and reduced weight of the forging. With assembled weights just at 4.4 pounds, the caliper body design in itself is a product of computer generated solid modeling and stress analysis technology. Each caliper features closed end bridges with a radial transition down to the main body and piston bore housings. The elimination of machined steps and sharp shoulders in this critical area provides a measurable increase in overall body strength and resistance to deflection under load. Every FSL6R body is stress-flow forged from a premium grade aluminum alloy billet.

Product Specifications

Rotor Compatibility

Rotor Width (in) 1.25

Maximum Rotor Width (in) 1.35

Minimum Rotor Width (in) 1.15

Maximum Rotor Diameter(in) 14.00

Minimum Rotor Diameter(in) 11.75

Brake Pad Specifications

Brake Pad Type 1 7420

Brake Pad Type 2 N-A

Brake Pad Type 3 N-A

Total Pad Area (in²) 8.2

Total Pad Volume (in³) 4.9

Piston Specifications

Piston 1 Bore (in) 1.62

Piston 2 Bore (in) 1.12

Piston 3 Bore (in) 1.12

Total Piston Area (in²) 4.04

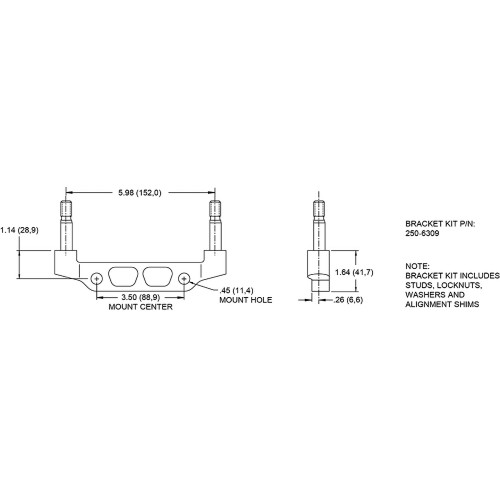

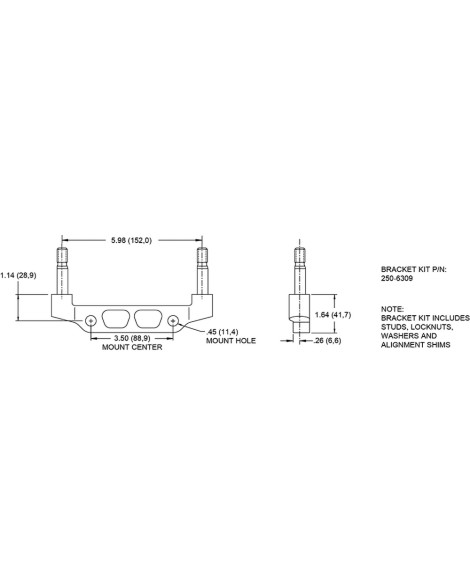

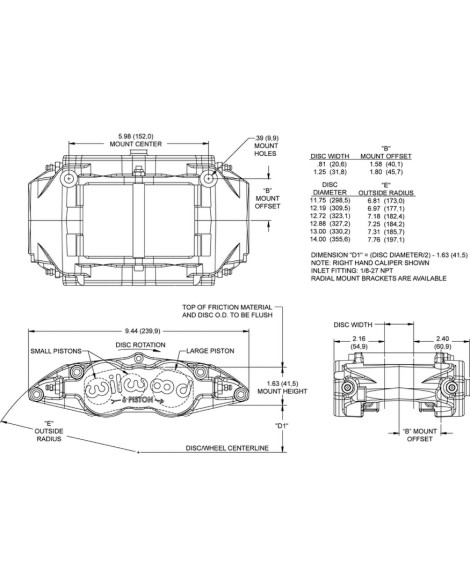

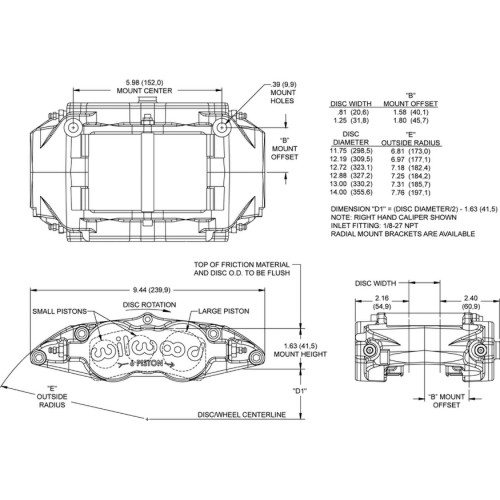

Mounting Specifications

Mount Type Radial

Mount Side Left Hand

Mount Center(in) 5.98

Mount Hole Size(in) 0.39

Mount Height(in) 1.63

Inlet Thread Size 1/8-27 NPT

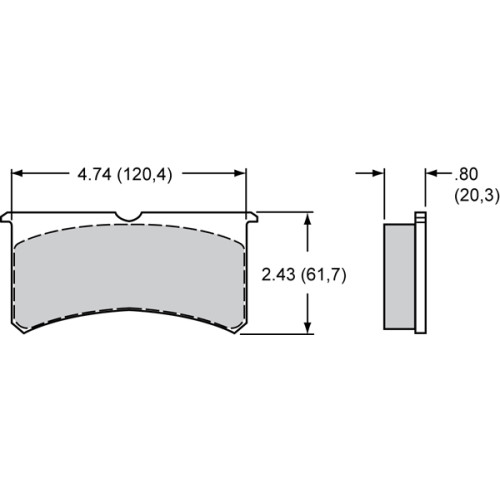

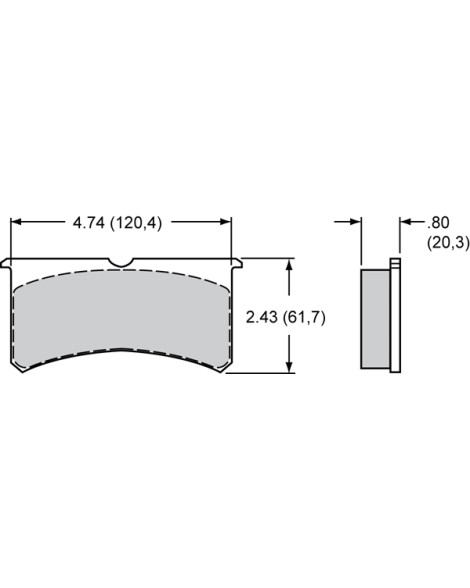

Pad Dimensions & Part Numbers

Non-Bedded Pads - by Compounds

150-8854K 7420 BP-10

150-20-7420K 7420 BP-20

150-28-7420K 7420 BP-28

150-14773K 7420 BP-30

150-35-7420K 7420 BP-35

150-12245K 7420 BP-40

150-Q-7420K 7420 BP-Q

15A-5938K 7420 PolyMatrix A

15E-6084K 7420 PolyMatrix E

15H-8114K 7420 PolyMatrix H

Bedded-In Pads - by Compounds

150-14773K-B 7420 BP-30

150-12245K-B 7420 BP-40

15A-5938K-B 7420 PolyMatrix A

15B-5939K-B 7420 PolyMatrix B

15H-8114K-B 7420 PolyMatrix H

Parts & Accessories

O-Ring Kit 130-5972

Replacement Dust Boot N-A

Replacement Piston 1 200-7519

Replacement Piston 2 200-7513

Replacement Piston 3 200-7513

Replacement Piston 4 N-A

Cross-Over O-Ring Kit 130-10540

Bridge Bolt Kit 230-5978

Wear Plate L/H 300-5923

Wear Plate R/H 300-5922

Pad Retainer N-A

Bleed Screw Kit 220-0627

Self Bleeder Tube N-A

Cross-Over Tube N-A

VIP Motorsport is a UK Stockist of Wilwood products. Contact us for a lead time.
