Wilwood GP200 Billet 2 Piston Caliper 0.25 120-16888

CALIPER,GP200,1.25,.25 ROTOR,2.375 MT 3/8-24 INLET,ANO

Pistons

Piston Count 2

Piston Area (in²) 1.23

Piston Type Stainless

Dust Boot No

Rotor Dimensions

Rotor Width (in) 0.25

Rotor Diameter(in) 11.00

Pad Dimensions

Pad Area (in²) 1.83

Pad Volume (in³) 0.34

Duty Rating & Material

Material Billet Aluminium

Weight(Lbs) 0.9

Colors & Finish

Color Anodize

Finish Type III Anodize

Mounting

Mount Center(in) 2.38

Mount Side Universal

Mount Type Lug

UPC Number

UPC 889545106565

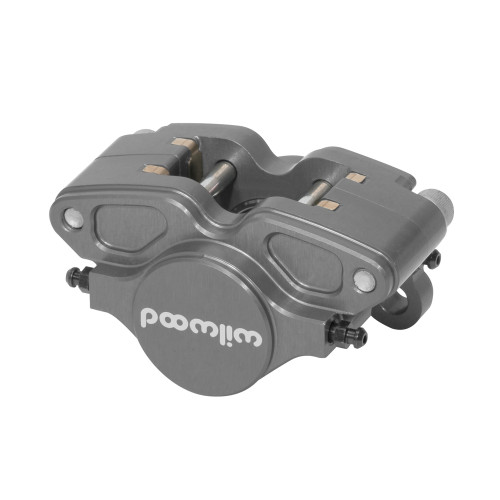

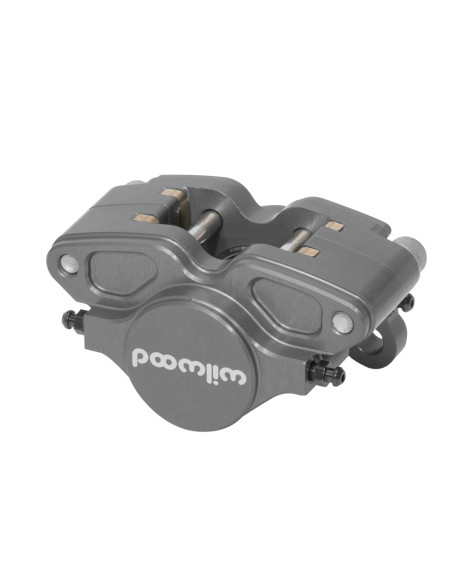

GP200 Caliper

The GP 200 billet caliper represents the newest lightweight (only .90 pounds) caliper specifically designed for tight fit applications while utilizing a standard 2.38” lug mount. Now available (depending on part number) in either 1/8-27 NPT or a 3/8-24 fluid inlets. The GP 200 combines superior strength with a type III hard anodized finish along with several new performance features. The strength of the GP 200 is a combination of process and design. GP 200 calipers are fully CNC machined from premium grade alloy billet. The FEA generated body design incorporates a highly fortified transition between the piston housings and the bridges. Strengthening this critical area of the caliper has substantially increased its resistance to deflection and body separation under load.

Structural deflection and volume displacement testing have proven the efficiency of this innovative design. Reductions in overall deflection, and the subsequent decreases in fluid volume displacement, translate to increased clamping efficiency with less pedal travel. The bottom line is a firm, responsive pedal with outstanding stopping power. The GP 200A uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads. The heavy wall sectional thickness improves pedal firmness and adds to the overall clamping efficiency by eliminating piston backside deflection at higher system pressures.

Every GP 200 caliper is also fitted with replaceable stainless steel SRS bridge plates. SRS plates eliminate the bridge wear caused by pad gouging to extend the service life of the caliper body. The spring-loading action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal during engagement. The package is completed with internal fluid passages and four corner bleed screws that allow mounting in any front, rear, left, or right side position.

Rotor Compatibility

Rotor Width (in) 0.25

Maximum Rotor Width (in) 0.25

Minimum Rotor Width (in) 0.19

Maximum Rotor Diameter(in) 11.00

Minimum Rotor Diameter(in) 8.00

Brake Pad Specifications

Brake Pad Type 1 4908

Total Pad Area (in²) 1.83

Total Pad Volume (in³) 0.34

Piston Specifications

Piston 1 Bore (in) 1.25

Total Piston Area (in²) 1.23

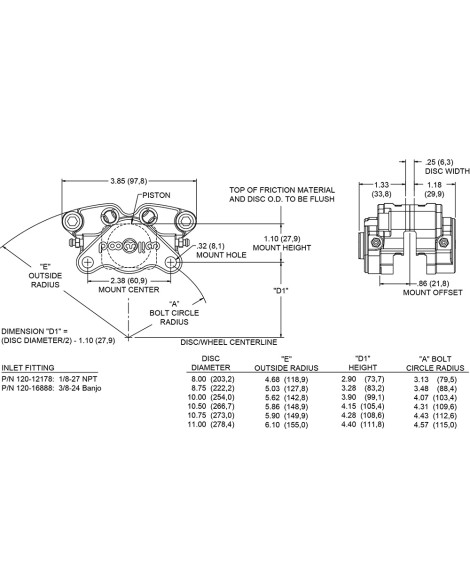

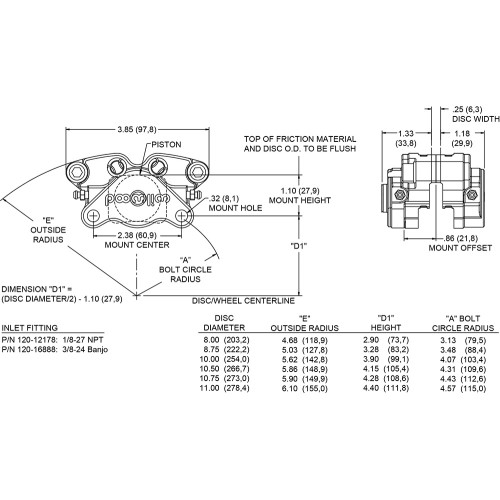

Mounting Specifications

Mount Type Lug

Mount Side Universal

Mount Center(in) 2.38

Mount Hole Size(in) 0.32

Mount Height(in) 1.10

Inlet Thread Size 3/8-24

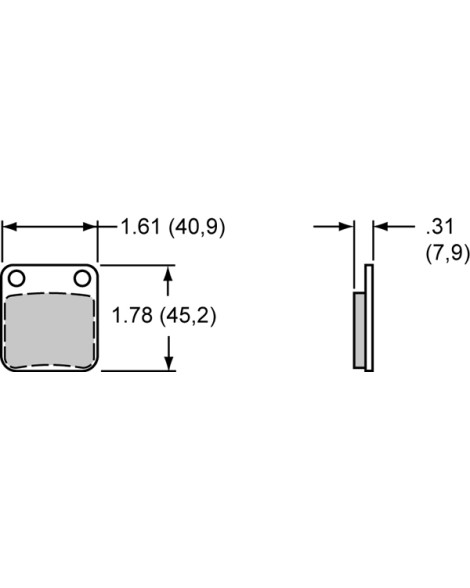

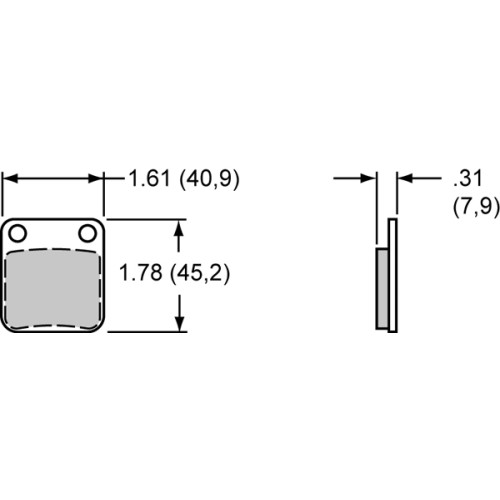

Pad Dimensions & Part Numbers

Axle Set P/N / Pad Type /  Compound

Non-Bedded Pads - by Compounds

150-28-4908K / 4908 / BP-28

150-12270K / 4908 / Purple

VIP Motorsport is a UK Stockist of Wilwood products. Contact us for a lead time.
