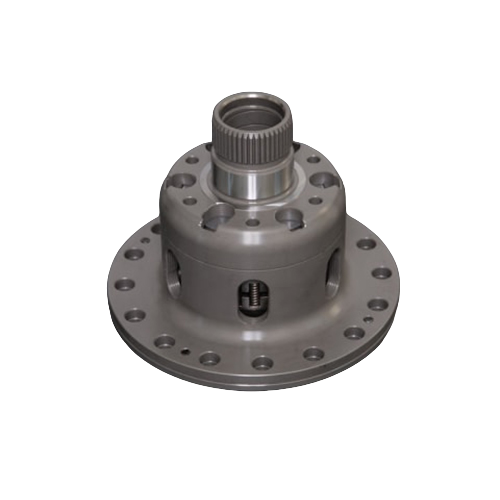

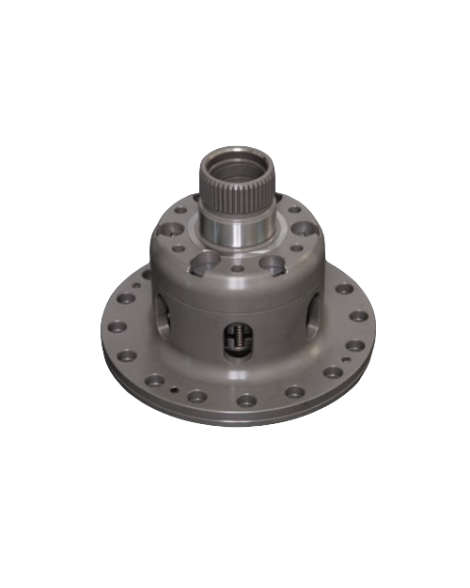

Cusco Type RS LSD 1.5 Way 35/20 Front for Toyota GR Yaris 20+ LSD 1C7 V15 / LSD1C7V15

Type RS Limited Slip Differential

Confirmed Applications

TOYOTA GR Yaris 1.6L AWD GXPA16 20-23 RZ / RC

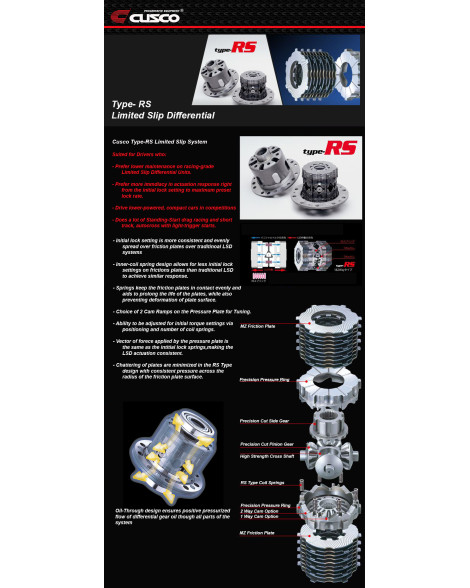

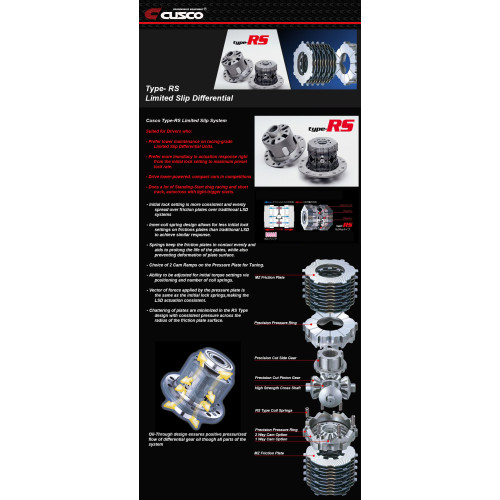

Cusco Type-RS Limited Slip System

Suited for Drivers Who:

Prefer lower maintenance on racing-grade Limited Slip Differential Units.

Prefer more immediacy in actuation response right from the initial lock setting to maximum preset lock rate.

Drive lower-powered, compact cars in competitions

Does a lot of Standing-Start drag racing and short track, autocross with light-trigger starts

Features

Initial lock setting is more consistent and evenly spread over friction plates over traditional LSD systems

Inner-coil spring design allows for less initial lock settings on frictions plates than traditional LSD to achieve similar response.

Springs keep the friction plates in contact evenly and aids to prolong the life of the plates, while also preventing deformation of plate surface.

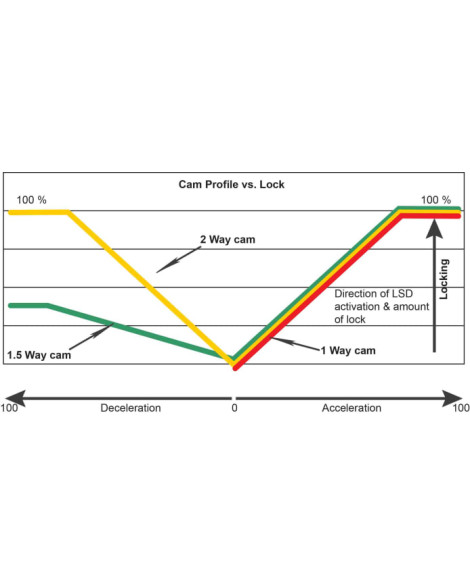

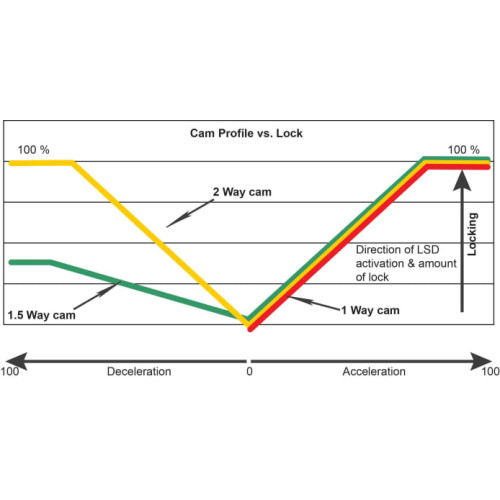

Choice of 2 Cam Ramps on the Pressure Plate for Tuning.

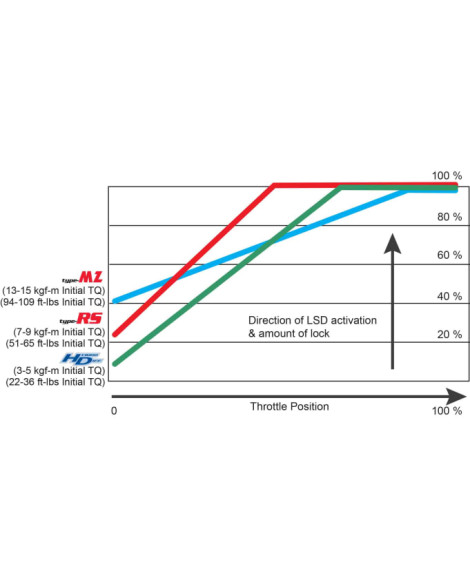

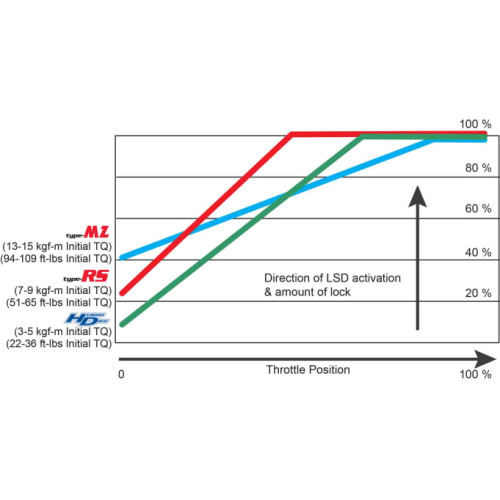

Ability to be adjusted for initial torque settings via positioning and number of coil springs.

Vector of force applied by the pressure plate is the same as the initial lock springs, making the LSD actuation consistent.

Chattering of plates are minimized in the RS Type design with consistent pressure across the radius of the friction surface.

Oil-Through design ensures positive pressurized flow of differential gear oil through all parts of the system.

VIP Motorsport is an official UK & European dealer of Cusco products. Contact us for a lead time. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED.
