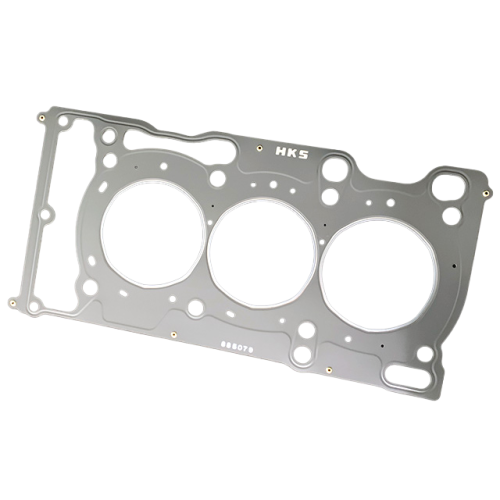

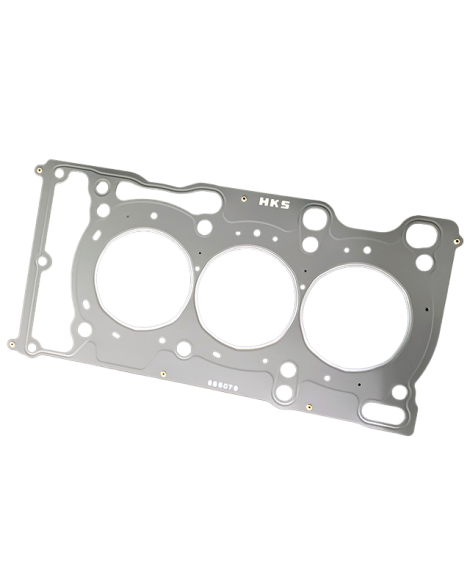

HKS High Performance Head Gasket 0.8mm 89mm Bore for Toyota GR Yaris 20+ G16E-GTS

Engine G16E-GTS

Thickness 0.8mm

Compression Ratio ε=10.6

Bore Dia. 89 (not round)

Part Number 23002-AT003

Remarks

Stock thickness t=0.85

METAL HEAD GASKET

GROMMET TYPE HEAD GASKET

FA20 engine tuning through turbo and supercharging is becoming more and more popular. In these cases, many people will eventually experience the issue of head gasket failure.

To address this, HKS is pleased to announce the release of a new grommet type head gasket which takes things a step further than the existing stopper type gaskets.

GROMMET TYPE HEAD GASKET (t=0.8) for GR YARIS/G16E-GTS

It is a grommet-type gasket that can be used even if the boost is further increased with G16E-GTS for GR YARIS with high combustion pressure.

It improves the sealing limit by securing the surface pressure of the gasket sealing surface by employing the grommet structure.

It put the shims at either end of the engine deck to apply the load evenly when tightening the head bolt to prevent the distortion of the cylinder head.

VIP Motorsport is an official stockist of HKS Exhausts & Products in the UK & Europe. Image may not be accurate. Contact us for a lead time.
