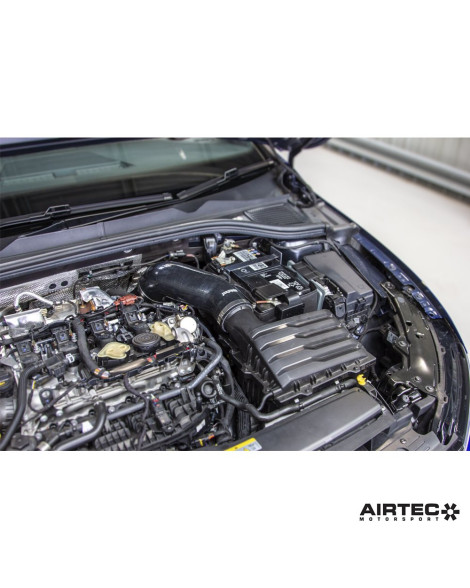

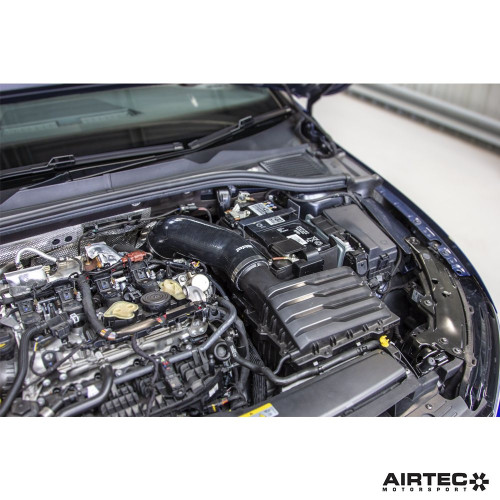

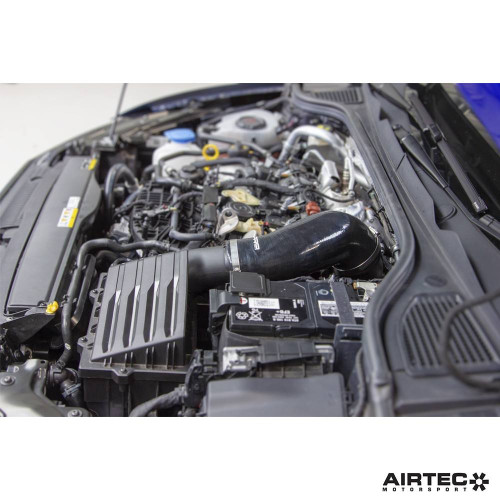

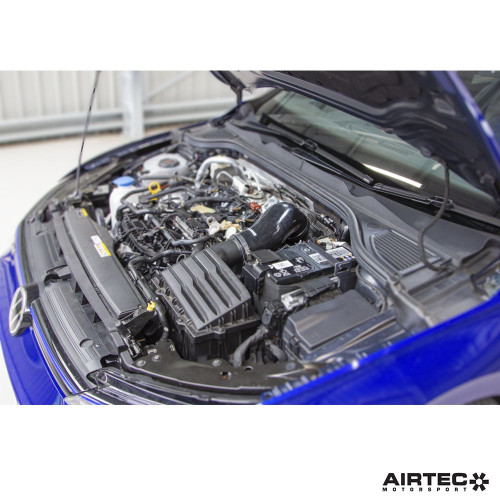

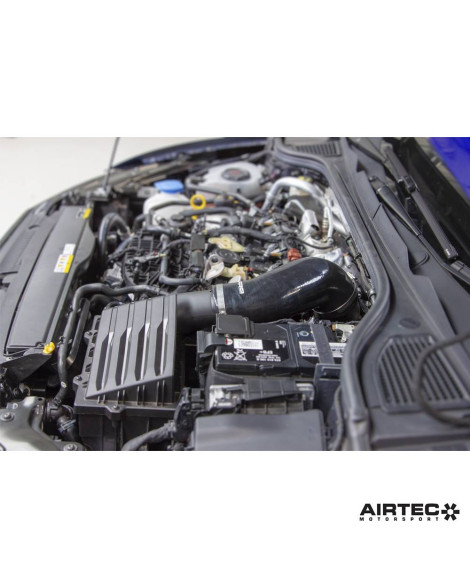

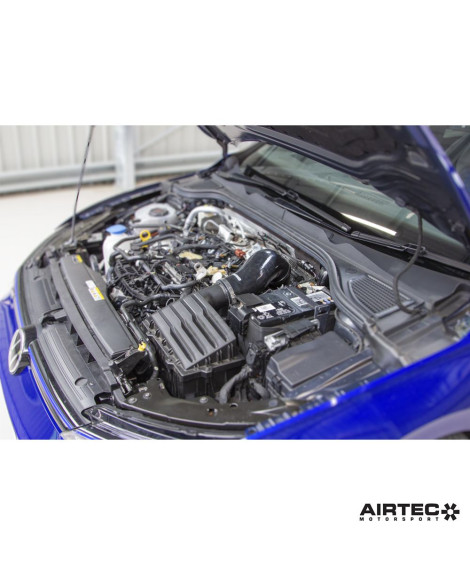

AIRTEC MOTORSPORT TURBO ELBOW FOR EA888 GEN 4 (300-320PS)

As part of our expanding VAG product range, AIRTEC Motorsport is proud to launch our enlarged turbo inlet elbow upgrade for the MQB Evo engine (300-320ps), suitable for track or fast road use.

A direct replacement part that offers increases in performance and response, the enlarged turbo inlet elbow features a freer-flowing design with an increased internal diameter.

How it works

The original elbow features a constant 80mm diameter throughout, which limits flow and capacity. Our AIRTEC Motorsport direct replacement kit features a cast aluminium elbow and Pro Hoses silicone hose with a larger 90mm diameter throughout, until it tapers down to meet the 80mm air box, which offers a 27% increase in cross sectional area. The increased volume and improved design works to reduce restriction and improve flow to the turbo, providing an increase in throttle response.

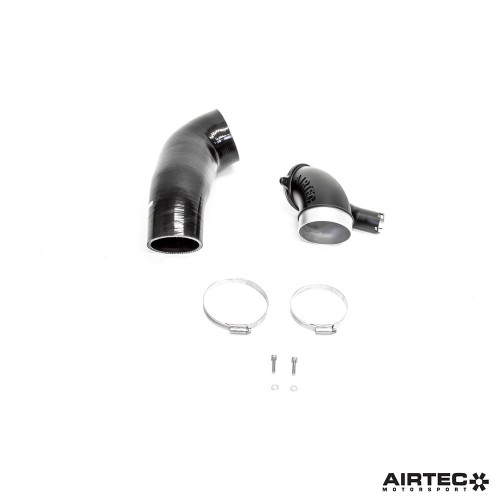

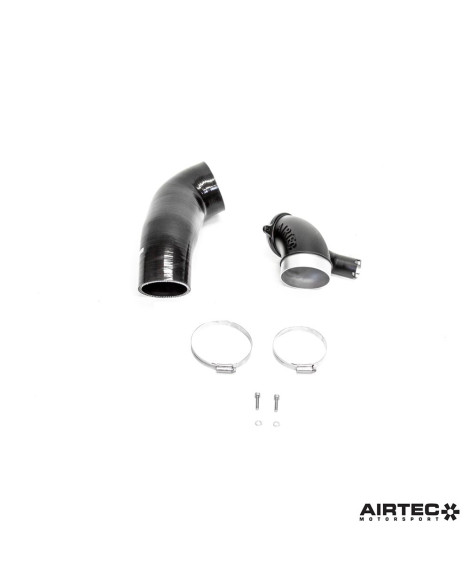

The elbow upgrade includes all fixtures and fittings, as well as detailed instructions.

Dimensions:

OEM Turbo Elbow:

Diameter: 80mm

Cross sectional area: 5,027mm²

AIRTEC Motorsport Turbo Elbow:

Diameter: 90mm

Cross sectional area: 6,362mm²

Fitment:

Audi S3 8Y – 2020 onwards

Cupra Leon Mk4 300 TSI FW – 2020 onwards

Cupra Formentor 310PS – 2020 onwards

VW Arteon R 2.0 TSI 320ps – 2020 onwards

VW Golf Mk 8 GTI Clubsport – 2020 onwards

VW Golf Mk8 R – 2020 onwards

VW Tiguan II R 2.0 TSI 320ps – 2020 onwards

Features:

27% increase in cross sectional area

Smoother, freer-flowing design

Improves airflow to the turbo

Increases throttle response

Direct replacement fitment

Includes all fixtures and fittings

Features detailed fitting guide

AIRTEC Part No: ATMSVAG10

VIP Motorsport is an official UK dealer of Airtec Motorsport products. All Airtec intercoolers are built to order and have a rough lead time of up to two working weeks.
