Mishimoto Adjustable Fan Controller Kit

Take full control of your electric cooling fan with the Mishimoto Adjustable Fan Controller Kit! This kit is applicable for any 12v electric fan and includes all necessary components for installation. This kit can be purchased with a probe-style temperature sensor or with a 1/8" NPT thread-in sensor to fit the needs of any project. The Mishimoto Fan Controller features adjustable activation from 66°C to 116°C and deactivates once temperatures are reduced by 6°C. This controller includes a built-in A/C override feature and is designed for use with 1–2 electric fans drawing a combined 25 amps or less. The Mishimoto Adjustable Fan Controller Kit includes the Mishimoto Lifetime Warranty.

• Applicable for any vehicle with a 12v electric fan
• Adjustable activation temperature from 66°C to 116°C
• Includes probe or 1/8" NPT style temperature sensor to fit your needs
• Includes 7 ft of wire for installation in nearly any size vehicle
• Built-in A/C override feature
• Designed for use with 1–2 electric fans drawing a combined 25 amps or less
• Includes wiring connectors and hardware for installation
• Mishimoto Lifetime Warranty

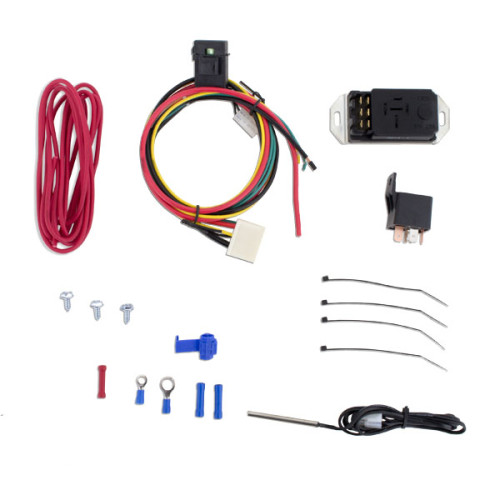

PURCHASE INCLUDES

Adjustable Relay

Push-In Radiator Probe or

1/8" NPT Radiator Probe

Wiring Harness with 7.5' of Power Wire

Mounting Hardware

(4) Zip Ties

(3) Wire Crimp Connectors

(1) Wire Quick-Splice Connector

(2) Ring Terminals

Mishimoto Lifetime Warranty

ACTIVATION TEMPERATURE

66°C–116°C

MAXIMUM CONTINUOUS AMP DRAW

25 amps
