Alta Performance Rear Control Arms for Mini R53 / R56 Cooper / Cooper S 02-13 - AMP-SUS-100

Part Number

AMP-SUS-100

ALTA Rear Control Arms add adjustability for camber and toe to the rear end of your MINI which is especially helpful on lowered vehicles.

DIRECT REPLACEMENT

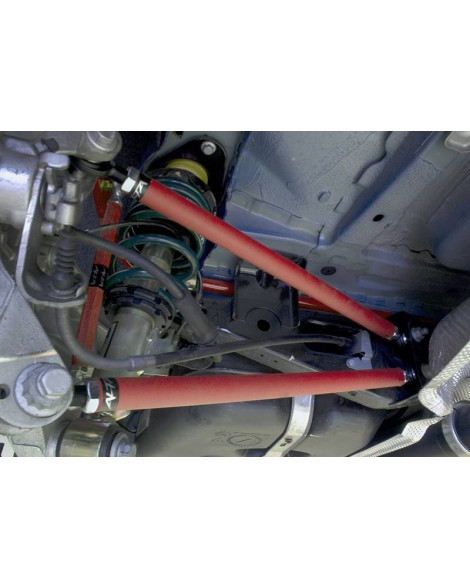

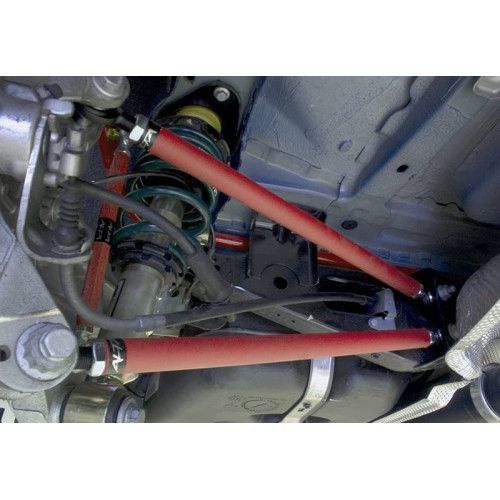

ALTA Rear Control Arms directly replace your rear lateral links. The solid design of the ALTA control arms improve traction and handling. As well as giving you far greater control over camber and toe settings on your MINI. Once installed, ALTA control arms are adjustable for fine tuning of camber and toe without having to remove and install the linkage. Simply loosen the adjustment lock nuts and twist the center section to the exact setting you desire. These are easily installed when adding other suspension products like springs, coilovers or swaybars.

CONSTRUCTION

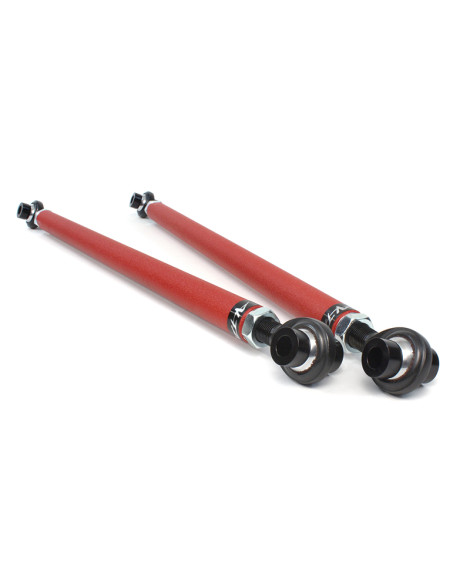

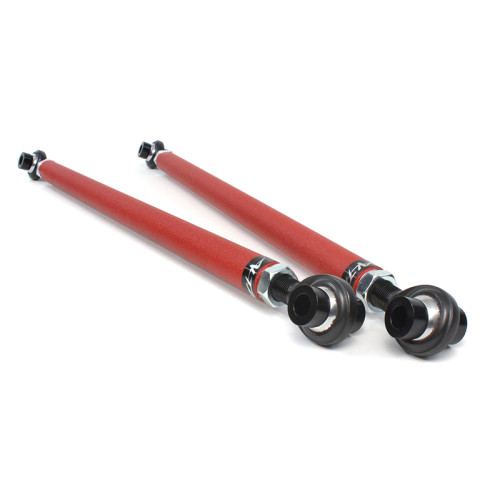

The ALTA Rear Control Arms are CNC machined from 6061 aluminum rod and then heavily texture powder coated for corrosion resistance as well as adding some color to your otherwise boring undercarriage. They feature Teflon-lined spherical rod ends for a solid connection, greater articulation and prevent dynamic alignment changes that occur with the rubber bushings found in the OEM control arms.

BEARINGS

The ALTA Performance Control arms use an aircraft quality, spherical bearing type of rod end. This solid type connection still allows for smooth and precise movement of the control arm through a far larger range of articulation. Our rod ends use injected Nylon around the center of the ball to keep the ball joint quiet as the part ages.

QUAD ARMS

Two sets of arms can be purchased to replace both sets of upper and lower control arms. Further increasing rear end adjustment, removing even more deflection from the OEM rubber bushings and reducing even more weight from your MINI. Please note on models with Xenon style headlamps the installer will have to modify the mounting for the leveling sensor. Contact your ALTA dealer or our Tech Dept for additional details.

HARDWARE

The ALTA Rear Control Arms use high quality hardware including corrosion resistant spacers and high quality Grade 8 adjustment nuts.

SPECIFICATIONS

Rod Construction 6061-T6 Aluminium Bar Stock

Rod Finish Wrinkle red powder coat

Rod End Nylon lined spherical bearings

Spacers Machined Aluminium

Approximate Camber Adjustment 0 to -4

Approximate Track Adjustment + or -2

IN THE BOX

(1) Pair of ALTA Control Arms

Mounting Hardware

Instructions

Warranty

Stickers

To replace all four control arms, order 2 sets.

COMPATIBILITY

2002-2006 Cooper Yes

2002-2006 Cooper S Yes

2004-2013 Cooper Convertible Yes

2004-2013 Cooper S Convertible Yes

2008-2013 Cooper Clubman Yes

2008-2013 Cooper S Clubman Yes

2012-2013 Cooper Coupe Yes

2012-2013 Cooper S Coupe Yes

2012-2013 Cooper Roadster Yes

2012-2013 Cooper S Roadster Yes

2009-2013 JCW Yes

2010-2013 JCW Convertible Yes

2009-2013 JCW Clubman Yes

2012-2013 JCW Coupe Yes

2012-2013 JCW Roadster Yes

Countryman No

Paceman No

HID/Xenon Headlights Yes, see note.

Please note on models with Xenon style headlamps the installer will have to modify the mounting for the leveling sensor. Select live chat at the bottom of this page for details.
