HFM.PARTS 354mm Front Two Piece Brake Upgrade Kit Suits R33 GTR

SKU: RKGTR3543

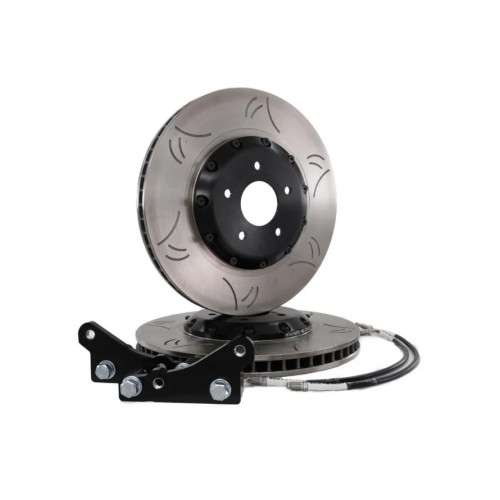

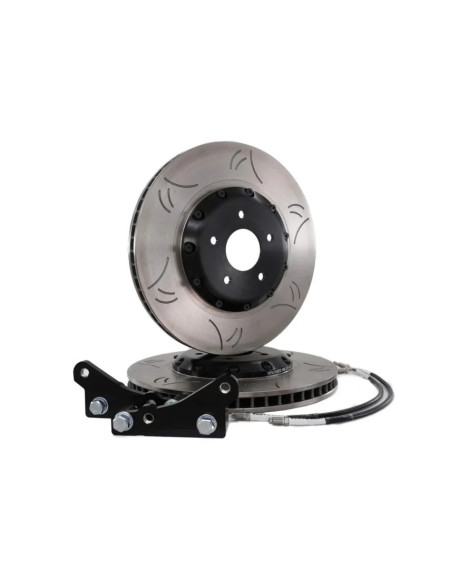

HFM.Parts 354mm Front Rotor Kit is the ultimate GTR rotor upgrade. Designed in Australia, they feature a striking slot design that matches HFM.Parts Rear Rotors. By using HFM.Parts Australian designed and developed custom caliper adapter set, you can retain your OEM calipers making this a very affordable big brake upgrade. With the addition of Conelock Nuts and Shoulder Bolts and HFM.Parts Braided Brake lines you’ll see an increase in performance, reliability and longevity. Please note the Brake Lines included are designed to replace your existing hard line and is extended to accommodate the larger rotor.

You can also pair this kit with HFM.Parts 340mm Rear Rotor Kit for a complete GTR rotor upgrade.

DIMENSIONS.

Diameter 354 mm

Height 53.8 mm

Thickness 30 mm

Minimum Thickness 28 mm

Centre Hole 68 mm

Stud Holes 5

Weight 11.2kg/rotor

FEATURES.

Black Anodised Hub

Hub Centric Backing

Conelock Nuts & Shoulder Bolts

Fitment:

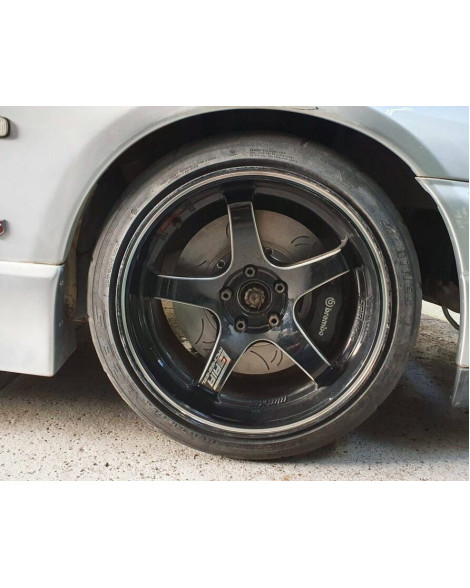

Nissan Skyline R33 GTR

Note:

Minimum 18″ Wheels

OEM Calipers

IN THE BOX

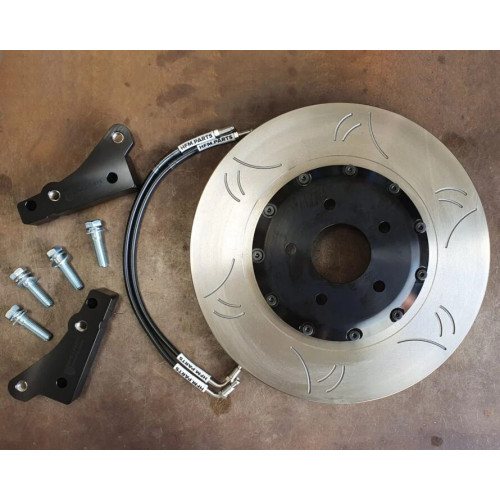

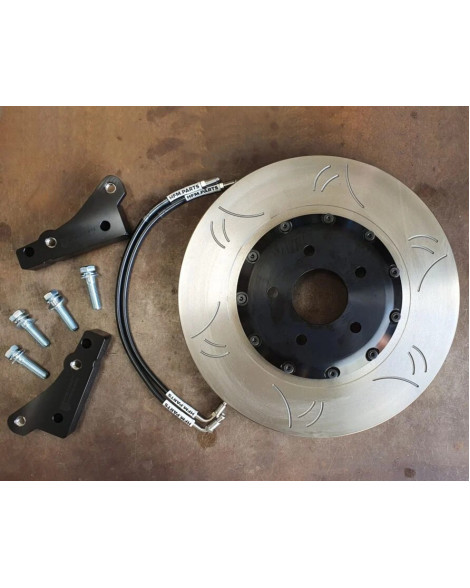

1x Pair HFM.Parts 354mm Two Piece Rotors

1x Pair HFM.Parts Caliper Adapters

1x Pair Hard Line Delete Braided Brake Lines

High Tensile Nuts & Bolts for Fitment

FAQs

Q. Will this fit my vehicle?

A. We have only confirmed fitment for the vehicles mentioned under compatibility. If your vehicle is not listed, then we don't know if it fits.

Q. Why doesn’t this kit also suit R34 GTR?

A. Although, R33 and R34 GTR have the same rotor size and caliper. The hole sizes on the knuckles are different. R33 uses M12 and R34 uses M14. Our brake kit uses M12 bolts and holes. If you have an R33 GTR caliper on your R34 GTR, this kit would fit.

Q. This kit uses my existing caliper with a larger HFM.Parts rotor, does that mean there will there be pad overhang? If so, how much?

A. This kit works by spacing out your existing calipers, which in turn, the brake pads position will follow, to accommodate for the larger rotor. While we’ve designed this kit to have minimal pad overhang, there are no brake pads (that we’re aware of) that will fit within the original caliper and cover more surface area. You will have ~1.5mm of pad overhang when using OEM brake pads.

Q. What brake pads do you recommend?

A. You will need to use OEM or equivalent brake pads as you are using your OEM caliper. We aren’t able to advise what compunds are best suited for you as it is personal preference and depends on your vehicles purpose.

Q. Do you have replacement parts available?

A. Yes! Once you have worn out your rotors you can purchase replacement rotors sold without the aluminium hat and even new adapters should you need them.

Q. Are these rotors directional?

A. No, they are not. Regardless of the slot design, the pillars are straight veined so you can install them on either side of your car.

VIP Motorsport is a UK & European Dealer of HFM Parts. Contact us for a lead time.
