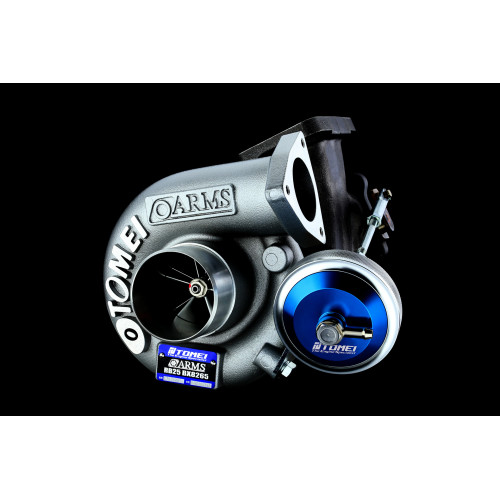

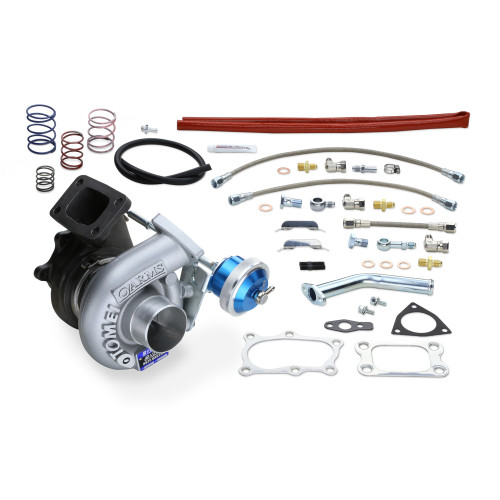

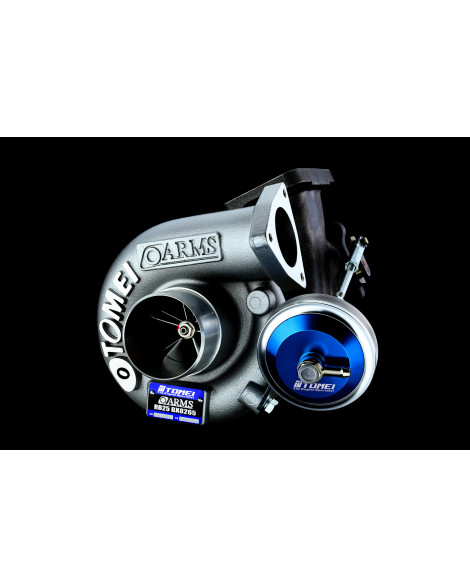

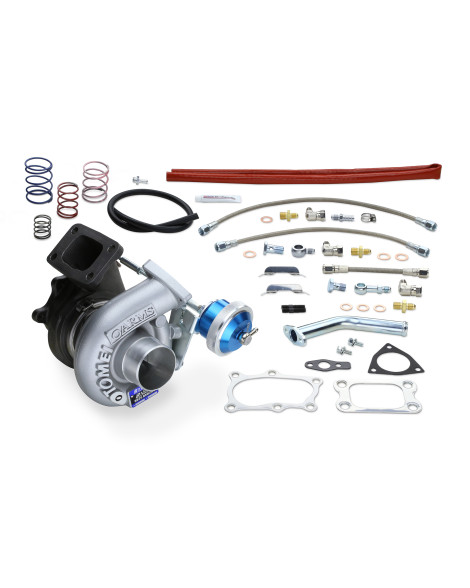

TOMEI B/B TURBOCHARGER KIT ARMS BX8265 RB25DET

PART No. TB403A-NS06A

TARGET HP (HP) 450

BEARING TYPE BALL BEARING

INITIAL BOOST SETTING (kgf/cm2) 1.0

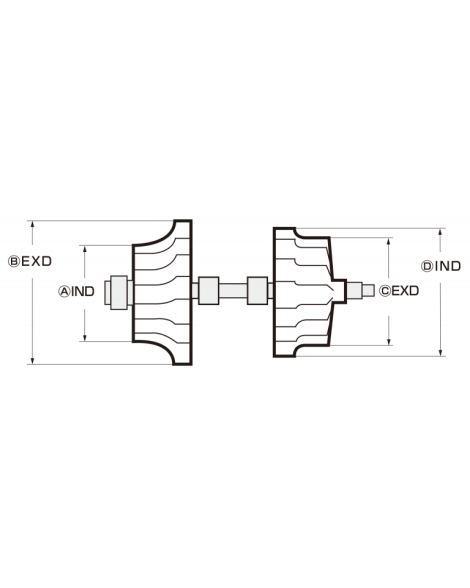

COMPRESSOR WHEEL

ⒶIND(mm) 54.8

ⒷEXD(mm) 76.2

TRIM 52

BLADES 6/6

MATERIAL A2618

PRODUCTION CNC BILLET

TURBINE WHEEL

ⒸEXD(mm) 58.8

ⒹIND(mm) 67.0

TRIM 77

BLADES 9

MATERIAL K418

PRODUCTION CAST

COMPRESSOR HOUSING

IND(mm) 55.8

EXD(mm) 42.62

A/R 0.57

TURBINE HOUSING

IND(mm) T3

EXD(mm) RB25

A/R 0.57

CNC Billet Compressor Wheel

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface area for significantly improved airflow and turbo spool.

Multi Rate Billet Actuator

Large capacity, reinforced foraged billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.

VIP Motorsport is an official stockist of Tomei Exhausts & Products in the UK & Europe. Our stock is directly linked with Tomei USA, if the item is out of stock with us it could take up to two working weeks to be received.
