HFM.Parts 324mm Front Brake Upgrade Kit for Nissan R34 GTT Skyline

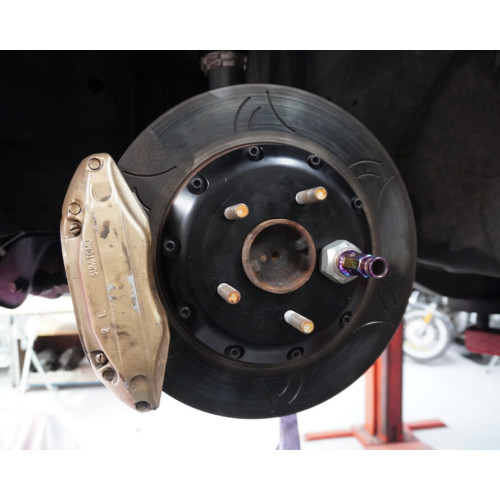

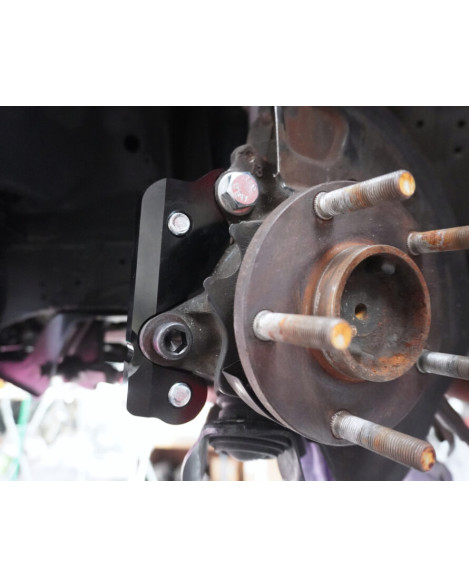

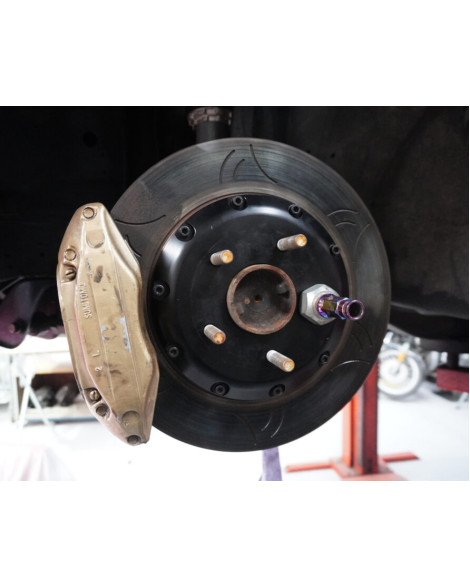

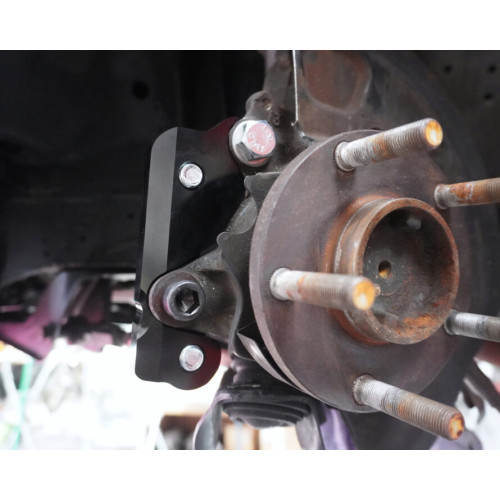

Introducing HFM.Parts 324mm Two Piece Rotors, proudly designed in Australia. These impressive rotors boast a unique slot design that matches perfectly with HFM.Parts Rear Rotors. With a 14mm increase in size from the standard OEM 310mm rotors, this upgrade is made possible with HFM.Parts Australian-designed custom caliper adapter set that allows you to use your current OEM caliper. This cost-effective big brake upgrade kit is made using T6-6061 hard anodized billet aluminium, expertly crafted into HFM.Parts Caliper Adapters and fitted with stainless steel Heli-Coils to maintain strength. The rotor surface features indentations with a slight curvature to improve cleaning and ventilation, while the black anodized aluminium hat adds to the overall look and performance of the rotor.

DIMENSIONS.

Diameter 324 mm

Height 53.8 mm

Thickness 30 mm

Minimum Thickness 28 mm

Centre Hole 68 mm

Stud Holes 5

Weight 7.4kg/rotor

REPLACEMENTS

We stand by our products. You can purchase replacement HFM.Parts 324mm Rotors without the adapters for a great price, ready when you need them.

ADDITIONAL NOTES.

(Optional) To get the most out of this kit we recommend you replace the standard brake pads with DB1346 or equivalent brake pads.

CONFIRMED FITMENT

Nissan Skyline R34 GTT

Requirements

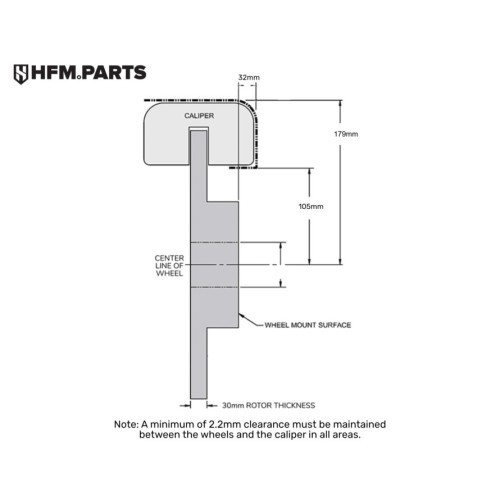

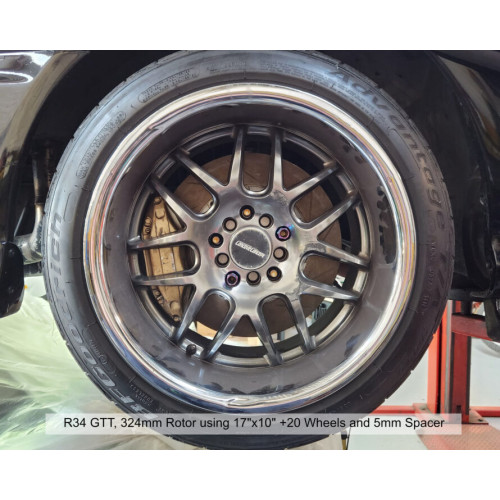

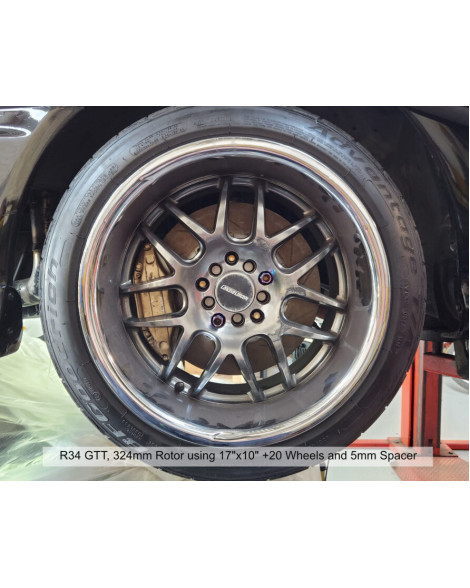

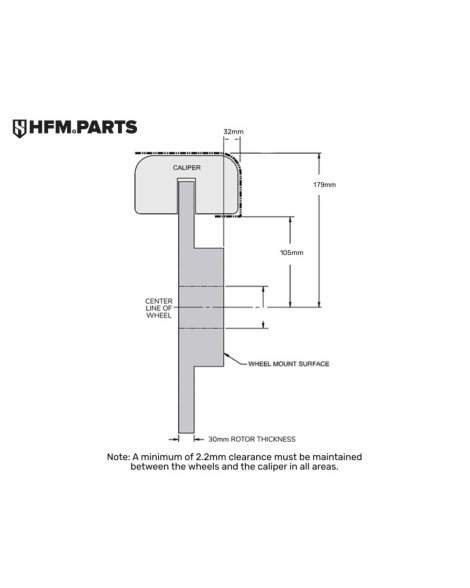

Minimum 17″ Wheels

OEM R34 GTT Calipers

*Suited only to R34 GTT’s with 310mm rotors and M14 caliper bolt holes as standard.

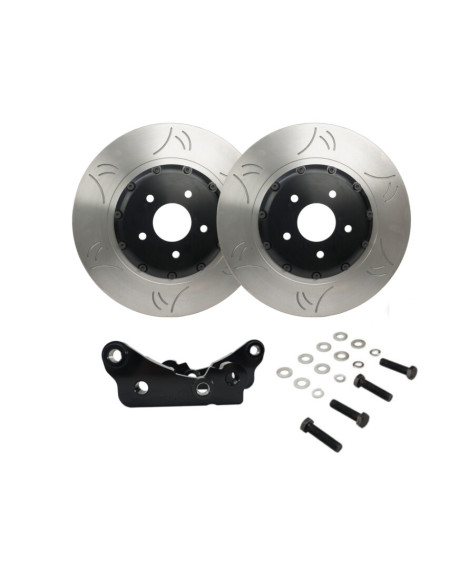

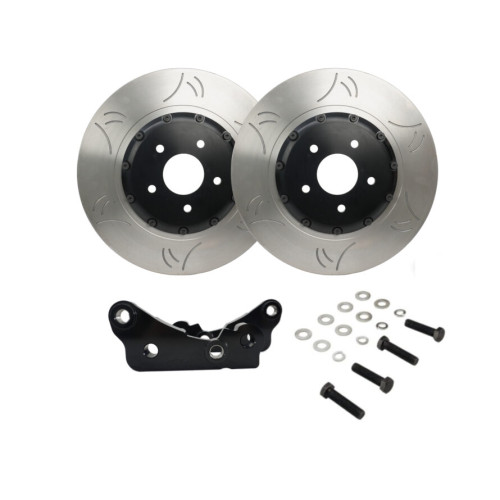

What’s in the box?

1x Pair of HFM.Parts 324mm one or two Piece Rotors

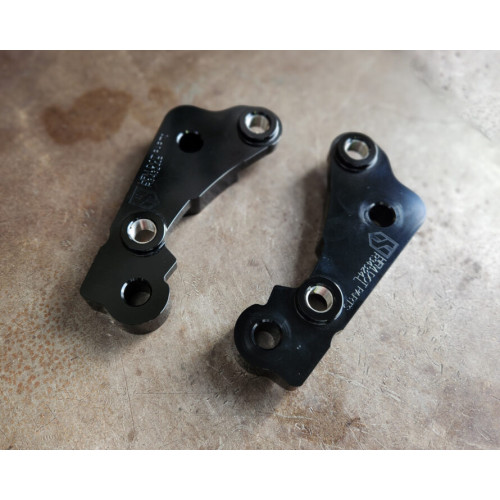

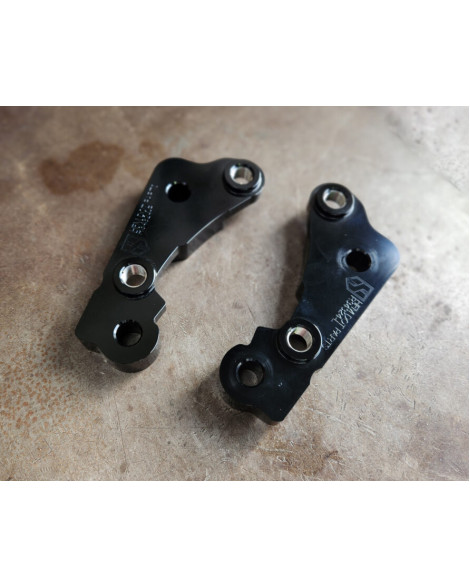

1x Pair of HFM.Parts Caliper Adapters

High Tensile Nuts & Bolts for Fitment

FAQs

Q. Are there any modifications that need to be done to fit the adaptor?

A. Yes, you are required to linish/polish the caliper or knuckle side to avoid binding. Please refer to the installation video/guide for assistance.

Q. Will the brake pads cover the entire rotor surface, or will I have “Pad Overhang”?

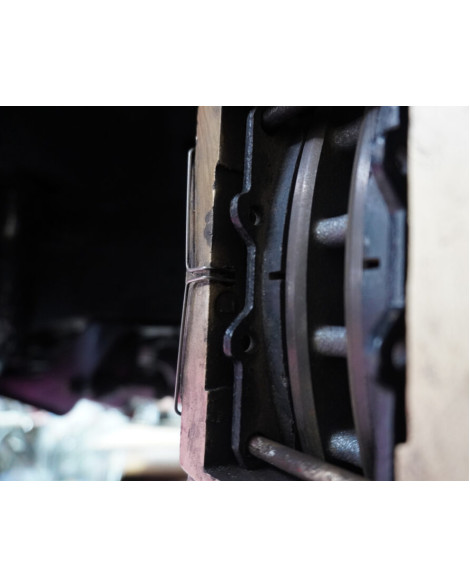

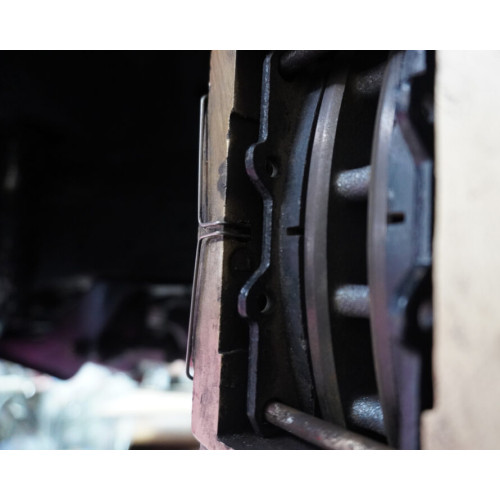

A. There will be ~1-2mm of pad overhang; please refer to the reference photo above. This is because the adaptor works by spacing out your existing calipers, which in turn, the brake pads position will follow, to accommodate the larger rotor. There are no brake pads (that we’re aware of) that will fit within the original caliper and cover more surface area.

Q. Can I use these adaptor brackets if I have aftermarket lower control arms?

A. When installed properly, this adaptor bracket sits close to the lower control arm. In general, if your car retains the OEM stopping position, there should be no interference while using this adaptor. However, we cannot confirm its fitment with any aftermarket products that can change your steering angle.

Q. Do I need to get longer brake lines, or can I use the OEM lines?

A. While you can retain your OEM brake lines, they will likely be at full extension. We recommend replacing your OEM brake lines with longer braided brake lines.

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely.

We recommend this product be installed by a competent person. Instructions are given with every order where available, however, If you would like a copy prior to ordering, you're welcome to contact us: Go to Contact Page
