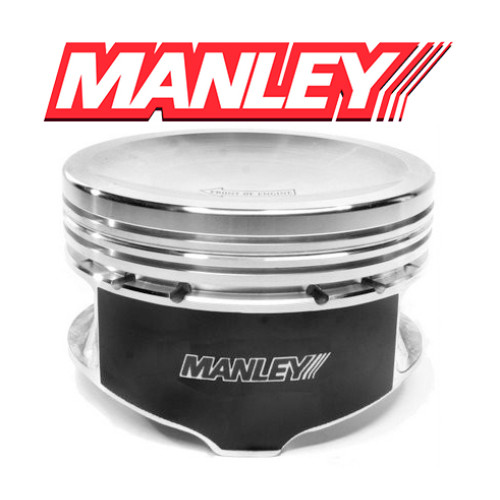

PLATINUM SERIES PISTONS

Subaru

· EJ257 WRX STi

2618 high strength material; Lightweight design with offset wrist pin for quiet start-ups

2.500” x .180” wall Premium Chrome Moly pin (Standard Series) included P/N 42346

Pressure balance groove

Will accommodate +1mm valve sizes

Premium Steel top rings with Napier seconds and round wire locks included

Recommended piston clearance: .003” for mildly boosted and .0035” for highly boosted measured .850” (79/83mm stroke) and 1.100” (75mm stroke) from the bottom of the oil ring

Part numbers-

612000C-4 Manley 04+ Subaru WRX STi (EJ257) STD Stroke 99.5mm STD Bore 8.5:1 Dish Piston Set with Rings

612001C-4 Manley 04+ Subaru WRX STi (EJ257) STD Stroke 99.55mm +.05mm Bore 8.5:1 Dish Piston and Ring Set

612002C-4 Manley 04+ Subaru WRX STi (EJ257) STD Stroke 99.75mm +.25mm Bore 8.5:1 Dish Piston Set with Rings

612005C-4 Manley 04+ Subaru WRX STi (EJ257) STD Stroke 100mm +.5mm Bore 8.5:1 Dish Piston Set with Rings

612007C-4 Manley Subaru EJ257 100.25mm Bore +.75mm Over Size Bore 8.5:1 CR Dish Piston Set with Rings

VIP Motorsport is an official Dealer of Manley Performance in the UK & Europe. Our stock is directly linked with Manley Performance USA, if the item is out of stock with us it could take up to 10 working days to arrive with you. Contact us for exact stock.
