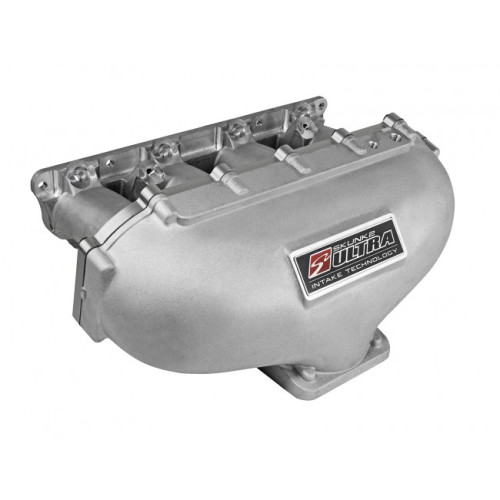

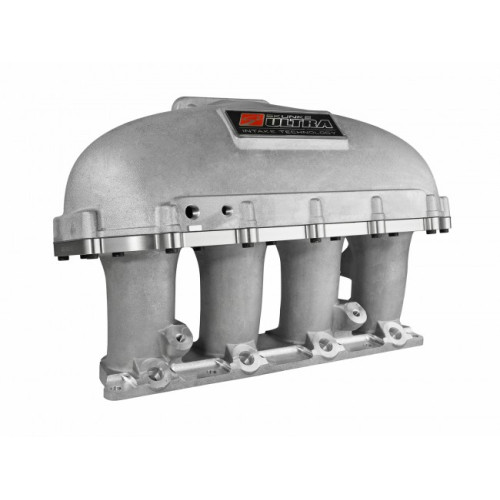

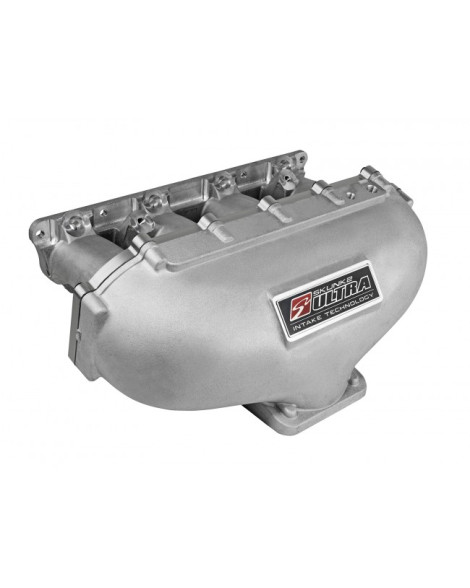

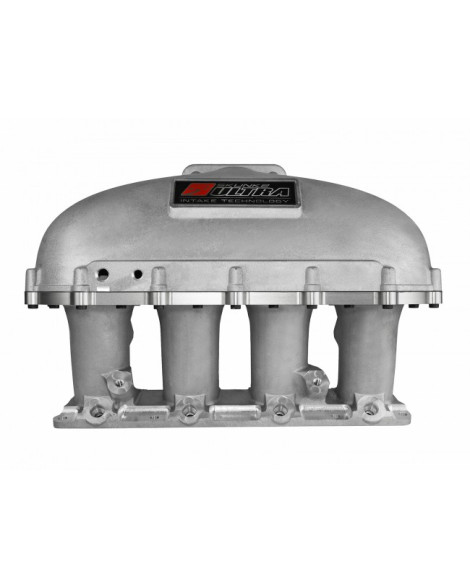

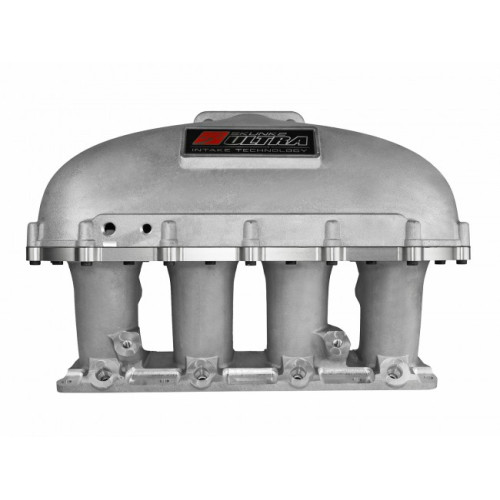

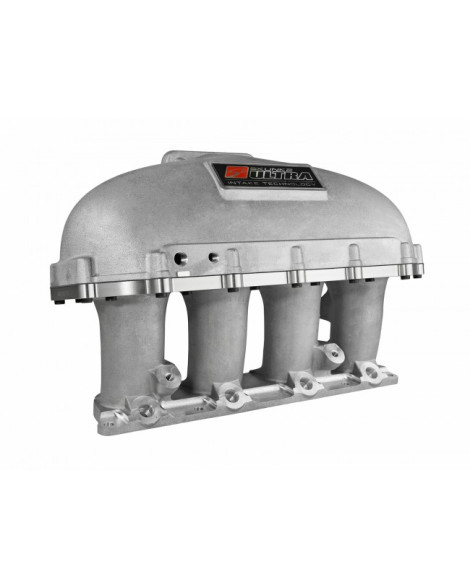

Skunk2 Ultra Race Centerfeed Intake Manifold for Honda K-Series - 307-05-8080

Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the '02-'05 Civic Si and '02-'06 RSX/ RSX Type S, and/ or any swap using the K20A/ K20A2/ K20Z1/ K24A1 engines or cylinder heads has finally arrived!

The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.

FEATURES:

Modular 3pc. Design w/ Removable Plenum

5.0L Plenum Volume**

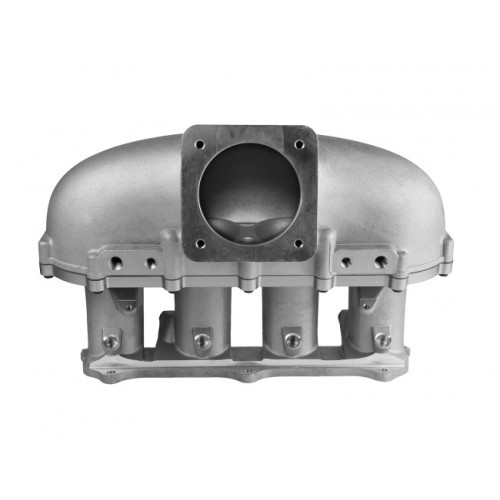

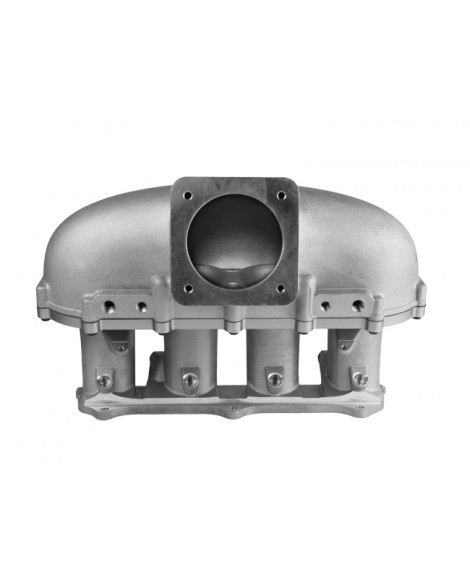

90mm Throttle Body Flange - Std. 5.0L Ford Pattern

6.0” Tapered Hi-Velocity Runners

Raised 87mm Velocity Stacks

Generously Cast Runner Walls for Porting

Provisions Secondary Fuel Rail & Injectors

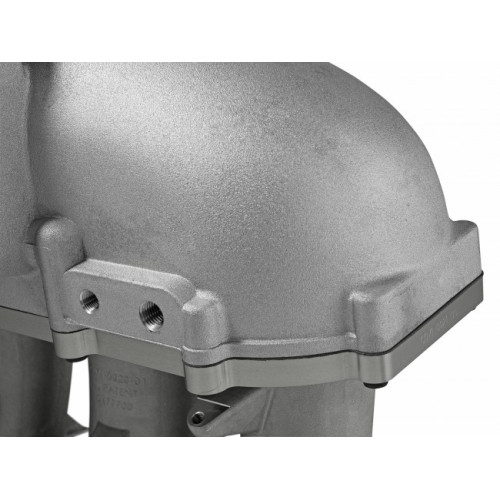

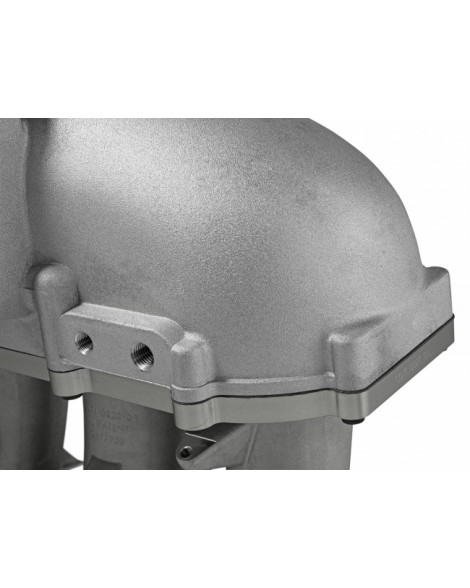

3 x 1/8” NPT and 3 x 1/4” NPT Accessory Ports

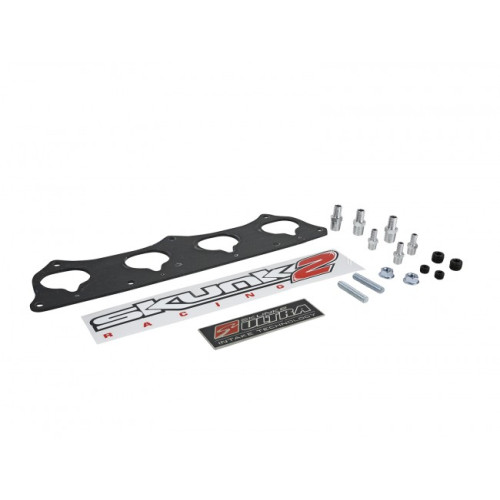

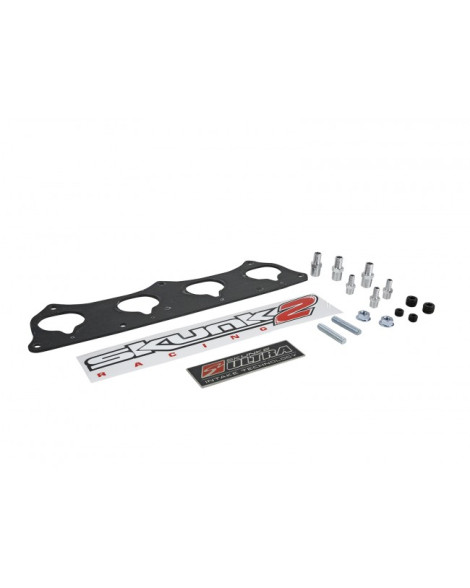

Hi-Grade Mounting Hardware

Thermal Gasket Included

Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes

**Optional Billet Aluminium Plenum Spacers Available in 1L or 2L Sizes

US Patent: D677700

Fitment

2002 - 2005 Honda Civic (2.0L Si K20A2 Style)

2002 - 2006 Acura RSX (2.0L Base/Type S K20A2 Style)

2004 - 2006 Acura TSX (2.4L Base K20A2 Style)

Notes

The K Series Ultra "Street" Manifold uses the EARLY PRB/ PRC style cylinder head and throttle body mounting flange pattern but can be installed on the LATE RBC/ RBB style cylinder heads through the use of an aftermarket Water Bypass Adapter and associated throttle body or throttle body adapter.

RACE APPLICATIONS ONLY - NOT INTENDED FOR STREET USE

5.0 Liter > High Horsepower N/A and Forced Induction Applications to 600HP

6.0 Liter > 600-1000HP

7.0 Liter > 1,000HP Up

 US Patent: D677700

VIP Motorsport is a UK & European Dealer of Skunk2 Racing products. Our stock is directly linked with Skunk2 USA, if the item is out of stock with us it could take up to 3 weeks to be received. Contact a member of the team for an accurate eta.
