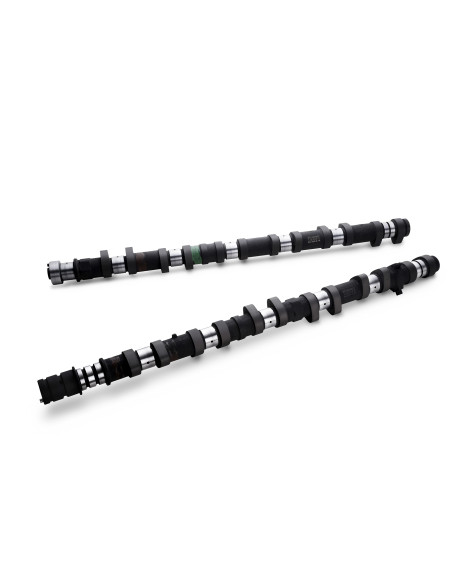

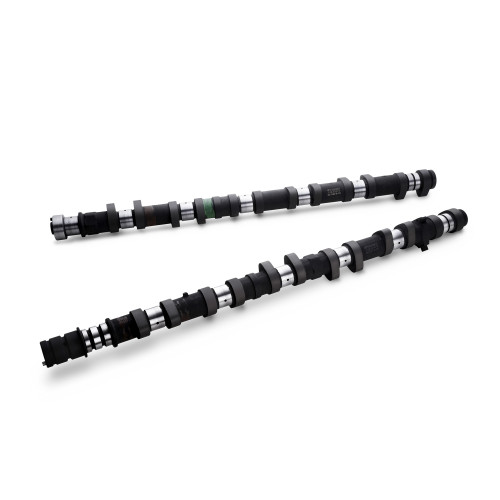

TOMEI CAMSHAFT SET PONCAM 1JZ-GTE VVT-i 260-8.90/9.10 (Previous Part Number 143071)

DURATION

260

LIFT (MM)

IN – 8.90

EX – 9.10

PART NUMBER

TA301A-TY04A

MAX VALVE LIFT (MM)

IN - 8.70

EX - 8.80

MAX CAM LIFT (MM

IN – 8.90

EX – 9.10

COLD VALVE CLEARANCE (MM) (+0.01)

IN – 0.20

EX – 0.30

VALVE TIMING CENTER LINE

IN – 119

EX – 112

STOCK VALVE SPING COMPATIBILE

YES

STOCK VALVE LIFTER COMPATIBLE

YES

'VALC' profile features- Velocity, Acceleration, Lift, Control

Optimized 'velocity' and 'acceleration'.

Designed for high power setups.

Optimizes engine performance.

Higher lift than other profiles of the duration.

Reduced stress/wear on the valve train.

The VALC profile allows the valves to open faster and for longer. This translates to faster lift and increased area under the 'lift curve' (see fig. ①)

which in turn generates more power. (Greater area under the 'lift curve' = greater air intake)

Unlike the valve opening, the VALC profile ensures that the valves close at a slower rate, helping to prevent common valve train related issues.

With a conventional direct-acting valve train, the maximum lift is usually determined by the size/diameter of the valve lifter. Selecting a high-lift camshaft without taking this into consideration often results in the camshaft lobes travelling beyond the surface of the valve lifter. This causes the lobe to make contact with the edge of the lifter, damaging both components over time. （see fig. ②）

Therefore, the ideal performance orientated high-lift camshaft needs to have a profile that maximizes lobe travel on the lifter without exceeding the outer edge.

VALC profile camshafts have achieved this ideal by deliberately reducing the maximum cam velocity to limit lobe travel on the lifter surface.　（Maximum cam velocity = lobe travel distance on lifter)　

Compared to standard profile camshafts of the same lift, VALC profile camshafts are able to then then off-set the difference for even greater lift/performance gains.
