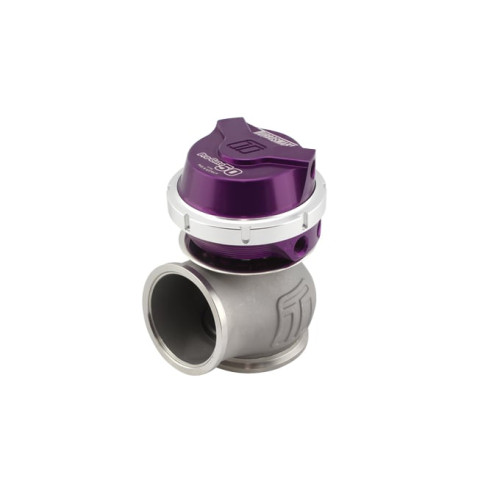

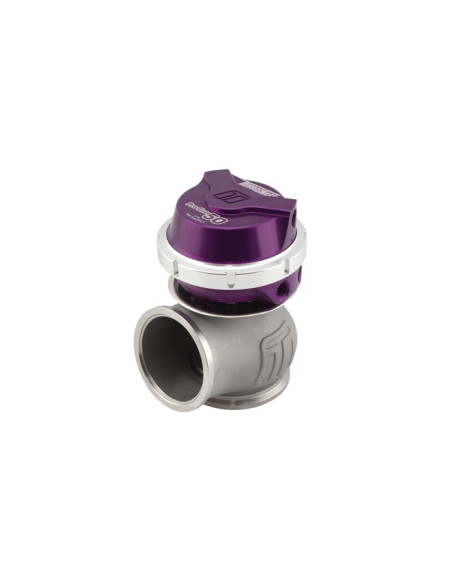

Turbosmart GenV ProGate50 14psi External Wastegate Purple TS-0554-1013

TS-0554-1013

The GenV WG50 ProGate50 External Wastegate is a Motorsport-proven, cost-effective 50mm external wastegate – The Highest Flowing 50mm External Wastegate in the World! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In

Black, Blue, Red, Purple and Sleeper Colours

Wastegate Position Sensor Optional Upgrade

Compressed Gas (ex: Co2) Version

eWG (Electronically Actuated) Version

Features

Class Leading Thermal Performance

Class Leading CFD Driven & Bench Validated Flow Performance

Class Leading Fatigue Resistance

Optional Liquid Actuator Cooling

Optional Position Sensor Available Seperately

Rotatable / Clockable Actuator Housing

50mm V-Band Fitment

Nitronic 60 Valve Guide & High Temp 347 SS Body

17-7 PH Stainless Steel Springs

Strap Type V-band clamps

WHAT’S IN THE BOX?

GenV Wastegate unit

All Springs Included

3,5,7.14psi (1 Inst. As per Description)

Locking Collar Tool

GenV SS316 Valve seat

Strap Type V-Bands

Inlet and Outlet Weld Flanges

Hose Tail and Blank Fitting Kit

Turbosmart Decal

FAQs

What is the first rule of boost control?

Ensure you have an over-boost cut-out. This safety feature is built into all factory, aftermarket & programmable ECUs. Make sure it is set at a sensible & reasonable limit. Increasing the boost will put more load on your engine, and there is another tune-related factory you must always consider. If in any doubt, speak with a professional tuner/calibrator.

Can I use this on any turbocharged engine?

External Wastegates are used on vehicles fitted with turbochargers that do not have an internal wastegate actuator. External wastegates in most instances are a custom fitted item and require modifications to the factory exhaust manifold, or a custom / specifically manufactured manifold to suit an external wastegate.

What is a GenV Wastegate?

A GenV Wastegate is a 5th Generation External Wastegate from Turbosmart. Turbosmart released the GenV range at the SEMA Show in 2017 and used several features never before seen on a wastegate including rotating actuator housing, ceramic isolators, multi-angle machined valve seats and interchangeable actuator housings.

Do I have to use the liquid cooling ports?

No. The GenV External Wastegate boasts a number of design features which means it can tolerate higher temperatures for longer than it’s peers. The liquid cooling is simply there in case you wish to use it, or are one of the very few who need to.

Why Does the Actuator housing Rotate?

So you can route your reference hoses any way you like. The GenV external wastegate range is designed with an infinitely clock-able actuator housing so that the shortest, most convenient, and most suitable (temperature, etc.) route can be setup for the reference lines.

How do I change the springs?

You will need the locking collar tool supplied in the box and you will also need to apply physical force down on the top cap of the actuator. Applying force counteracts the preload applied with these are assembled in the diaphragm and is a design feature of the product. Attempting to unlock the collar without this force is likely to damage the collar and potentially the actuator.

What size are the reference ports?

1/8NPT. Both the liquid cooling and the boost control reference ports are 1/8NPT. The GenV External Wastegates are delivered with a full hose tail and blanking fitting kit which will get you going, however you’re welcome to use adaptors for AN or push lock fittings for more advanced installs.

This is ‘X’ psi, but I want to run a different amount of boost than that – Which gate should I get?

The pressure rating in the description of a GenV external wastegate is the base mechanical pressure and we including all other springs in the box. You have base mechanical spring options from 3psi up to 26psi. Note however this is just the lowest the gate can be setup for and with manipulation of the reference signal via a boost controller, you can generally achieve 2-3X the base pressure.
