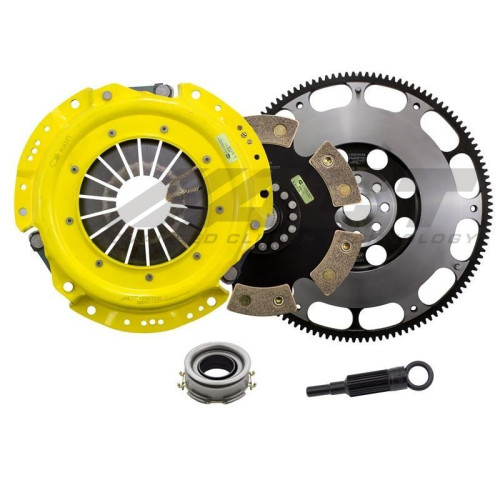

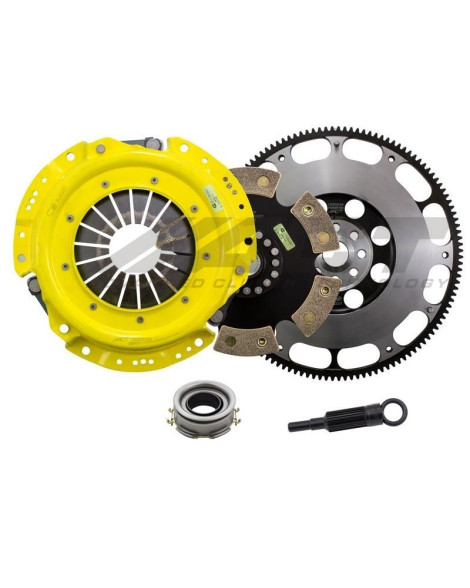

SB8-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle;

Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;

Recommended Use: Recommended for race use only;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

NOTE: Conversion kit-Includes ACT Streetlite flywheel. Must use ACT Flywheel (included in kit).

Item Description

HD/Race Rigid 6 Pad

Product Weight (lbs.)

23.9

Torque Capacity (ft/lbs.)

349

Torque Capacity Over OE

107%

Disc Material

Ceramic

Friction Surface Diameter (Inches)

8.8

Friction Surface Diameter (mm)

224

Input Shaft Diameter (Inches)

1

Spline Count

24

Pad Quantity

6

Disc Type

Rigid Race Disc

Flywheel Included

600700

Pressure Plate Type

Heavy Duty

Flywheel Tooth Quantity

124

Flywheel Type

Prolite

Flywheel Mounting Hole Quantity

8

Warranty

12 Months
