Killer B Motorsport Ultimate Subaru FA20 BRZ/FR-S Oil Pickup

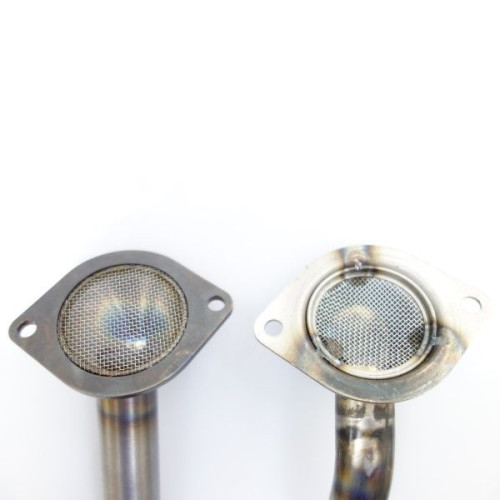

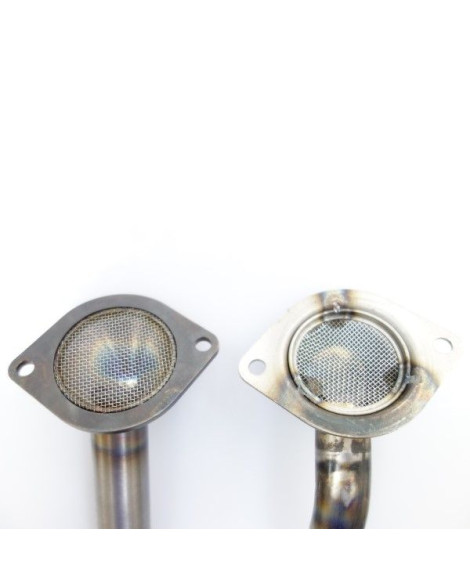

The OEM pickup screen is crimped in a retainer and that assembly is spot welded into the pickup ‘can’. There are a couple of flaws with this process. One is that the screen is creased where the retaining ring is crimped over it. The other is that spot weld process embrittles the screen. We pushed on the screen of new OEM pickups, and several popped wire strands, without a lot of effort.

We are known for making the best Subaru Performance Oiling Products money can buy, so addressing this was right up our alley. Of course, our own spin on improvements, besides the obvious, had to be made to assure set-it-and-forget-it reliability that comes with our products. A means for improving performance was taken advantage of during the design process as well.

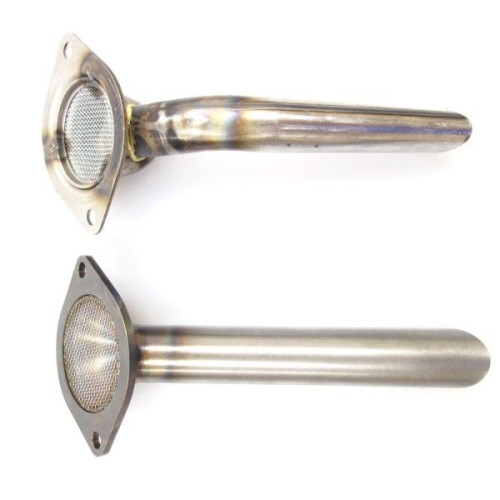

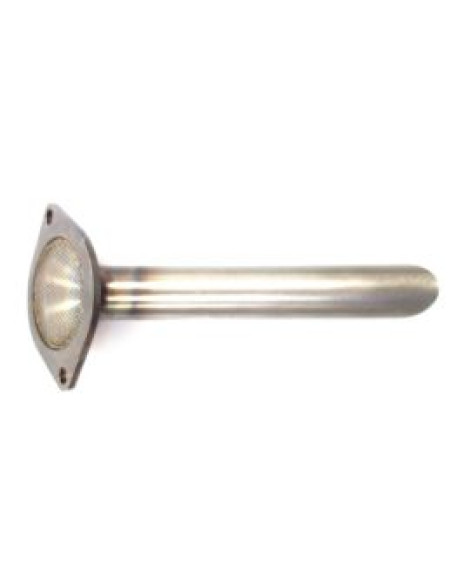

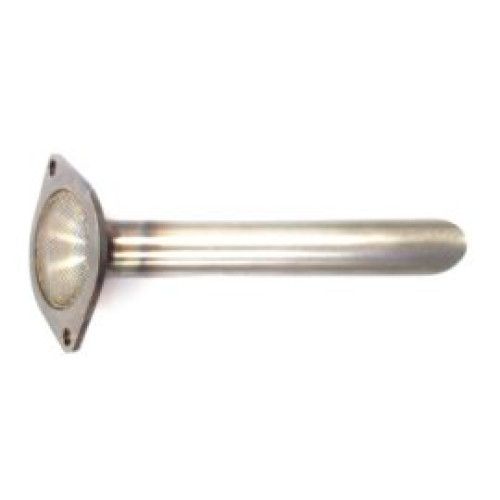

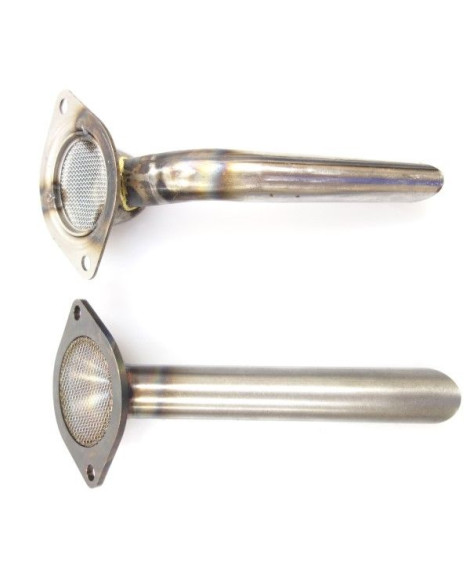

The obvious big change is that the tube has no bend. No bend means no restriction, and even better coming from the OEM tube because it uses a more restrictive pinch bend. The ID of the tube has been increased, and so has the thickness. The angle of the tube points it directly at the inlet into the block. Like our EJ engine Ultimate Oil Pickup, this one also uses a screen to match the OEM spec opening size of the mesh. We also use a higher strength screen material. The screen area has been increased over 31%, which reduces the restriction and stress on the screen. Our screen is lightly pressed and welded into place, assuring that the wire does not get stressed or heat damaged. TIG welding throughout assures proper weld penetration and quality. The material is 4130 Alloy Steel to provide a further increase in strength over the brazed stamped steel OEM version. The units have been pressure tested to 150psi over the face of the screen without issue.

Item Code: 10015OP-BF

Killer B Motorsport has many years of being at the forefront of Subaru Oiling system performance. Improvements have been made to the oil pickup design to improve the oil flow characteristics and address the screen design to eliminate the process that causes screen failure with the OEM units.

• Tube features larger inside diameter and thicker wall for increased flow capacity and strength.

• No bends provide maximum flow potential (OEM unit uses a restrictive punch bend).

• Screen flow area increased by over 31% to improve flow, reduce restriction.

• Made from 4130 High Strength Alloy Steel for never fail reliability

• Hand TIG welded

• Made in the USA

NOTE: This part number ONLY works with BRZ/FR-S.

VIP Motorsport is a UK & European Stockist of Killer B Motorsport. If the product isn’t in stock with us we recommend you contact one of the team for a lead time.
