DBA Rear XP Brake Kit for Subaru Impreza WRX/STI 02-07 / Forester SG STI 04-08 DBA4655S-10-1521XP

DBA4655S-10-1521XP - Brake Kit (2x DBA 4655S-10 + DB1521XP)

Ideal for spirited driving

High quality, high performance to suit your requirements

One box includes 1 set per axle

Technical Information

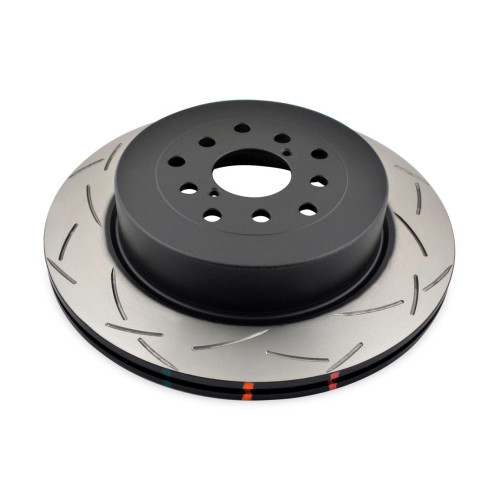

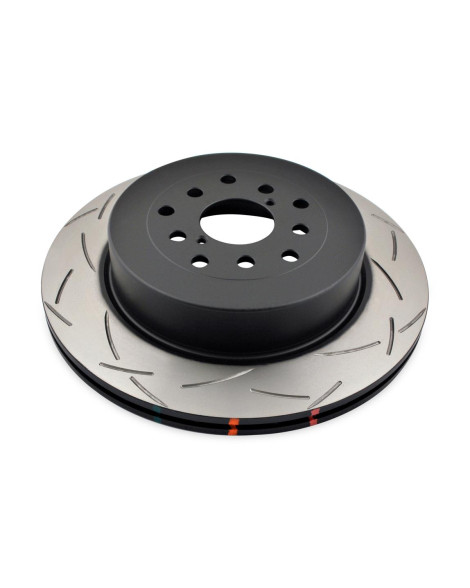

DISCS

Diameter [mm]: 316

Disc Vent: Kangaroo Paw

Number of Holes: 10

Inner Diameter [mm]: 58

Minimum Thickness [mm]: 18

Thickness [mm]: 20

Height [mm]: 67.5

Pitch Circle [mm]: 5x100 / 5x114.3

Stage: Stage 4

ECE R90 number: E11*90R02/06*60525*00

Total Weight [kg]: 8.16

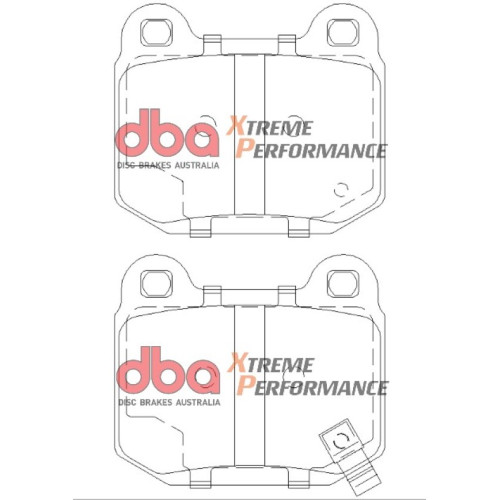

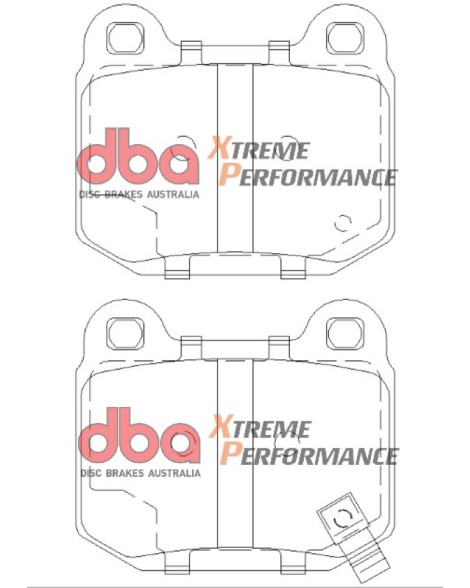

BRAKE PADS

Width [mm]: 76.6

Height [mm]: 65.4

Pad thickness [mm]: 13.4

FMSI: 7859-D961

OEM: 26696FE000

Axle: Rear

ECE R90 Number: E11 R90-02A01584/53179

Total Weight [kg]: 0.98

CONFIRMED APPLICATIONS

SUBARU    Forester    2004-2008 2.5 Turbo STi 320BHP (2004-2008)       Rear

SUBARU    Impreza    2002-2005 2.0 Turbo WRX STi 100 pcd (2002-2005)          Rear

SUBARU    Impreza    2005-2006 2.0 Turbo WRX STi 114 pcd (2005-2006)          Rear

SUBARU    Impreza    2006-2007 2.5 Turbo WRX STi (2006-2007)    Rear

SUBARU    Impreza RB320  2006-2007 2.5 Turbo (2006-2007) Rear

DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance.

Specifications:

Street performance and occasional track day suitable

Perfectly matching and extensively tested combination of disc and pad

Save 5% of the price when purchasing Combo

DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system

DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite

DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions

DBA pads: Semi-metallic, carbon fibre friction material

DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)

DBA pads: Excellent high temperature performance

DBA pads: Optimal braking consistency up to 550℃ (1022℉)

Direct fit, no changes required over stock set up

One combo - one manufacturer = no warranty issues

Contents of Kit DBA4655S-10-1521XP

DBA4655S-10 - 4000 series - T3

DB1521XP - Brake Pads Xtreme Performance ECE R90 certified | Rear Axle

VIP Motorsport is an official Dealer of Disc Brakes Australia (DBA Brakes) in the UK! Contact us for a lead time.
