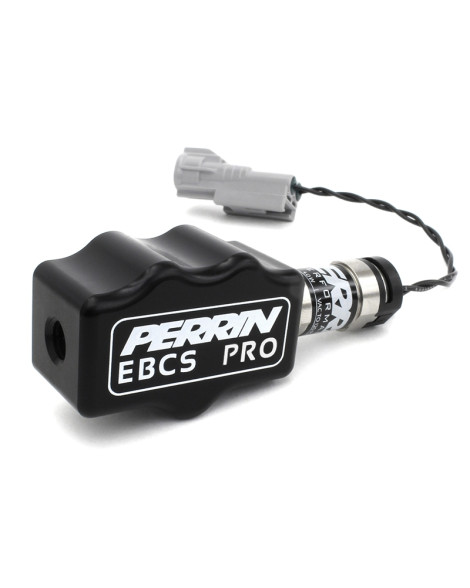

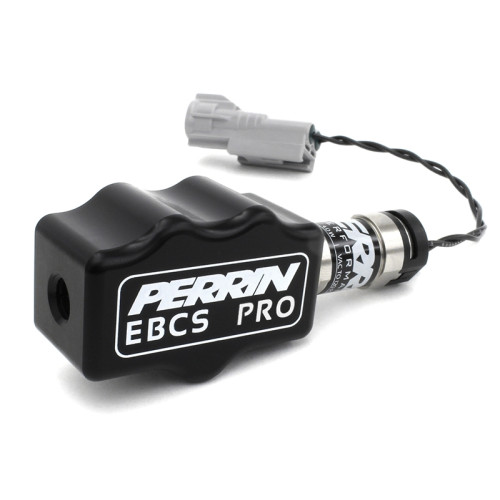

PERRIN PERFORMANCE EBCS PRO BOOST CONTROL SOLENOID

The PERRIN Electronic Boost Control Solenoid (EBCS) Pro is designed to control today's high performance turbochargers with its ultra-fast response and bomb-proof design.

CUSTOM HIGH PERFORMANCE SOLENOID

The custom made solenoid coil and valve are made specific to PERRIN specs. This allows the valve to operate almost two times faster and flow almost 50% more than competitors' designs. The EBCS Pro also works with OEM ECU calibrations and reduces overboost conditions that commonly occur, all without causing Check Engine Lights.

To fully utilize the EBCS Pro, an ECU recalibration is required. Contact our tech department at

DIRECT PLUG & PLAY

Our OEM male connector is specific to all Subaru applications. As for 2015-2018 WRX models, the PERRIN male OEM connector is specific to the 2015-2018 WRX (FA20 DIT). This ensures a properly sealed and solid connection between the EBCS Pro and the ECU. Unlike competitors' products that require additional parts and labor, our unique design saves time and makes for a cleaner and simpler install.

SOLENOID CONSTRUCTION

The main valve body of the EBCS Pro is made of corrosion-resistant, nickel-plated brass with proper seals to withstand the temperatures and oils seen in a boost control system. Other features unique to the PERRIN EBCS Pro:

Short piston stroke

Balanced piston, immune to different boost levels

Very few parts

Solenoid isolated from contaminated air

Extremely long life

Operates in vacuum up to 120 psi

ANODIZED ALUMINIUM MULTI-PORT BODY

The body of the EBCS Pro is made of 6061 aluminum so it can easily survive under-hood temperatures. The unique PERRIN configuration allows the EBCS Pro to be ultra-compact and work with multiple boost control system setups (internal and external wastegates). This allows the part to adapt to your ever-changing setups.

NICKEL PLATED CONNECTORS

High quality nickel plated brass fittings resist corrosion and will not break. For race professionals the EBCS Pro will also accept AN fittings for the best connection possible.

INCLUDES EVERYTHING YOU NEED

Every EBCS Pro comes with the proper amount of vacuum hose and the proper fittings and mounting plates for your specific year, make, and model Subaru, making for a quick and easy installation process.

SPECS

Height 2.92"

Width 1.125"

3 Ports 1/8-27 npt

Electrical 2 Wire Plug

CE EU Consumer Safety

UL429 USA Standards for valves

ROHS EU Restrictions of Lead

PART NUMBERS

ASM-TAC-727 = 2015-2018 WRX & 2014-2019 Forester XT

ASM-TAC-729 = 2002-2007 WRX & 2004-2007 STI

ASM-TAC-730 = 2008-2014 WRX

ASM-TAC-731 = 2008-2020 STI

IN THE BOX

ASM-TAC-727

(1) PERRIN EBCS Pro assembly

(1) 5/32" ID Vacuum hose

(1) Bracket for washer bottle

(2) 5/32" Nickel barb 1/8NPT, 90 degree

(1) 5/32" Nickel barb 1/8NPT, straight

(1) M8 Button head screw

(2) M8 Flat washers

(1) 3/16"-3/16" Plastic connector

(1) M5 Short arm hex key

(4) Zip ties

Warranty & Instructions

ASM-TAC-729

(1) PERRIN EBCS Pro assembly

(1) 5/32" ID Vacuum hose

(1) Bracket for washer bottle

(1) 5/16" Nickel barb 1/8NPT, straight

(2) 5/32" Nickel barb 1/8NPT, straight

(1) M5 Short arm hex key

(1) M8 x 10 Button head SS screw

(1) M8 Flat washer SS

(1) M6 x 25 Button head socket cap screw SS

(1) M6 x 18 Fender washer SS

(1) M4 Short arm hex key

(10) Zip ties

Warranty & Instructions

ASM-TAC-730

(1) PERRIN EBCS Pro assembly

(1) 5/32" ID Vacuum hose

(1) Bracket for washer bottle

(1) 5/16" Nickel barb 1/8NPT, straight

(2) 5/32" Nickel barb 1/8NPT, straight

(1) M5 Short arm hex key

(2) M8 x 10 Button head SS screw

(1) M8 Flat washer SS

(10) Zip ties

Warranty & Instructions

ASM-TAC-731

(1) PERRIN EBCS Pro assembly

(1) 5/32" ID Vacuum hose

(1) Bracket for washer bottle

(1) 5/16" Nickel barb 1/8NPT, straight

(2) 5/32" Nickel barb 1/8NPT, straight

(1) M5 Short arm hex key

(1) M8 x 10 Button head SS screw

(2) M8 Flat washer SS

(1) 1/4"-1/4" Straight plastic connector

(10) Zip ties

Warranty & Instructions

COMPATIBILITY

Note: Fits most turbo-charged cars

Select fitment above.
