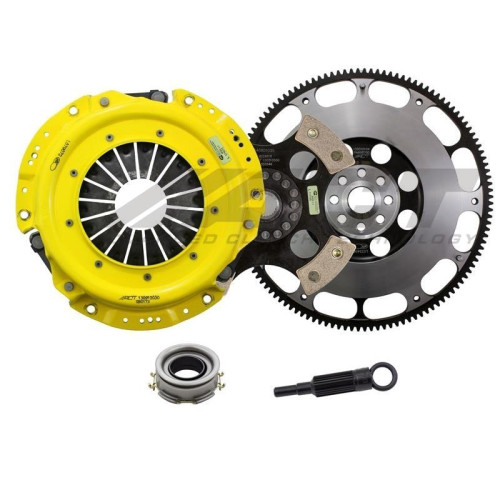

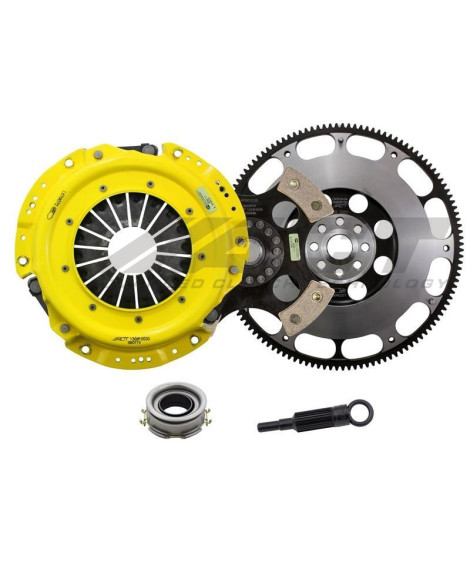

SB8-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle;

Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear;

Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance;

Recommended Use: Recommended for race use only;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

Item Description

XT/Race Rigid 4 Pad

Product Weight (lbs.)

23.4

Torque Capacity (ft/lbs.)

449

Torque Capacity Over OE

166%

Disc Material

Ceramic

Friction Surface Diameter (Inches)

8.8

Friction Surface Diameter (mm)

224

Pad Quantity

4

Spline Count

24

Warranty

12 Months

Input Shaft Diameter (Inches)

1

Disc Type

Rigid Race Disc

Flywheel Tooth Quantity

124

Pressure Plate Type

Xtreme

Flywheel Included

600700

Flywheel Type

Prolite

Flywheel Mounting Hole Quantity

8

Must use ACT Flywheel (Included in kit)

VIP Motorsport is an official UK stockist of ACT Clutches in the UK. Our stock is directly linked with ACT in the USA, if the item is out of stock with us it could take up to 2 working weeks to arrive with you. Contact us for definite stock.
