Pedders Heavy Duty Load Carrying and Towing Suspension Kit. With Foam Cell Shocks & Assembled Front Struts. Toyota Hilux MK8 & MK9 803239

Pedders Heavy Duty Load Carrying and Towing Suspension Kit. With Assembled Struts. Toyota Hilux

Improved load carrying and towing ability and ground clearance.

Do you use your Hilux for load carrying and/or towing?

Then Pedders Suspension have the solution for you.

This kit features our excellent Pedders TrakRyder Foam Cell shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our first level heavy duty kit and is designed primarily to raise the vehicle and improve its load carrying and towing ability. If your Hilux currently sits low at the rear when towing or load carrying, but you still also operate in the unladen condition, then this kit offers a significant improvement compared to the standard vehicle.

This kit improves the load carrying ability compared to the standard vehicle. On a completely unladen vehicle, you may see a slight increase in ride stiffness. If ride quality is your main aim rather than load carrying, please see our Improved ride kit, 803238.

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

The fully assembled Ezifit struts in this kit allow quick and easy fitment to your vehicle. These feature a Pedders Foam cell shock, Pedders spring as well as new top mount bump stop and boot. No need to use spring compressors or re-use any old parts. Simply bolt straight on.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

1.75 Inch Lift Kit

Improved load carrying and towing

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 40mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: 805mm with 18 inch wheels

Rear: Approx. 40mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

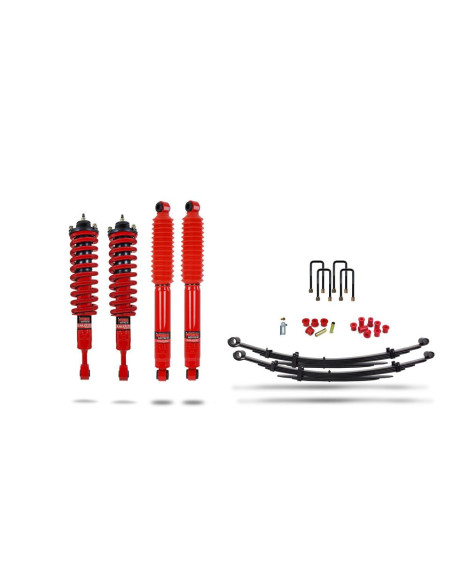

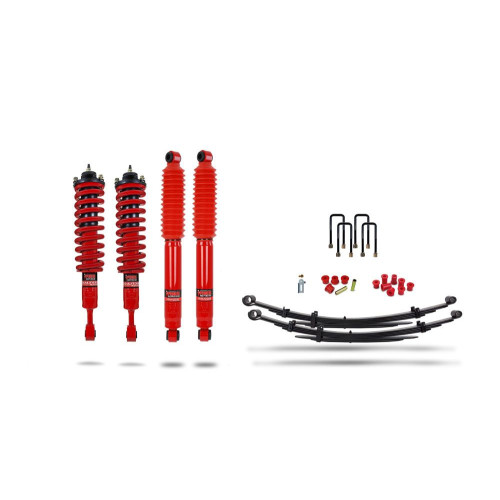

Contents of Kit 803239 (Pedders Part Numbers)

807205 x 2 - Pedders Foam Cell Ezifit Front Strut

264012 x 2 - Pedders Heavy Duty Rear Spring

151241 x 2 - Pedders Foam Cell Rear Shock

EP8338 x 1 – Pedders Urethane Leading Eye Bushes

EP8339 x 1- Pedders Urethane Lower Shackle Bushes

5056 x 1 – Headlight Levelling Bracket

4382 x 4 - Pedders U bolt

Confirmed Applications

Toyota       Hilux 4WD MK8 2015-Onward GUN125R Extra Cab Cab-Chassis

Toyota       Hilux 4WD MK8 2015-Onward GUN125R Single Cab Cab-Chassis

Toyota       Hilux 4WD MK8 2015-Onward GUN125R Double Cab Tub Body

Toyota       Hilux 4WD Mk9 2021-Onward Double Cab Tub Body

Toyota       Hilux 4WD Mk9 2021-Onward Extra Cab Cab-Chassis

Toyota       Hilux 4WD Mk9 2021-Onward Single Cab Cab-Chassis

VIP Motorsport is an Official Dealer of Pedders suspension in the UK. Image may not be accurate. Contact us for a lead time.
