Pedders 1.75 Inch Suspension Lift Kit. Toyota Hilux MK8 & MK9 803228

Pedders 1.75 Inch Suspension Lift Kit for Toyota Hilux

Improved looks and ground clearance.

Are you looking to raise your Toyota Hilux? Then Pedders Suspension have the solution for you. This kit features our excellent Pedders TrakRyder shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.

This kit is our Entry level Lift kit, and is designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options.

This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

For those using the vehicle in a continuously laden state, please consider one of our heavy duty options.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key Features

1.75 Inch Lift Kit

Increased Off-Road Ground Clearance

Sintered Iron Piston Shocks with Large 35mm Bore

Premium Grade Steel Coils

All backed by our 2 year / 40,000km warranty

Vehicle Height Information

Front: 805mm with 18 inch wheels

Rear: Approx. 40mm higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

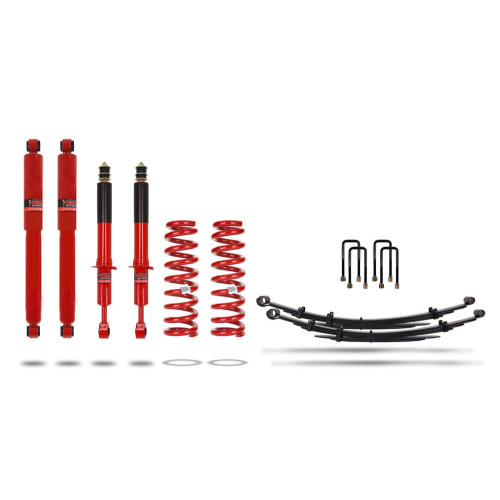

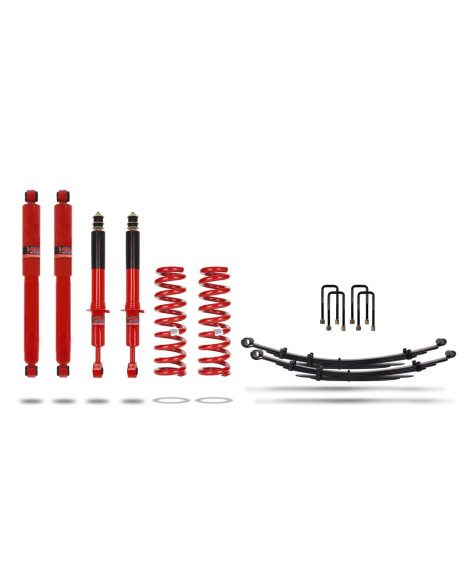

Contents of Kit 803228

5056 - 2016 HiLux SR5 Auto-Adjust Headlight Bracket

7828 - Pedders Trakryder Coil Spring

9145 - Pedders Trakryder Gas 4x4 Shock

144301 - Pedders Gas Sports Ryder Spring Seat

263012 - Pedders Trakryder Leaf Spring

434008 - Pedders U-Bolt 60 x 13 x 190mm

EP8338 - Urethane Leaf Spring Eye Bush (2PKT)

EP8339 - Urethane Leaf Spring Eye/ Shackle Bush (8PKT)

Confirmed Applications

Toyota       Hilux 4WD MK8 2015-Onward GUN125R Extra Cab Cab-Chassis

Toyota       Hilux 4WD MK8 2015-Onward GUN125R Single Cab Cab-Chassis

Toyota       Hilux 4WD MK8 2015-Onward GUN125R Double Cab Tub Body

Toyota       Hilux 4WD Mk9 2021-Onward Double Cab Tub Body

Toyota       Hilux 4WD Mk9 2021-Onward Extra Cab Cab-Chassis

Toyota       Hilux 4WD Mk9 2021-Onward Single Cab Cab-Chassis

VIP Motorsport is an Official Dealer of Pedders suspension in the UK. Image may not be accurate. Contact us for a lead time.
