Pedders Air Suspension Conversion Kit. Comfort Version. Toyota LC5 / Prado / Landcruiser 120 series 803320

A cost effective solution to your defective air suspension / TEMS system.

Has your air suspension or electronic shocks failed on your LC5? Have you been quoted to repair it?

Then Pedders Suspension have the solution for you. The Pedders Suspension Air Suspension Conversion Kit. (comfort version)

This kit features all the parts you need in order to convert your LC5 to conventional suspension and do away with the troublesome and expensive air suspension. Included in the kit are 4 new coil springs, 4 new shock absorbers, bump stops and spring seats as well as a set of instructions which detail how to go about the conversion including details on how to ensure that no warning lamps are displayed after fitment.

This kit will return the vehicle to its original height.

Your vehicle has a switch in it to adjust the ride comfort, comfort through to sport. This particular kit is for those who normally have the vehicle in the softest setting, and don’t regularly carry heavy loads or tow heavy trailers. If you tend to use the firmer settings, or carry or tow heavy loads, please consider one of our other kits, either 803181 or 803183.

These components replace the original items. However, modifications to the vehicle are required, primarily to disable the electronics system which used to control the TEMS suspension system. Full instructions on how to do this are included in the kit. No specialist equipment is required for this.

After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

Cost effective solution

Everything you need included

Full instructions

Premium Grade Steel Coils

All backed by our 2 year / 25,000 mile warranty

Vehicle Height Information

Front: 760mm with 16 inch wheels.

Rear: 770mm with 16 inch wheels.

Notes: Heights should be measured as shown in the secondary picture.

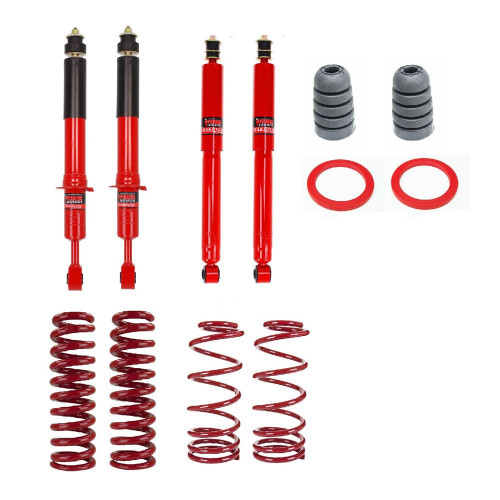

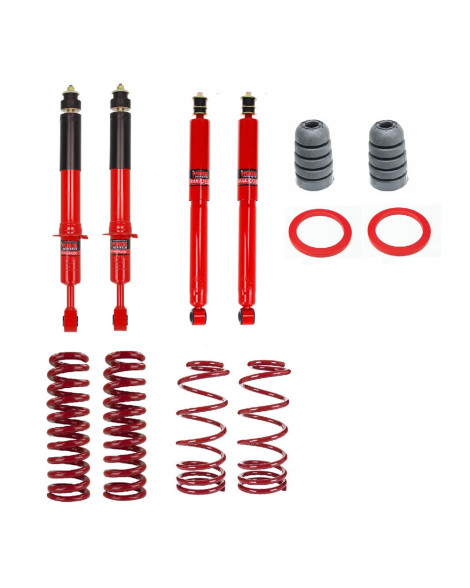

Contents of Kit 803121 (Pedders Part Numbers)

144302 x 2 - Pedders Trakryder Front Shocks

7428 x 2 - Pedders Front Spring

9147 x 2 - Pedders Trakryder Gas 4x4 rear Shocks

270134 x 2 - Pedders Rear Spring

5899 x 2 - Bump Stop

EP8316/20 x 2 - Spring seat adaptor

Instructions for fitment

Confirmed Applications

Toyota       Landcruiser       120 series, LC3 LC5 09/2002 - 10/2009 models

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
