Pedders 4 Inch Suspension Lift Kit. Toyota Landcruiser 80 Series, ABS fitted models 803096

Confirmed Applications

Toyota       Landcruiser       80 Series 1990-1992, FJ80 & HDJ80

Toyota       Landcruiser       80 Series 1992-98, FZJ80, HDJ80 & HZJ80

Pedders 4 Inch Suspension Lift Kit. Toyota Landcruiser 80 Series, ABS fitted models

When you're after a 4 inch lift kit specifically designed to cater for and improve the articulation of your Landcruiser, you can count on Pedders to provide the right suspension lift kit.

This kit features our excellent Pedders Foam Cell Shocks at the front and rear. Also included are 4 new coil springs and a set of our Rubber Castor correction bushes. Additionally it comes with the necessary anti-roll bar links, brake hoses, panhard rods and other chassis parts. Everything you need to complete the job.

The dimensions quoted assume a standard vehicle. If you have additional equipment on board such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

NOTE: This kit suits RIGHT hand drive vehicles. We can supply also for LEFT hand drive vehicles. Please contact us for details.

These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

4 Inch Lift Kit

Increased Off-Road Ground Clearance

Pedders Foam Cell Shocks

Premium Grade Steel Coils

Full Kit with all required parts

Vehicle Height Information

Front: 4 inches higher than standard.

Rear: 4 inches higher than standard.

Notes: Heights should be measured as shown in the secondary picture.

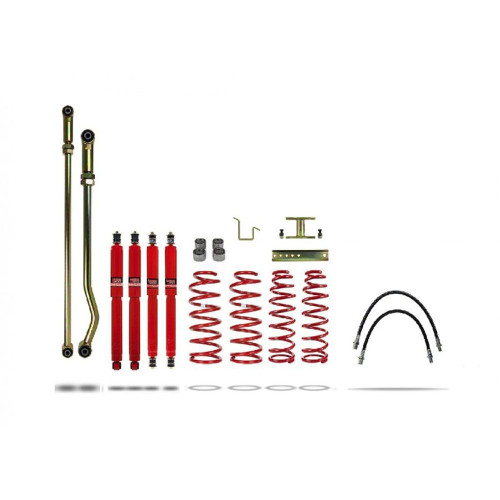

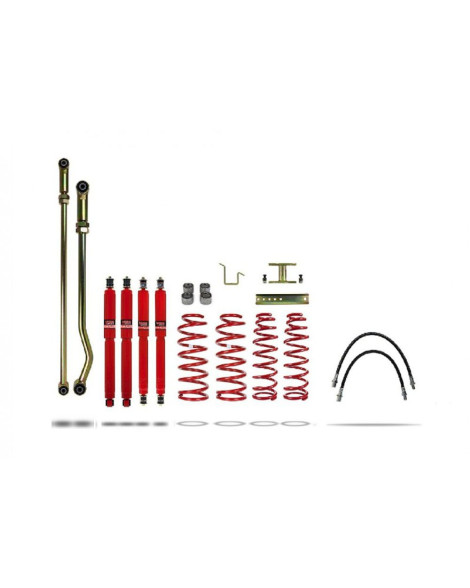

Contents of Kit 803096 (Pedders Part Numbers)

9521LT x 2 - Pedders Long Travel Foam Cell Front Shocks

290080 x 2 - Pedders Front Spring

4231 x 2 - Anti Roll Bar Mount Extension

464610 x 1 - Panhard Rod

9522LT x 2 - Pedders Long Travel Foam Cell Rear Shocks

290081 x2 - Pedders Rear Spring

4232 x 2 - Anti Roll Bar Mount Extension

464611 x 1 – Panhard Rod

5504 x 1 – Extended Brake Hose Kit

5802 x 1 - Pedders Rubber Castor Correction Bush Kit

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
