Pedders AHC Suspension Conversion Kit. Toyota Landcruiser, Amazon / 100 series, 4.7 V8 803200

Confirmed Applications

Toyota Landcruiser 100 Series 1998-2007,HD. FZJ & UZJ100 IFS 4.7 V8

Pedders AHC Suspension Conversion Kit. Toyota Landcruiser, Amazon / 100 series, 4.7 V8

This kit is used to replace the Original AHC suspension system fitted originally by Toyota

The Toyota Landcruiser 100 series is fitted with a suspension system known as AHC (automatic height control) that uses hydraulic fluid in spheres to control the height and comfort of the vehicle.

Whilst undoubtedly very sophisticated, as it ages, problems can develop which are often very expensive to rectify.

Pedders Suspension recognise this and offer a cost effective solution to any problems you may be having

Pedders Suspension Landcruiser HD FZJ & UZJ100 IFS Suspension Conversion kit converts 100 series Landcruiser’s from Hydraulic Suspension to conventional Coil and Torsion bar suspension.

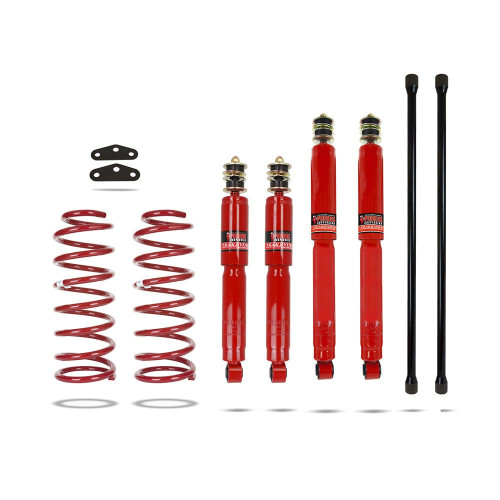

This kit includes a pair of front torsion bars, torsion bar re-inforcing plates, rear coil springs, shocks all round, and a set of instructions on how to disable the system that manages the AHC system so that you do not have any warning lights on completion.

As this kit replaces the AHC system with conventional suspension, we offer different variants to suit different needs and uses.

However, the resulting vehicle heights and levels of ride comfort we have described as best as possible, but with the complexity of the AHC system, and the number of different possible faults, how the vehicle currently drives may bear little resemblance to the “as new” operation.

Kit 803200. Pedders AHC Suspension Conversion Kit.

This kit is for those who use the vehicle empty or lightly laden and/or tow moderate loads. Depending on the condition of your AHC system, this kit may normally raise the vehicle by up to 1 inch. Please see below for dimensions. Again, dependant on the current condition of your AHC system, the ride comfort of this kit maybe slightly firmer than the comfort setting with the AHC system. However, most vehicles are not in optimum condition and so replacement often results in an improvement in ride. Kit 803201. Pedders AHC Suspension Conversion & Lift Kit.

This kit is the same as the above kit 803200, but uses raised rear springs, giving, on average, approx. 2 inches lift.

Kit 803066. Pedders AHC Suspension Conversion Kit. Heavy Duty Load Carrying & Towing.

His kit is for those who regularly carry heavy loads or tow heavy trailers. This kit uses a heavy duty rear shock to better control the loads and forces exerted by the extra weight. Ride comfort when unladen will be firm.

Kit 803071. Pedders AHC Suspension Conversion & Lift Kit. Heavy Duty Load Carrying & Towing.

This kit is the same as the above kit 803066, but uses raised rear springs, giving, on average, approx. 2 inches lift.

This kit is kit 803201. Pedders AHC Suspension Conversion and Lift Kit. Toyota Landcruiser, Amazon / 100 series, 4.7 V8

Please note our vehicle height measurements are based on 16 inch wheels. This does not mean it will only fit cars with 16 inch wheels. The kit WILL fit irrespective of wheel size.

Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.

Key features

Supplied as a kit of components that includes all you need to convert your Landcruiser away from AHC

Cost effective solution to repairing your existing AHC system

The complete kit is a system designed and valved to work together.

Variants to suit all uses.

Vehicle Height Information

Front: Adjustable

Rear: 805mm with 16 inch wheels.

Notes: Heights should be measured as shown in the secondary picture.

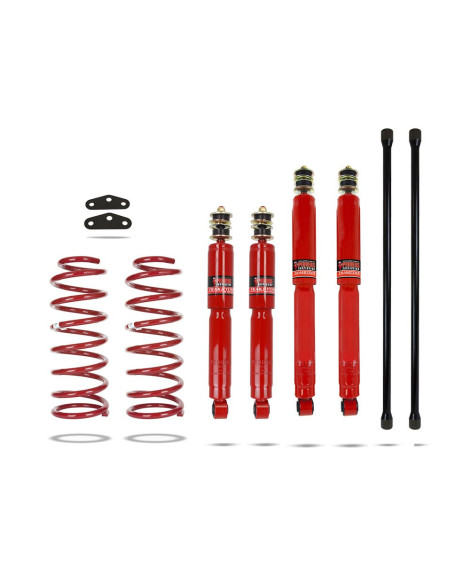

Contents of Kit 803200

4316 - Control Arm Strengthening Bracket

4722 - Pedders TrakRyder Torsion Bar-1160mm

7245 - Pedders Trakryder Coil Spring

9101 - Pedders Trakryder Gas 4x4 Shock

9102 - Pedders Trakryder Gas 4x4 Shock

LC100BP-PED-UK - Rubber Plug

VIP Motorsport is an Official Dealer of Pedders suspension in the UK & Europe. Contact us for a lead time.
