Tomei Expreme TI Full Titanium Muffler Exhaust System for Toyota JZA80 Supra 6M/T 4A/T 93-02

4inch FULL TITANIUM SUPER LIGHTWEIGHT MUFFLER

Application :

JZA80 SUPRA 6M/T 4A/T ’93-’02

PART NUMBER：TB6090-TY03A

SPECIFICATION COMPARISON VS STOCK

TOMEI

MATERIAL TITANIUM

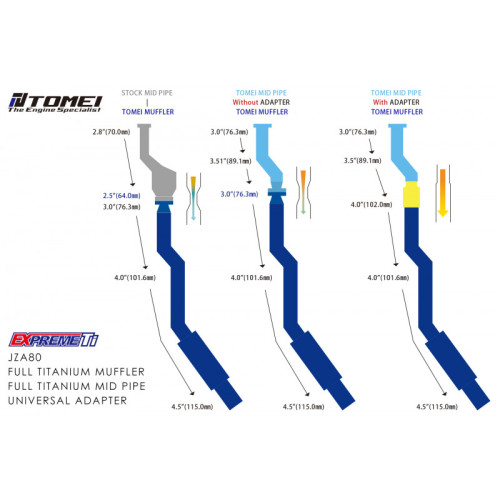

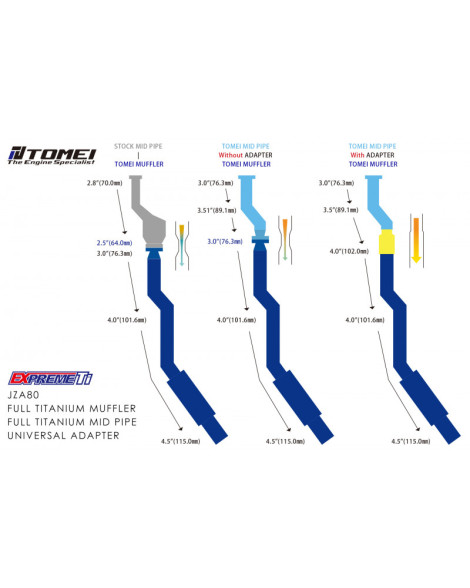

MAIN PIPE A DIAMETER 3.0”(76.3)-4.0”(101.6)

MAIN PIPE THICKNESS 1.0ｍｍ

SILENCER DIAMETER          6.0”(152.0mm)

SILENCER THICKNESS 1.0ｍｍ

EXIT DIAMETER 4.5”(115.0mm)

EXIT THICKNESS 1.0mm

FLANGE THICKNESS 8.0mm

WEIGHT 13.2lbs(6.0kg)

25.8lbs (11.7kg) Weight Reduction!!

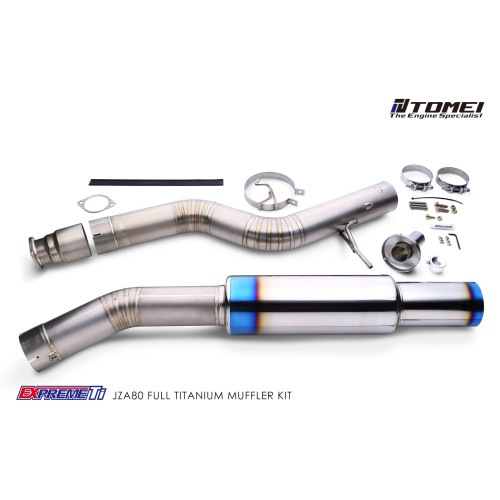

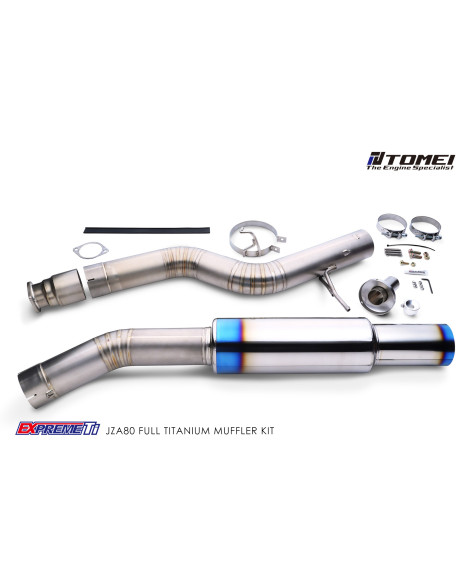

KIT CONTENTS

Adapter Flange φ89　(1)

Main Pipe　(1)

Silencer　(1)

Gasket　(1)

Flange Nut M10　(2)

Flange Bolt M10　(2)

Clamp Band SW2-112　(2)

Spring　(3)

Flange Bolt M8　(1)

Flange Nut M8　(1)

Silencer Band　(1)

Silencer Band Rubber　(1)

Sound reducer ver.2　(1)

Botton Bolt M6　(3)

Flange Nut M6　(3)

Flange Bolt M6　(1)

Hex.wrench　(1)

Zip tie　(1)

Bolt smooth paste　(1)

VIP Motorsport is an official stockist of Tomei Exhausts & Products in the UK & Europe. Our stock is directly linked with Tomei USA, if the item is out of stock with us it could take up to two working weeks to be received.
