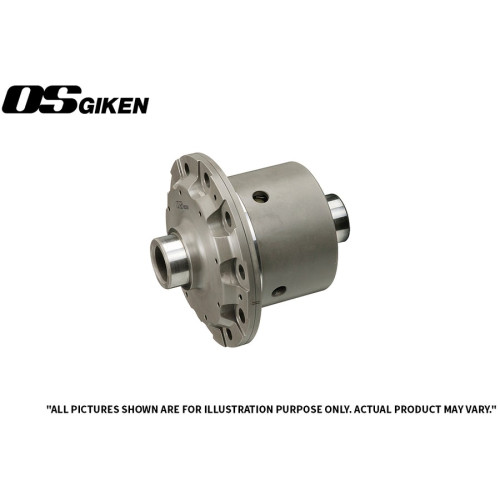

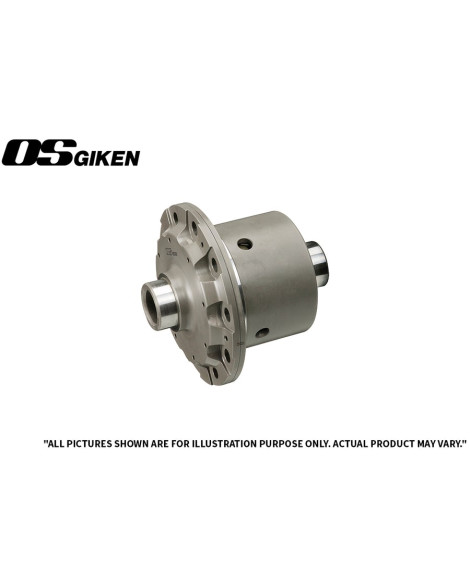

OS Giken SuperLock LSD for Toyota JZA80 Supra (6MT) - TY033-HA

The OS Giken Super Lock LSD uses our patented pressure ring design that allows for smooth, progressive locking. This design is a spline-through-side-gear design that allows for fitment of more friction plates (up to 2x as many as competitors versions).

All components are chemically heat treated for maximum durability

All components are constructed from a high-grade steel alloy

Gears are raw-forged for maximum strength

Clutch disks are precision-machined simultaneously on both sides to extremely tight tolerances resulting in minimal warpage.

LSD case is machined from a single billet piece to ensure uniformity.

The OS LSD standard spec allows for low preload while still retaining a fully progressive 100% lock capability. Operation is quiet and the progressive locking allows for smooth predictable locking. When replacing an open diff, equipping an

OS LSD will completely improve the driving experience while maintaining everyday drivability.

Fitment

Toyota Supra JZA80 - 2JZGTE (220mm ring gear)

Specification

Ramps - 25/38

Lock Timing - 336

Total Plates - 28

Preload - 12S

Installation Notes

Refer to OEM Service Manual for install

PRESSURE RING

Our revolutionary pressure ring houses our patented lock timing system, where springs work in opposition of torque being applied to the LSD. This results in a progressive, smooth, and quiet operation of the clutch discs within the differential. Furthermore, by modifying the spring rate, the rate of which the differential reaches full lock can be adjusted to suit particular vehicle settings and racing styles.

CAM ANGLE

Unlike other manufacturers that utilize modular components, we produce our cams and pressure rings as matching sets. Because the faces of the cams are grounded exactly to match the application area of the pressure ring, torque transfer is smooth and consistent throughout the lock range.

GEARS

The unique “spline-through” side gears allows our LSD to house more clutch discs than other competitors. Also, due to the relatively large size, it provides superior durability and torque transfer.

CLUTCH DISCS

The discs are precision-machined simultaneously on both sides to extremely tight tolerances to reduce flatness deviations and to eliminate the need to perform the tedious “figure 8” break-in period. By using as much as twice as many clutch discs than competing brands, our differential provides superior torque hold, while also reducing the “clunkiness” of traditional clutch-type LSDs. This also results in enhanced durability and reduced wear as torque hold is spread out over a higher amount of friction surfaces.

CASE

The case and all components are constructed from a high-grade steel alloy, and then chemically heat treated for increased durability. The extra rigidity created ensures that the internal components stay within their tight tolerances, allowing the differential to function with watch-like precision.

VIP Motorsport is a UK & European Dealer of OS Giken. If the item is in stock with OS Giken the estimated lead time is 2-3 weeks. However we recommend you contact one of the team for a confirmed lead time.
