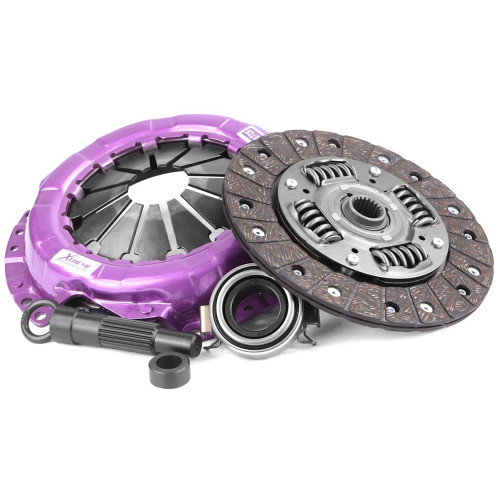

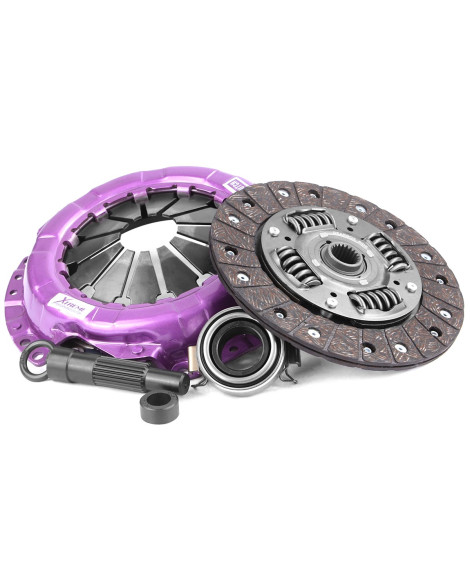

Xtreme Stage 1 Clutch Kit 190ft/lbs KTY22004-1A

Specifications

Flywheel Step (mm) +0.5

Clutch Disc Diameter (mm) 215

Clutch Disc Spline Count 21

Clutch Disc Spline Diameter (mm) 23.8

Disc Type Sprung

Friction Material Organic

Stage 1

Recommended Use Street

Clamping Force % Increase 40%

Torque (Nm) Inc FOS 260

Torque (ftlbs) Inc FOS 190

Aligning Tool Included Yes

Spline Grease Included Yes

Transport Weight (kg) 6.3

CONFIRMED APPLICATIONS

TOYOTA YARIS 2000.03-2005.07 1.5 (NCP13_) 1NZ-FE 1497 Petrol 110 kW 150 BHP (2000.03 - 2005.07)

TOYOTA YARIS 2001.10-2005.09 1.4 D-4D (NLP10_) 1ND-TV 1364 Diesel 55 kW 75 BHP (2001.10 - 2005.09)

TOYOTA YARIS 2003.01-2005.11 1.5 (NCP13_) 1NZ-FE 1497 Petrol 77 kW 105 BHP (2003.01 - 2005.11)

TOYOTA YARIS 2005.08-2012.12 1.4 D-4D (NLP90_) 1ND-TV 1364 Diesel 66 kW 90 BHP (2005.08 - 2012.12)

TOYOTA YARIS 2005.11-2014.12 1.5 (NCP91_) 1NZ-FE 1497 Petrol 80 kW 109 BHP (2005.11 - 2014.12)

TOYOTA YARIS 2010.12- 1.5 (NCP131_) 1NZ-FE 1497 Petrol 80 kW 109 BHP (2010.12 -)

TOYOTA YARIS / VIOS sedan 2007.08-2013.12 1.5 (NCP93) 1NZ-FE 1497 Petrol 80 kW 109 BHP (2007.08 - 2013.12)

TOYOTA YARIS VERSO 1999.08-2002.10 1.3 (NCP20_. NCP22_) 2NZ-FE 1299 Petrol 63 kW 86 BHP (1999.08 - 2002.10)

TOYOTA YARIS VERSO 2000.03-2005.09 1.5 (NCP21_) 1NZ-FE 1497 Petrol 77 kW 105 BHP (2000.03 - 2005.09)

TOYOTA YARIS VERSO 2000.03-2005.09 1.5 (NCP21_) 1NZ-FE 1497 Petrol 78 kW 106 BHP (2000.03 - 2005.09)

TOYOTA YARIS VERSO 2000.09-2005.09 1.4 D-4D (NLP20_. NLP22_) 1ND-TV 1364 Diesel 55 kW 75 BHP (2000.09 - 2005.09)

TOYOTA YARIS VERSO 2002.11-2005.09 1.3 (NCP20_. NCP22_) 2NZ-FE 1299 Petrol 62 kW 84 BHP (2002.11 - 2005.09)

Xtreme Performance - sprung organic kit /-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

Torque capacity 260Nm

Clamp load 620kg 30% Increased over standard

Organic Friction Discs

Heavy Duty Pressure Plate

Kit contains everything you need for a successful installation + accessories

Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

VIP Motorsport is a UK Dealer of Xtreme Clutch. GENERIC PHOTO USED - MAY NOT BE ACCURATE TO KIT RECEIVED. Contact us for a lead time.
